RX100 S8
Upgrade and Maintenance Manual 93
Power supply
6.2 Standard power supply
6.2.1 Replacing the standard power supply unit
6.2.1.1 Preliminary steps
Ê "Locating the defective server" on page 43
Ê "Disabling BitLocker functionality" on page 63
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
6.2.1.2 Removing the defective standard power supply unit

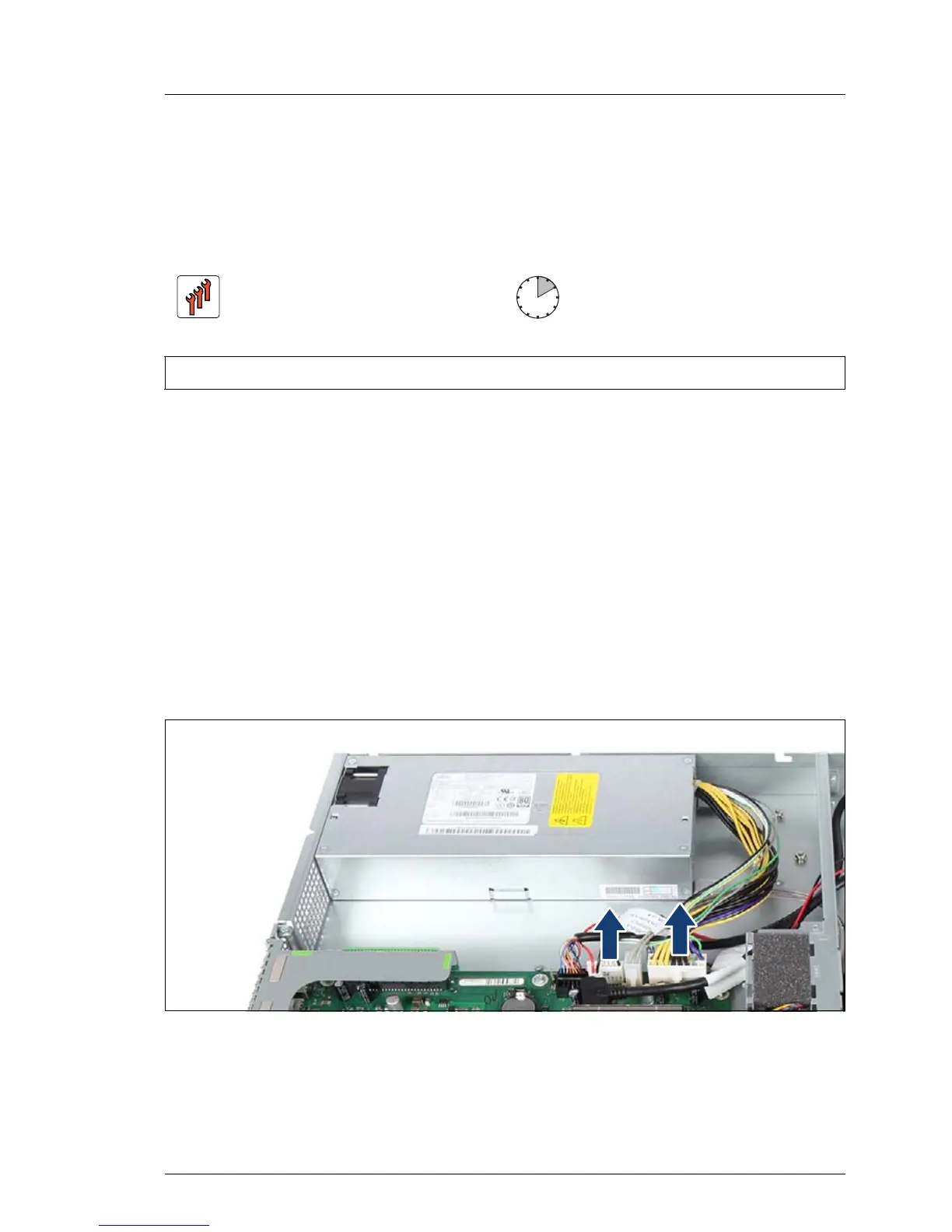

Figure 21: Disconnecting the power cables
Ê Disconnect the two power cables from the system board connectors "PC98"
and "PWR1".
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
