94
Upgrade and Mai
ntenance Manual
RX100
S8
Power supply

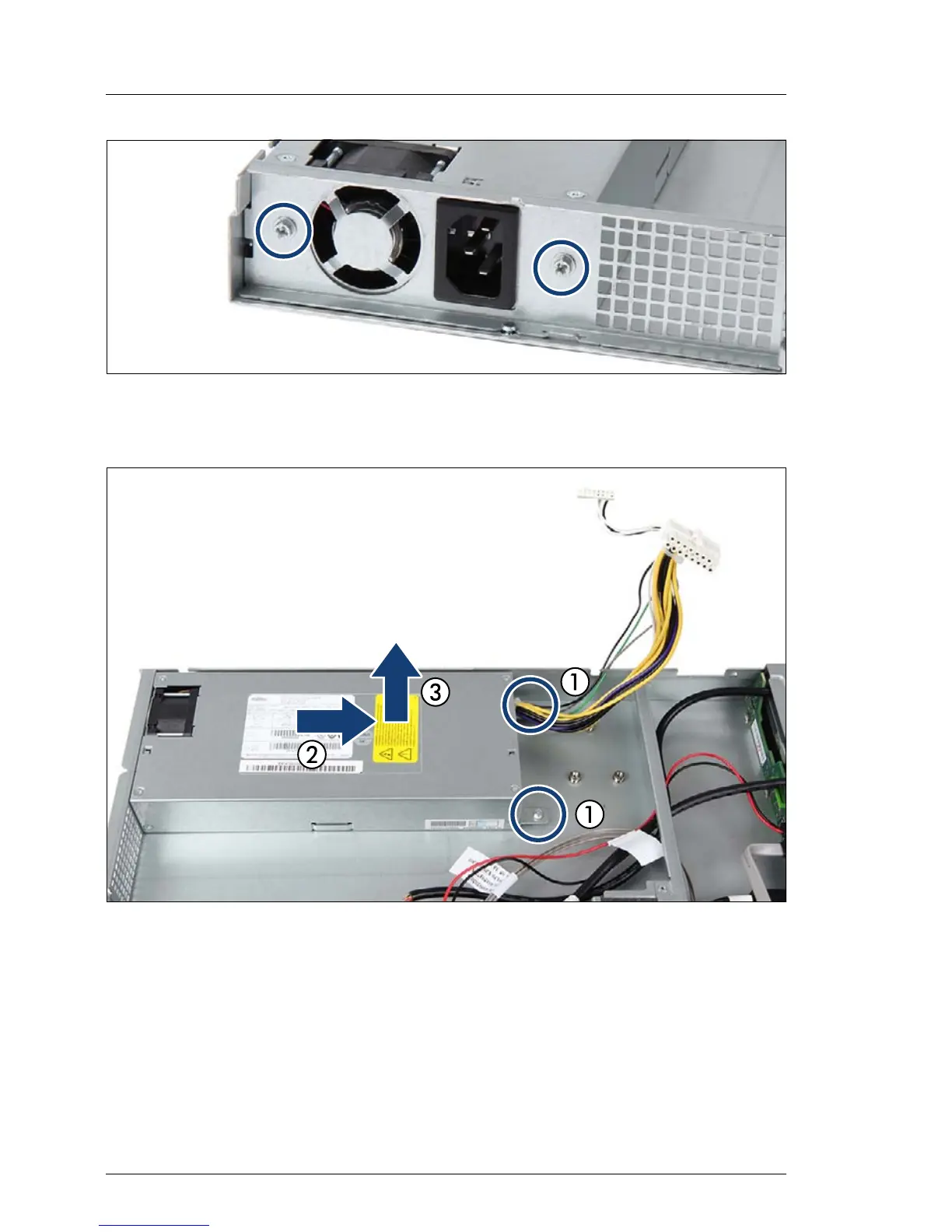

Figure 22: Removing the screws
Ê
Remove the two screws (
see circles).
Figure 23: T
aking out the s
t
andard pow
er supply unit
Ê
Remove the two scre
ws (1).
Ê
Pull the power supply unit a few centimeters
toward the inside
(2).
Ê
T
ake the power s
upply unit out upward
(3).
93
