224 Upgrade and Maintenance Manual
RX100 S8
Optical disk drive
12.2.2 Removing the dummy cover

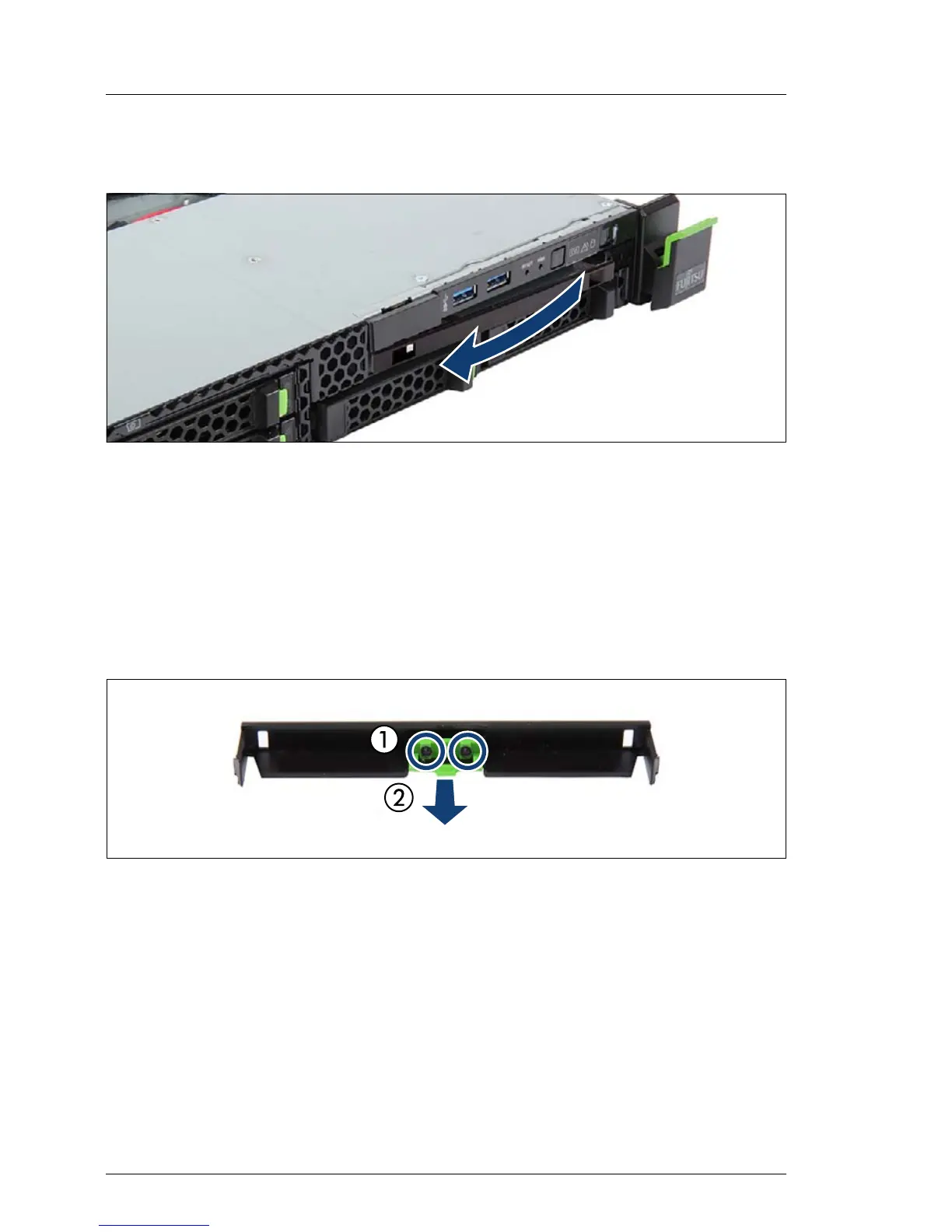

Figure 157: Removing the dummy cover
Ê Pull the dummy cover out of the bay.
V CAUTION!
Keep the dummy cover for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
Figure 158: Removing the ODD latch from the dummy cover
Ê Remove the two screws (1).
Ê Remove the ODD latch (2).
