Fujitsu PRIMERGY RX100 S8 - Configuration with up to 10 HDD;SSD Modules

RX100 S8 Upgrade and Maintenance Manual 117
Hard disk drives / solid state drives
7.2.4 Configuration with up to 10 HDD/SSD modules
Mounting order

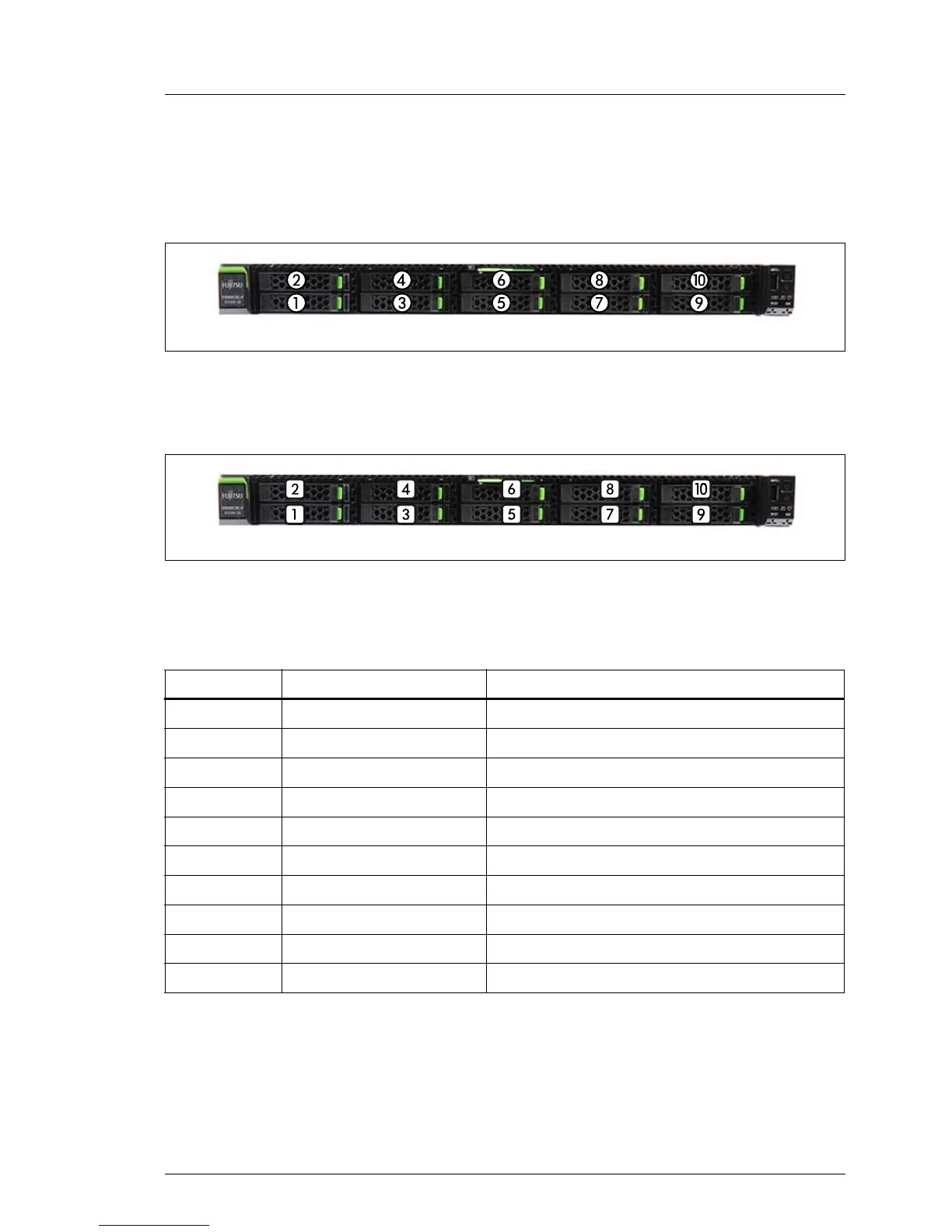

Figure 49: Mounting order with up to ten HDD/SSD bays
HDD/SSD naming scheme
Figure 50: Naming scheme with up to ten 2.5-inch HDDs/SSDs
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD/SSD mounting order:
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)
[5] 4 HDD vendor name (4)
[6] 5 HDD vendor name (5)
[7] 6 HDD vendor name (6)
[8] 7 HDD vendor name (7)
[9] 8 HDD vendor name (8)
[10] 9 HDD vendor name (9)
