Fujitsu PRIMERGY RX100 S8 - Indicators on Hot-Plug Power Supply Units (Slide-In Units)

RX100 S8 Upgrade and Maintenance Manual 289
Appendix
16.2.1.5 Indicators on hot-plug power supply units (slide-in units)

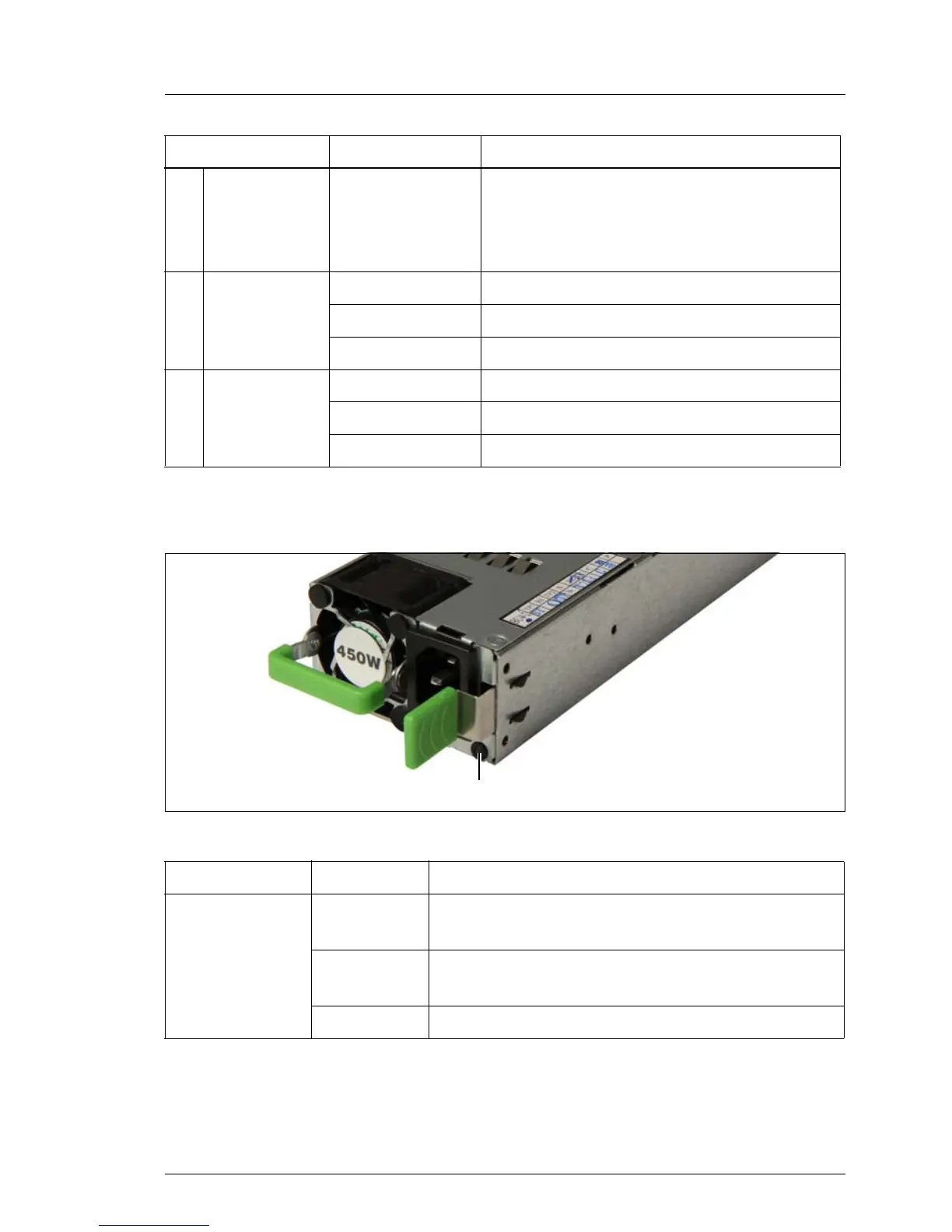

Figure 221: Indicator on the hot-plug power supply unit
1 ID indicator blue on
server has been highlighted using
ServerView Operations Manager, iRMC
web frontend or the ID button on the
front panel for easy identification
2
LAN
link / transfer
indicator
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
3
LAN speed
indicator
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
Indicator Status Description
Status indicator
green
flashing
power supply unit operational (standby mode)
green on
power supply unit operational (server
operating)
orange on power supply unit failure
Indicator Status Description
