Fujitsu PRIMERGY RX100 S8 Upgrade And Maintenance Manual

180 Upgrade and Maintenance Manual RX100 S8
Expansion cards and backup units

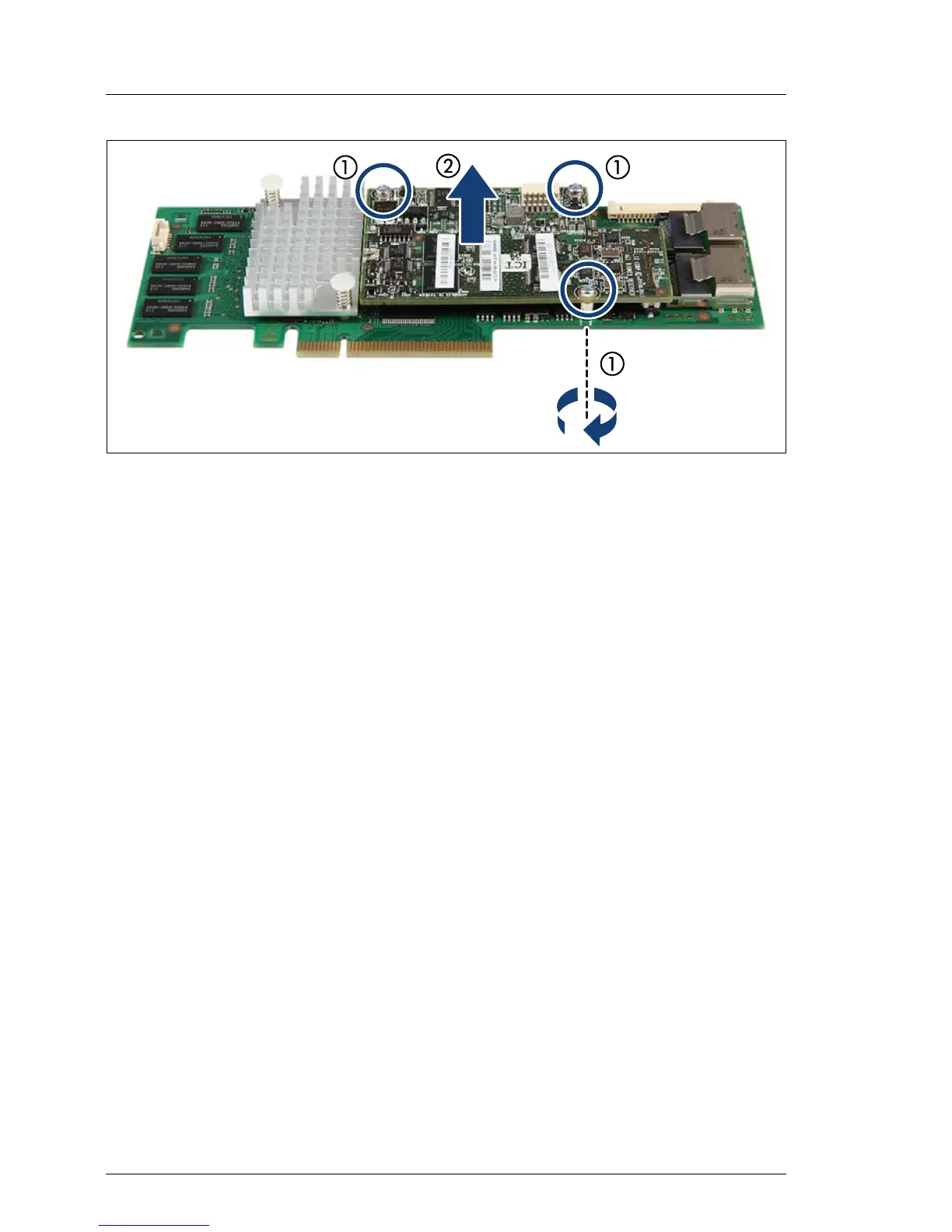

Figure 114: Removing the TFM
Ê Remove the three screws (1).
Ê Remove the TFM (2).
9.4.5.3 Installing the new TFM
Ê Install the TFM as described in section "Installing TFM to the RAID controller
(if applicable)" on page 191.
Ê Connect the FBU adapter cable to the TFM as described in section
"Connecting the FBU adapter cable to the TFM" on page 194.
Ê Install the expansion card as described in section "Installing the expansion
card" on page 172.
9.4.5.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
