RX100 S8
Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives

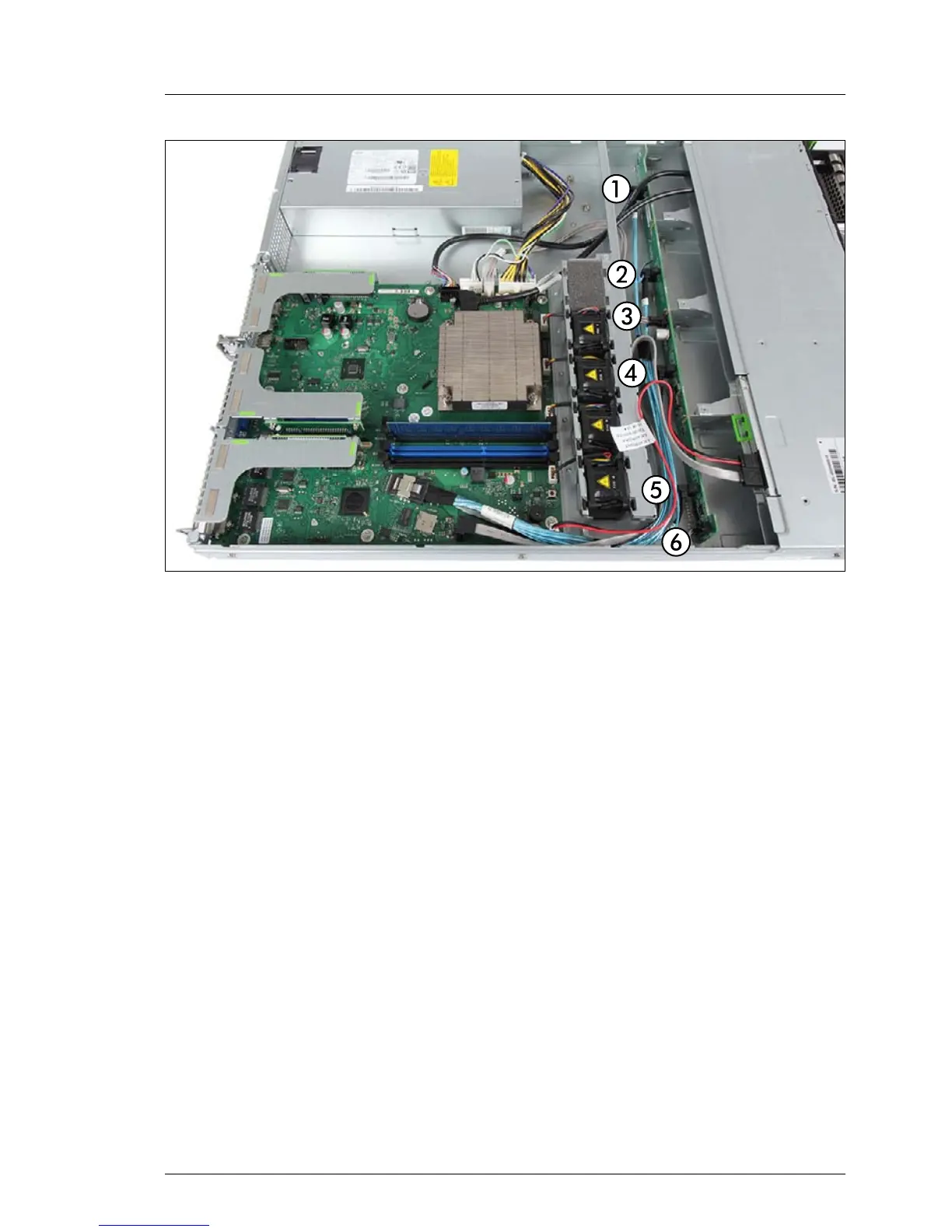

Figure 81: Connecting the cables to the 3.5-inch HDD backplane
Ê Connect the following cables to the HDD backplane:
– SAS/SATA data cable:
(1), (2), (4), (5) to connectors "P1", "P2", "P3", "P4" according to the
length
plug P6 to connector "SGPIO"
– (3) power cable to connector "PWR"
– (6) OOB cable to connector "SMBus" (if applicable)
For the cable plan see section "Cabling" on page 272.
7.3.5.4 Concluding steps
Ê Insert all HDD modules, see section "Installing a 3.5-inch HDD module" on
page 141.
I Make sure that you reinstall the HDD module in the bay it was located
before the HDD backplane replacement.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
