108
Upgrade and Mai
ntenance Manual
RX100
S8
Power supply
6.4.3
Inst
alling the
up
grade kit
Inst
alling the PSU cage

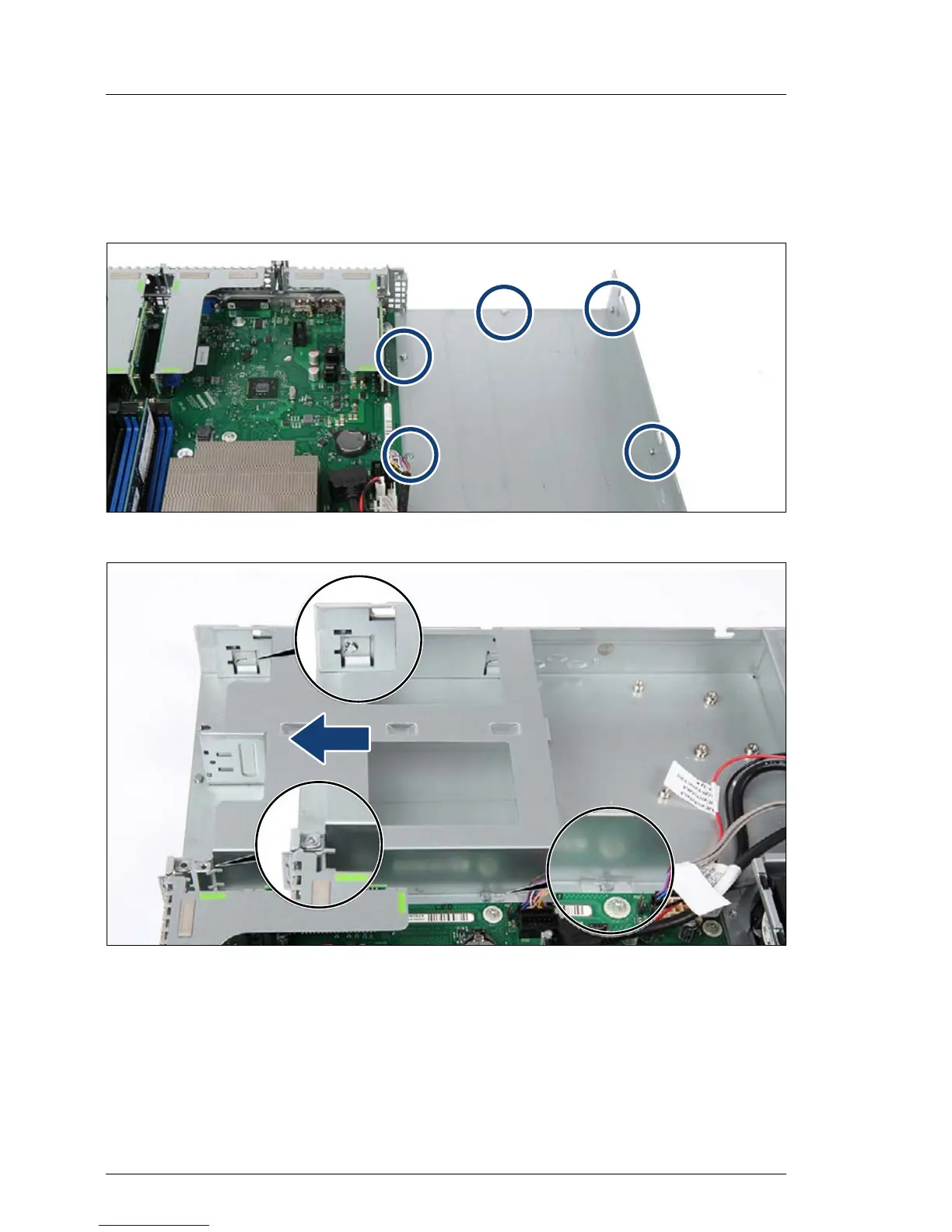

Figure 37: P
ositions of the bolts
Figure 38: Insert
ing the PSU
cage
Ê
Insert the PSU cage in the housing and push it to the rear side.
V
CAUTIO
N!
The PSU cage must engage in the five bolt
s
(positions see
figure
37
).
107
109
