242 Upgrade and Maintenance Manual
RX100 S8
Front panel
Ê Thread the front panel cable through the opening (see figure 177).

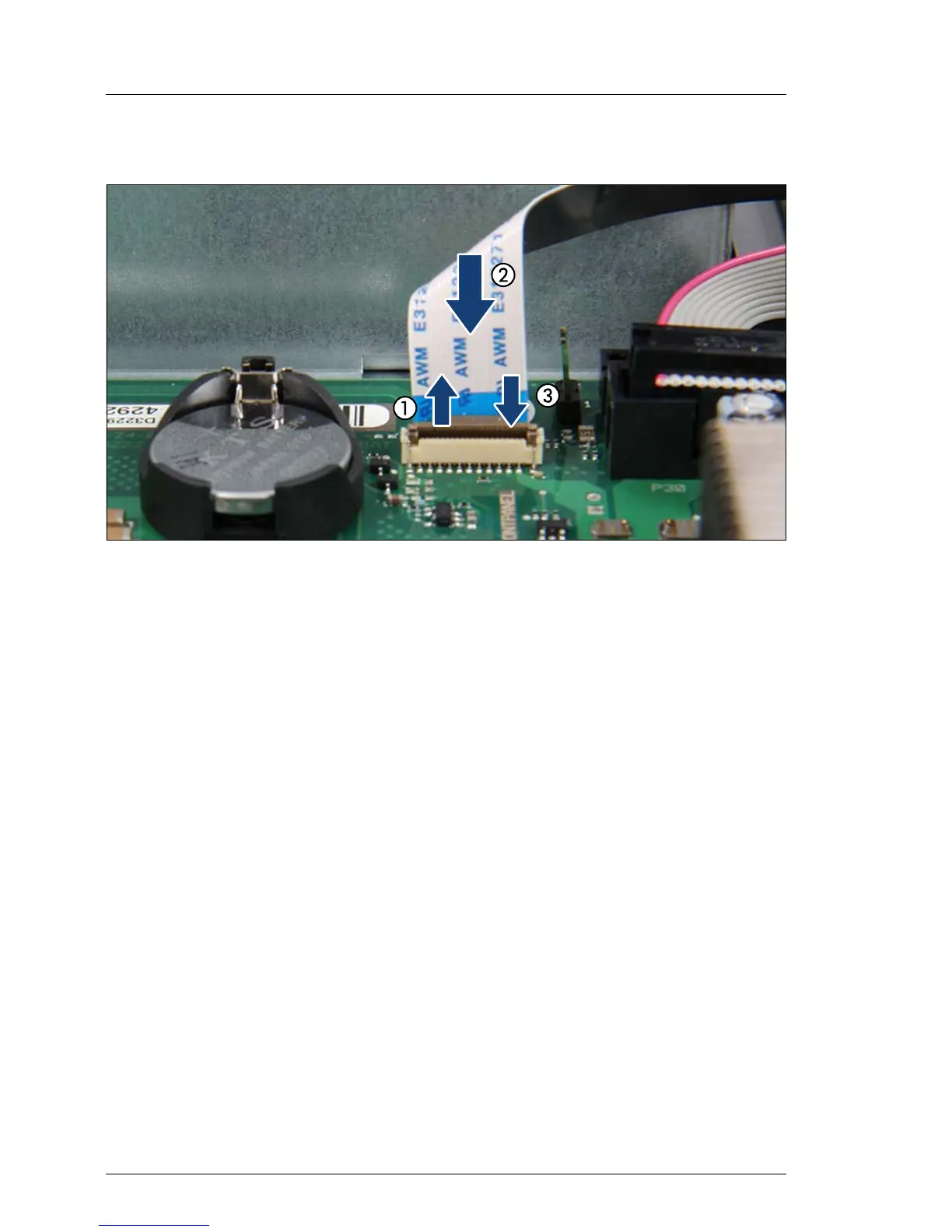

Figure 182: Connecting the front panel cable (B)
Ê Pull up the locking bar (1).
Ê Bend the cable 90 degrees by hand for easier routing.
Ê Insert the front panel cable (2). Please make sure that the front panel cable
is assembled as shown (blue marking).
Ê Press down the locking bar (3).
13.3.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Enabling SVOM boot watchdog functionality" on page 78
Ê "Using the Chassis ID Prom Tool" on page 87
Ê "Switching on the server" on page 57
Ê "Verifying system information backup / restore" on page 73
Ê "Enabling BitLocker functionality" on page 84
