RX100 S8
Upgrade and Maintenance Manual 119
Hard disk drives / solid state drives

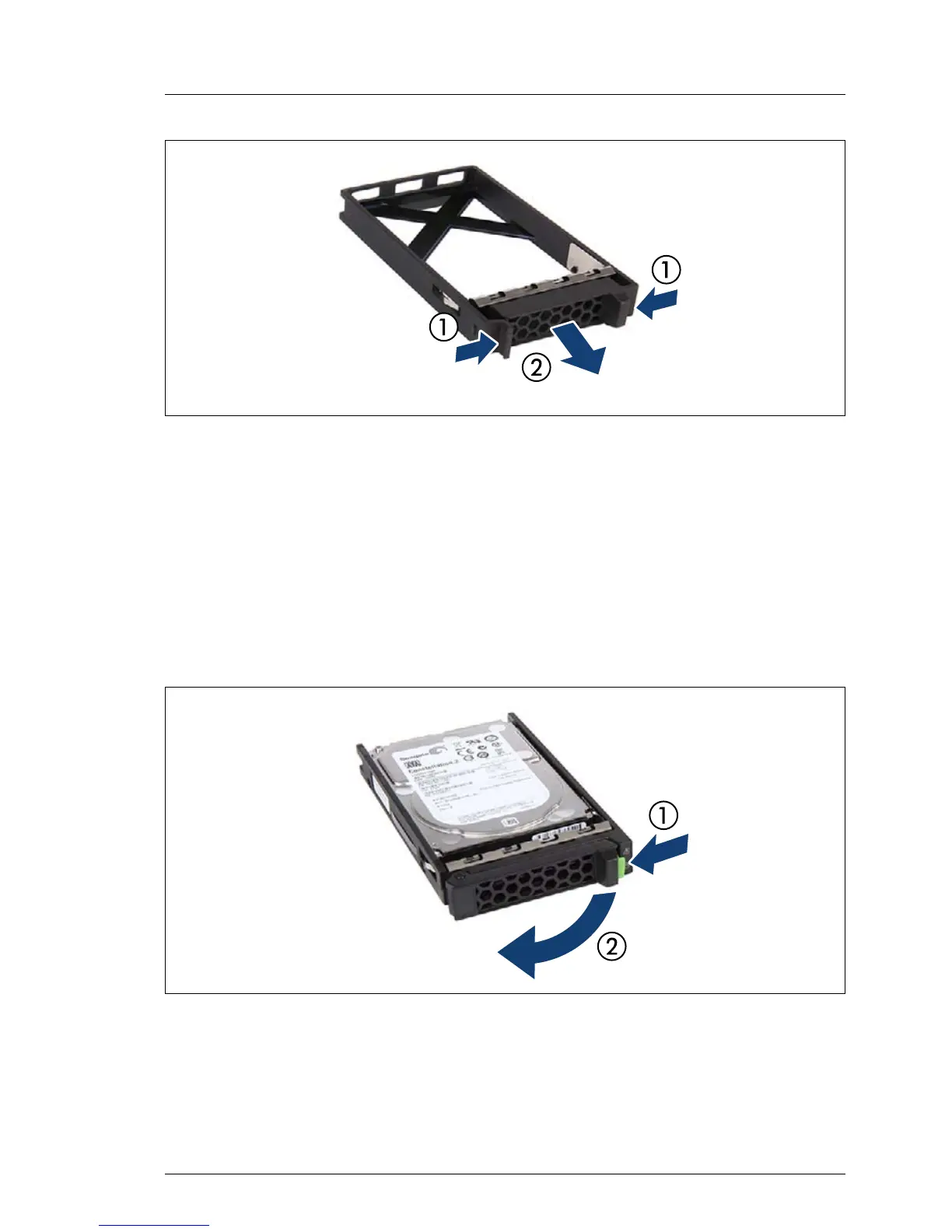

Figure 52: Removing a 2.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
7.2.5.3 Installing a 2.5-inch HDD/SSD module
Figure 53: Opening the 2.5-inch HDD/SSD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
