98 Upgrade and Maintenance Manual
RX100 S8
Power supply
6.3.1.3 Installing a hot-plug power supply unit

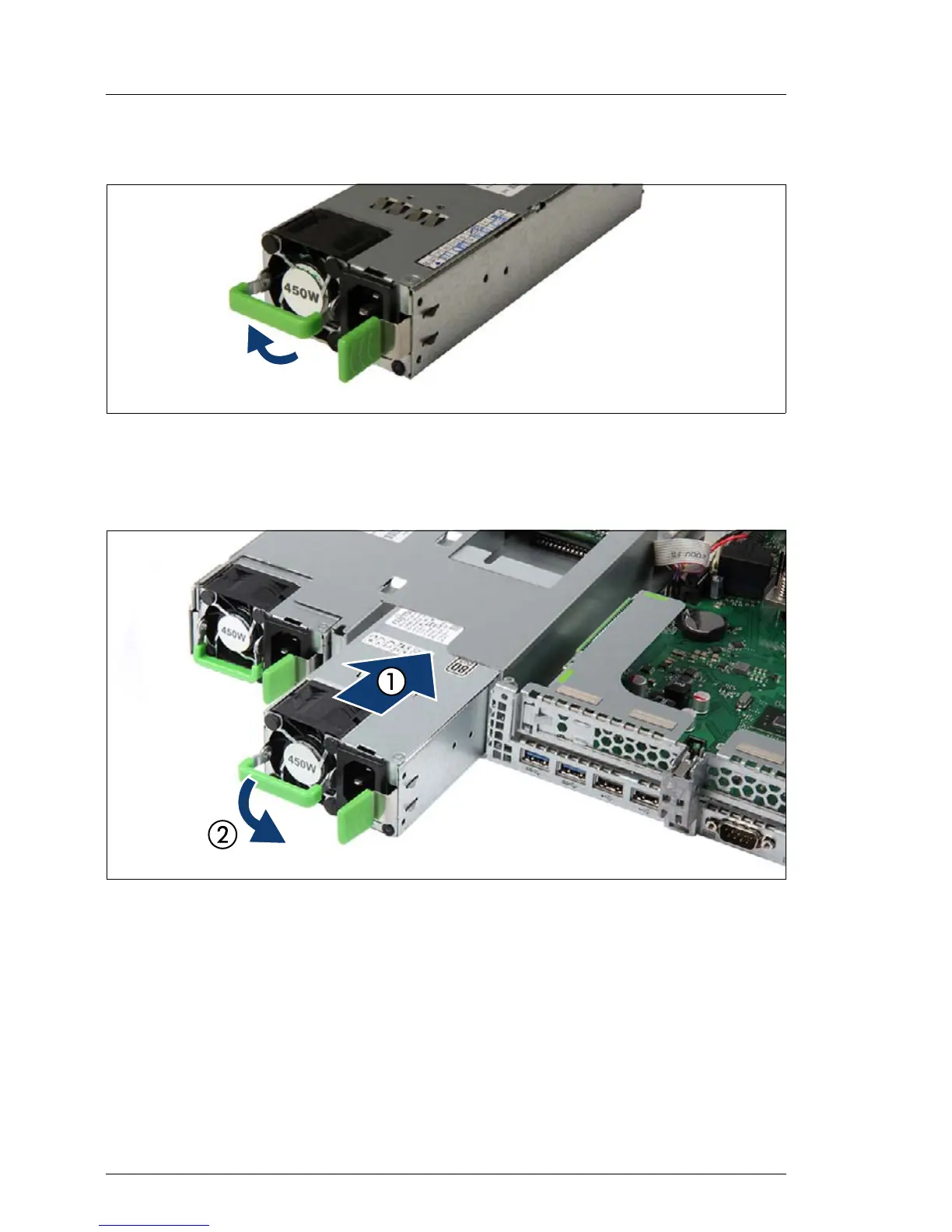

Figure 28: Folding up the handle
Ê Push the handle of the power supply unit halfway upward in the direction of
the arrow.
Figure 29: Installing the hot-plug power supply unit
Ê Push the power supply unit into its bay (1) as far as it will go until the locking
latch snaps in place.
Ê If applicable, fold down the handle on the power supply unit (2).
I Make sure that the power supply unit engages correctly in the bay and is
locked in position. This is the only way to prevent the power supply unit
from sliding out of its bay and being damaged during transportation.
