134 Upgrade and Maintenance Manual RX100 S8
Hard disk drives / solid state drives

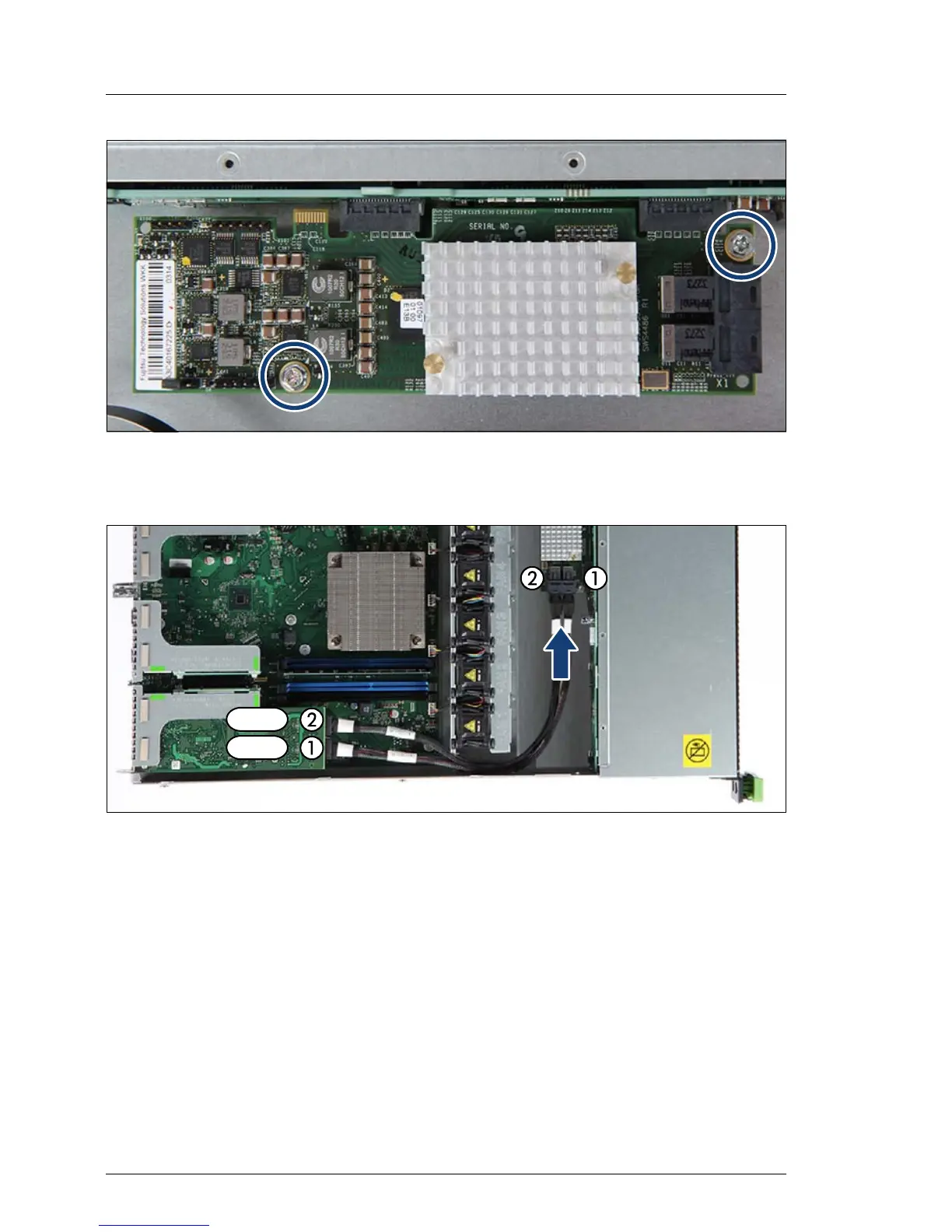

Figure 69: Installing the SAS expander board (B)
Ê Fasten the SAS expander board with two screws (see circles).
Figure 70: Connecting SAS cables
Ê Connect the two SAS cables to the SAS expander board:
– (1) from SAS controller connector MLC1 to SAS expander board
– (2) from SAS controller connector MLC2 to SAS expander board
MLC 1
MLC 2
