RX100 S8 Upgrade and Maintenance Manual 127
Hard disk drives / solid state drives
Left side 4 x 2.5-inch HDD backplane (A3C40157852)

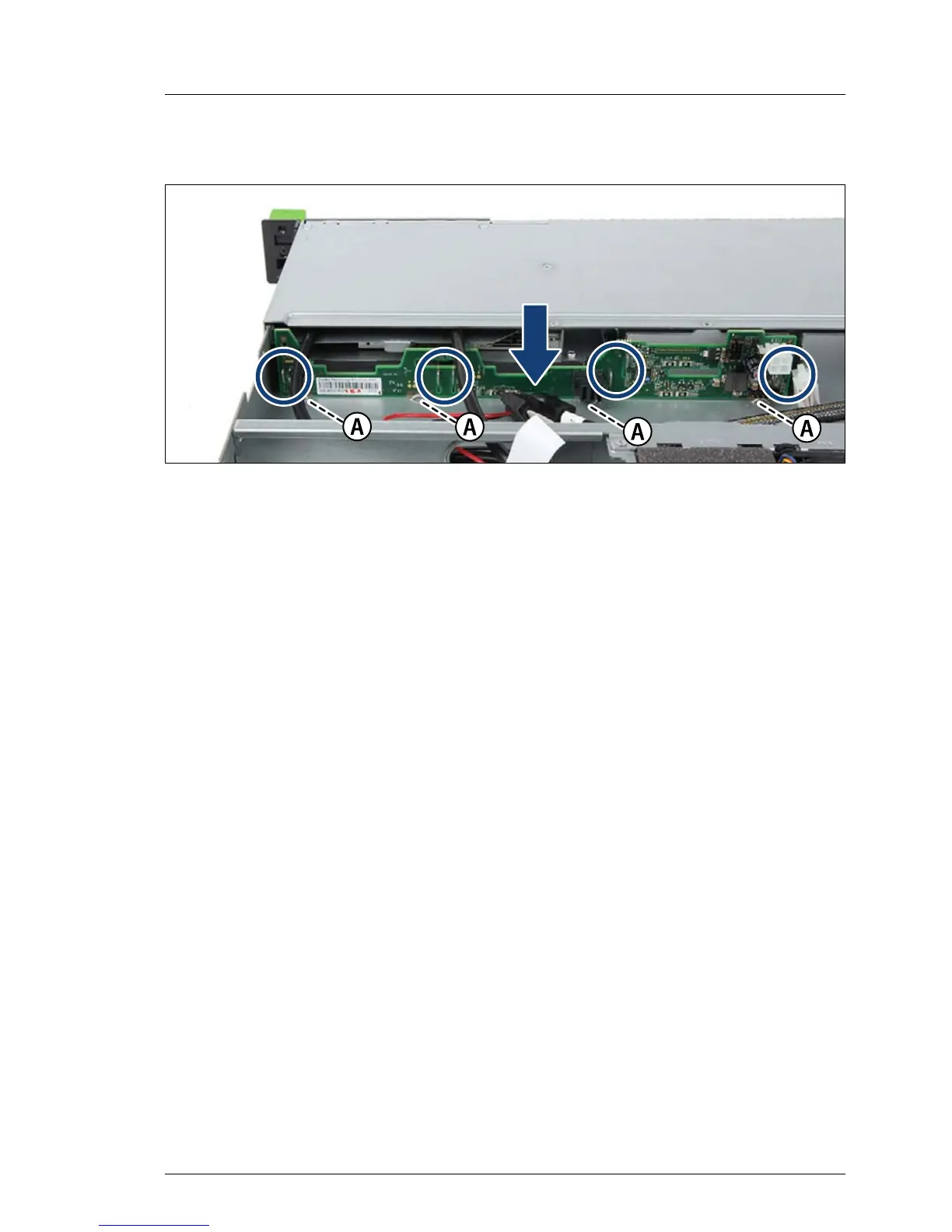

Figure 59: Installing the 4 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the lower cant of the
HDD backplane fits in the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
