128 Upgrade and Maintenance Manual
RX100 S8
Hard disk drives / solid state drives

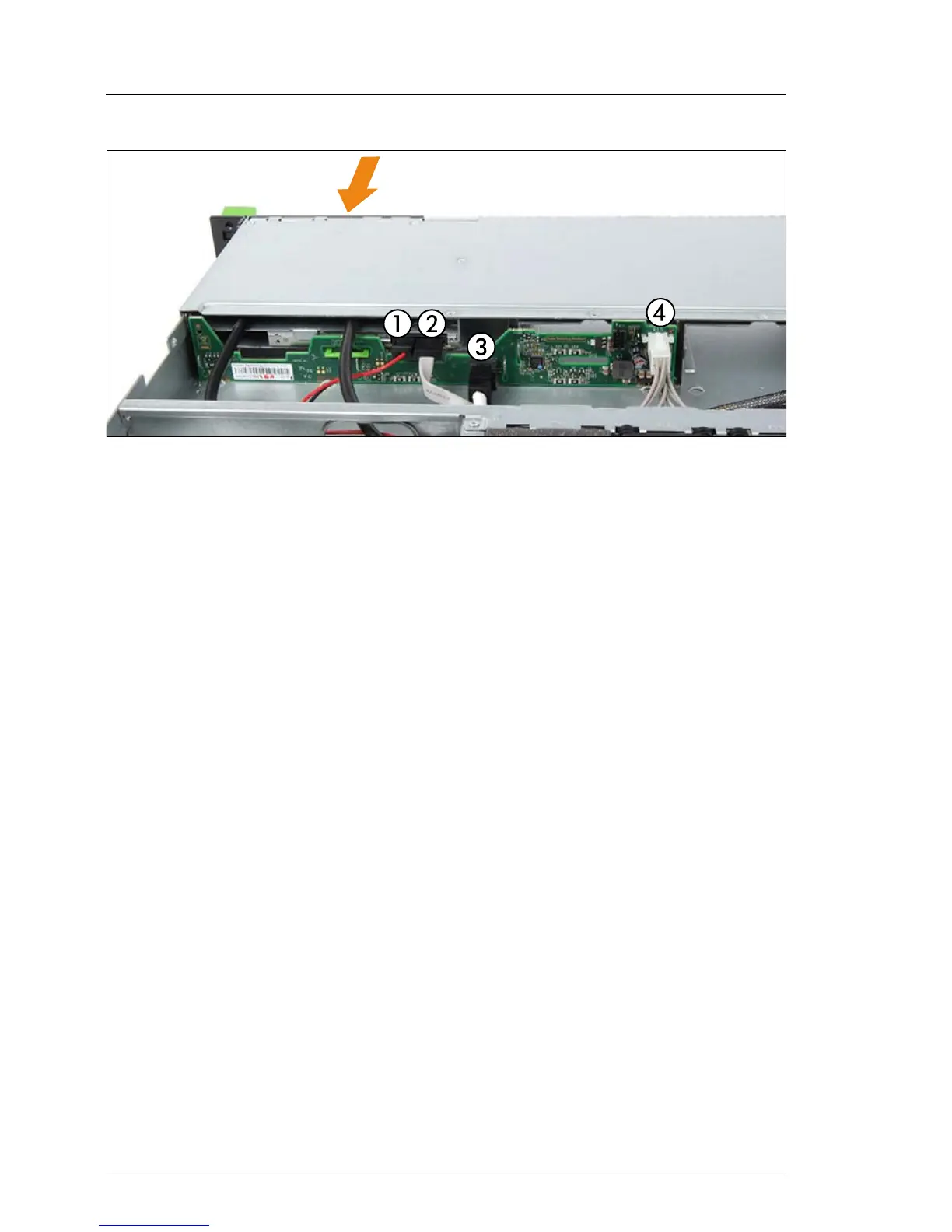

Figure 60: Connecting the cables to the ODD and the 4 x 2.5-inch HDD backplane
Ê If applicable, push the ODD in its bay until the ODD latch engages (see
orange arrow).
Ê Connect the following cables to the ODD and the HDD backplane:
– (1) SATA cable to ODD (if applicable)
– (2) power cable to ODD (if applicable)
– (3) SAS cable to connector "X5" on the HDD backplane
– (4) power cable to connector "PWR" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane.
For the cable plan see section "Cabling" on page 272.
