RX100 S8
Upgrade and Maintenance Manual 125
Hard disk drives / solid state drives
Left side 4 x 2.5-inch HDD backplane (A3C40157852)

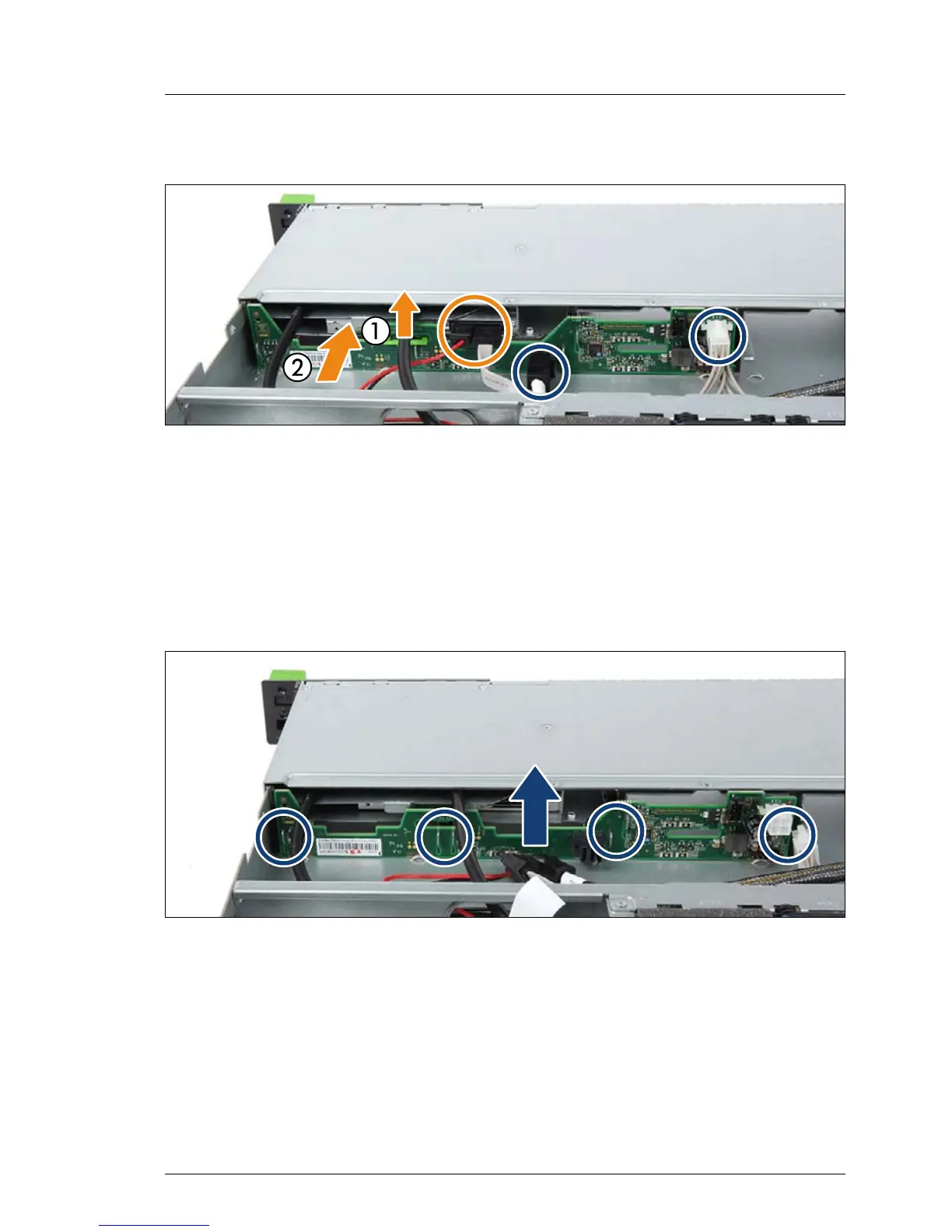

Figure 56: Releasing the ODD latch and disconnecting the cables
Ê If applicable, disconnect both cables from the ODD (see orange circle).
Ê If applicable, pull the ODD latch upward (1) until it disengages and push the
ODD somewhat in direction of the front side (2).
Ê Disconnect all cables from the HDD backplane (see blue circles).
I If applicable, remove the OOB cable from the HDD backplane, too.
Figure 57: Removing the 4 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
