166 Upgrade and Maintenance Manual
RX100 S8
Expansion cards and backup units

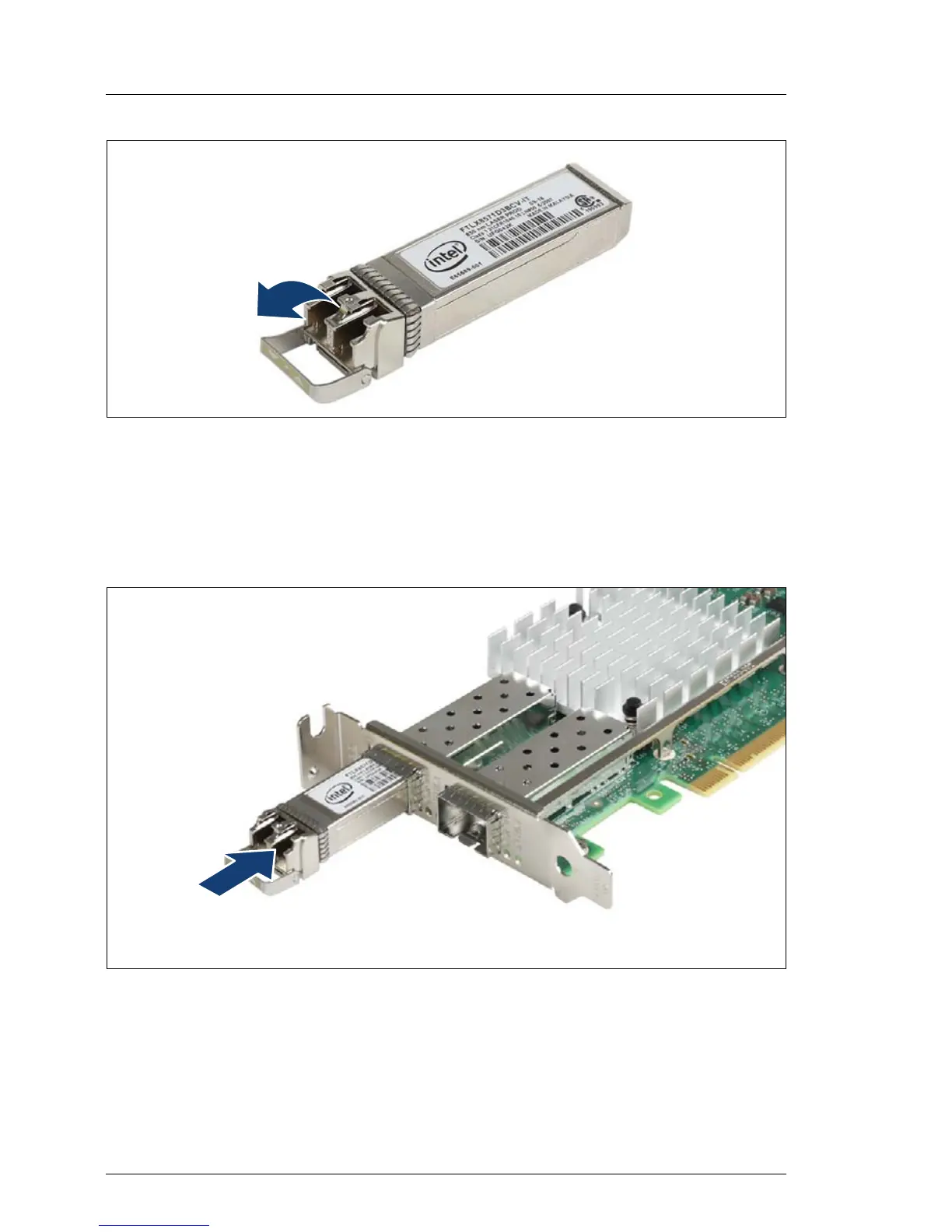

Figure 99: Unlatching the locking bail
Ê Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module.
Inserting the SFP+ transceiver module
Figure 100: Inserting the SFP+ transceiver module
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I If only one slot is equipped with a SFP+ transceiver module, use the
left connector as shown.
