RX100 S8
Upgrade and Maintenance Manual 183
Expansion cards and backup units

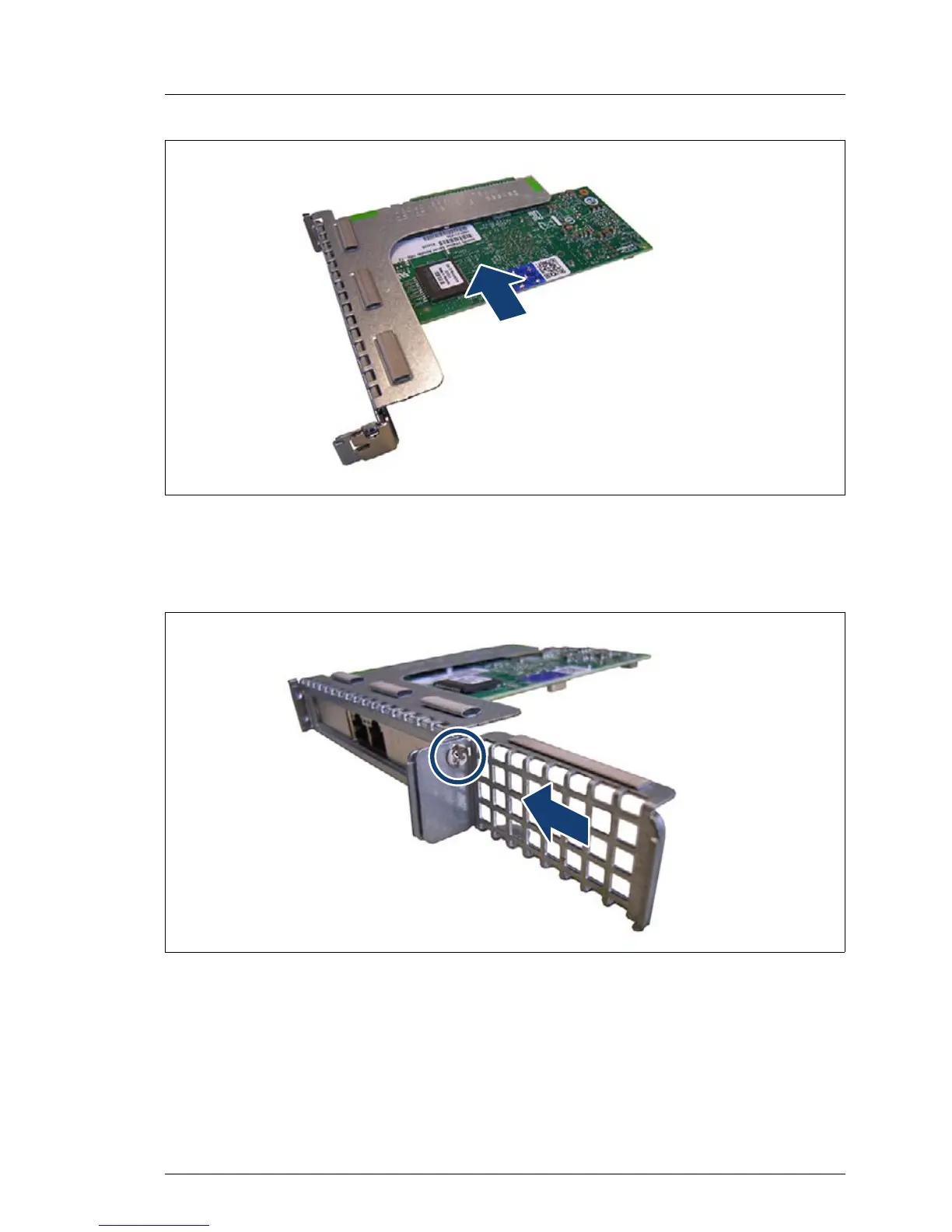

Figure 118: Installing the expansion card - example full height riser module
Ê Install the expansion card as described in section "Installing the expansion
card" on page 172.
Figure 119: Installing the extension bracket
Ê Fasten the extension bracket with one screw to the full height riser module
(see circle).
