RX100 S8
Upgrade and Maintenance Manual 189
Expansion cards and backup units
Ê Install a RAID controller as described in section "Installing an expansion
card" on page 171.

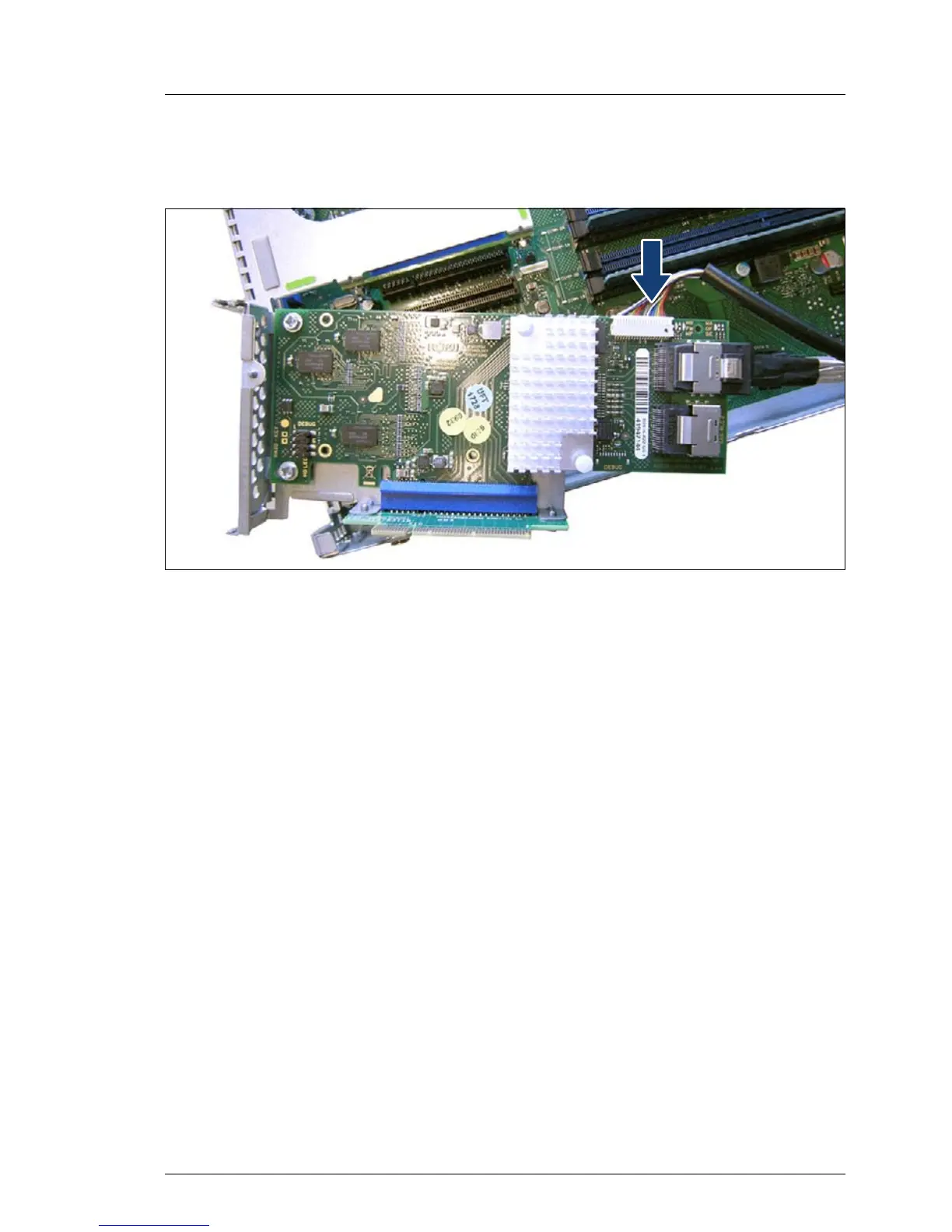

Figure 125: Connecting the BBU cable to the RAID controller
Ê Connect the BBU cable to the RAID controller.
V CAUTION!
●
Make sure that the connector side with the three dots is on the top.
Otherwise you risk short-circuits.
●
Do not connect the cable using excessive force, the connector is
weak.
