228
Upgrade and Mai
ntenance Manual
RX100
S8
Optical disk drive

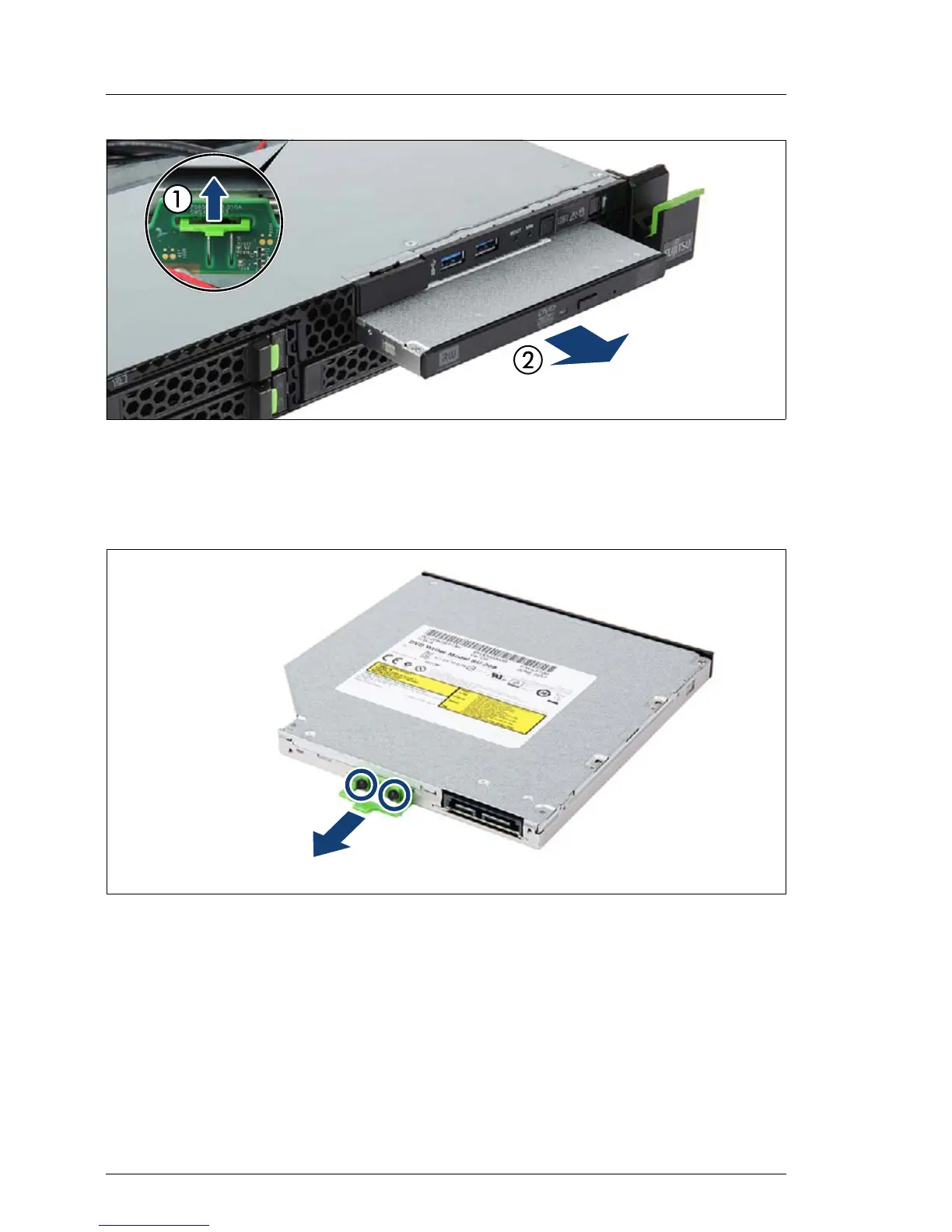

Figure 163: Removing the ODD
Ê
Press the ODD latch in direction of the arr
ow until it disengages (1).
Ê
Pull the ODD out of the bay
(2).
Figure 164: Removing the ODD
latch from the ODD
Ê
Remove the two screws (
see circles).
Ê
Remove the ODD latch.
