240
Upgrade and Mai
ntenance Manual
RX100
S8
Front panel

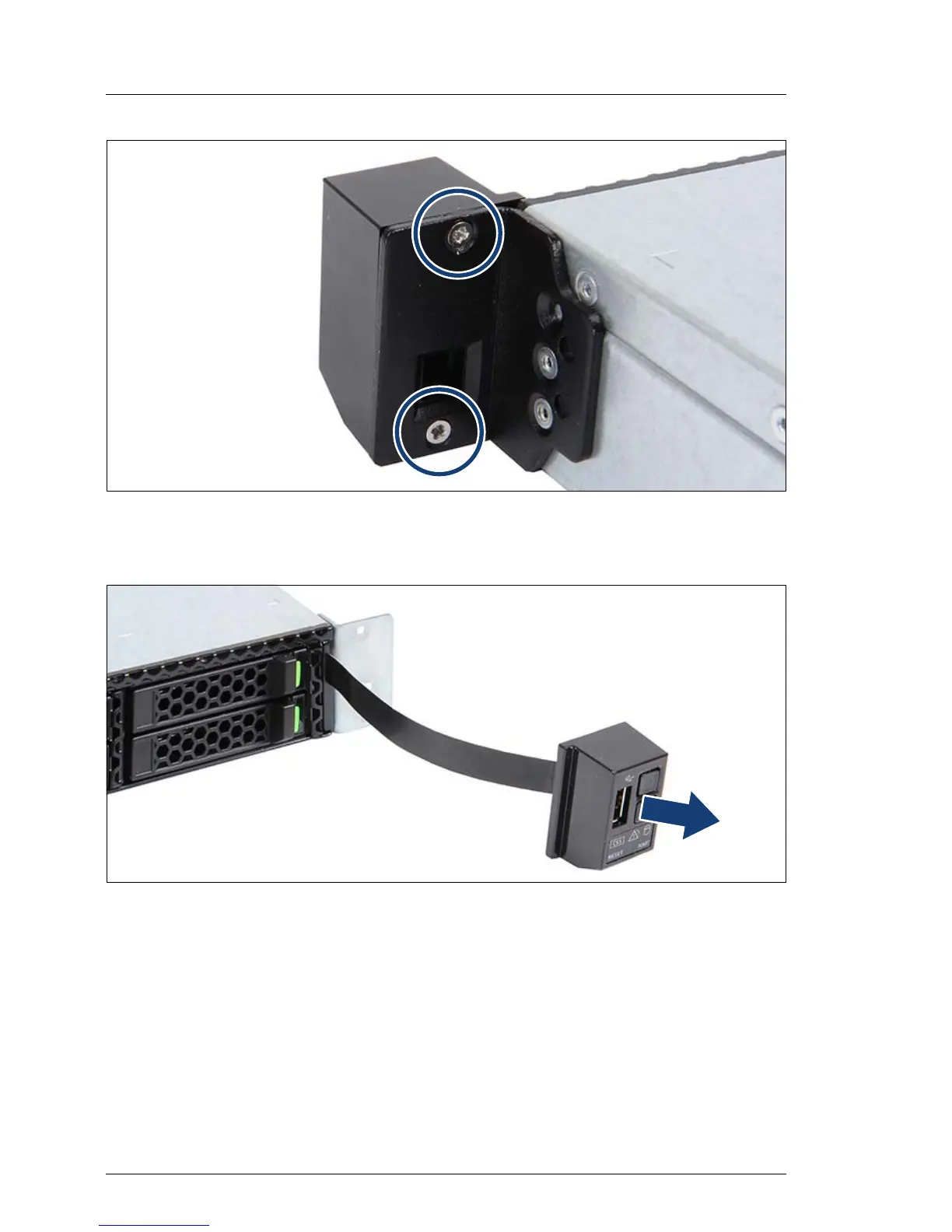

Figure 178: Removing the fr
ont panel
on QRL (A)
Ê
Remove the two screws (
see circles).
Figure 179: Removing the fr
ont panel
on QRL (B)
Ê
Remove the front panel.
Ê
Pul
l the
front cable out of the opening.
239
