Fujitsu PRIMERGY RX100 S8 Upgrade And Maintenance Manual

RX100 S8 Upgrade and Maintenance Manual 283
Appendix

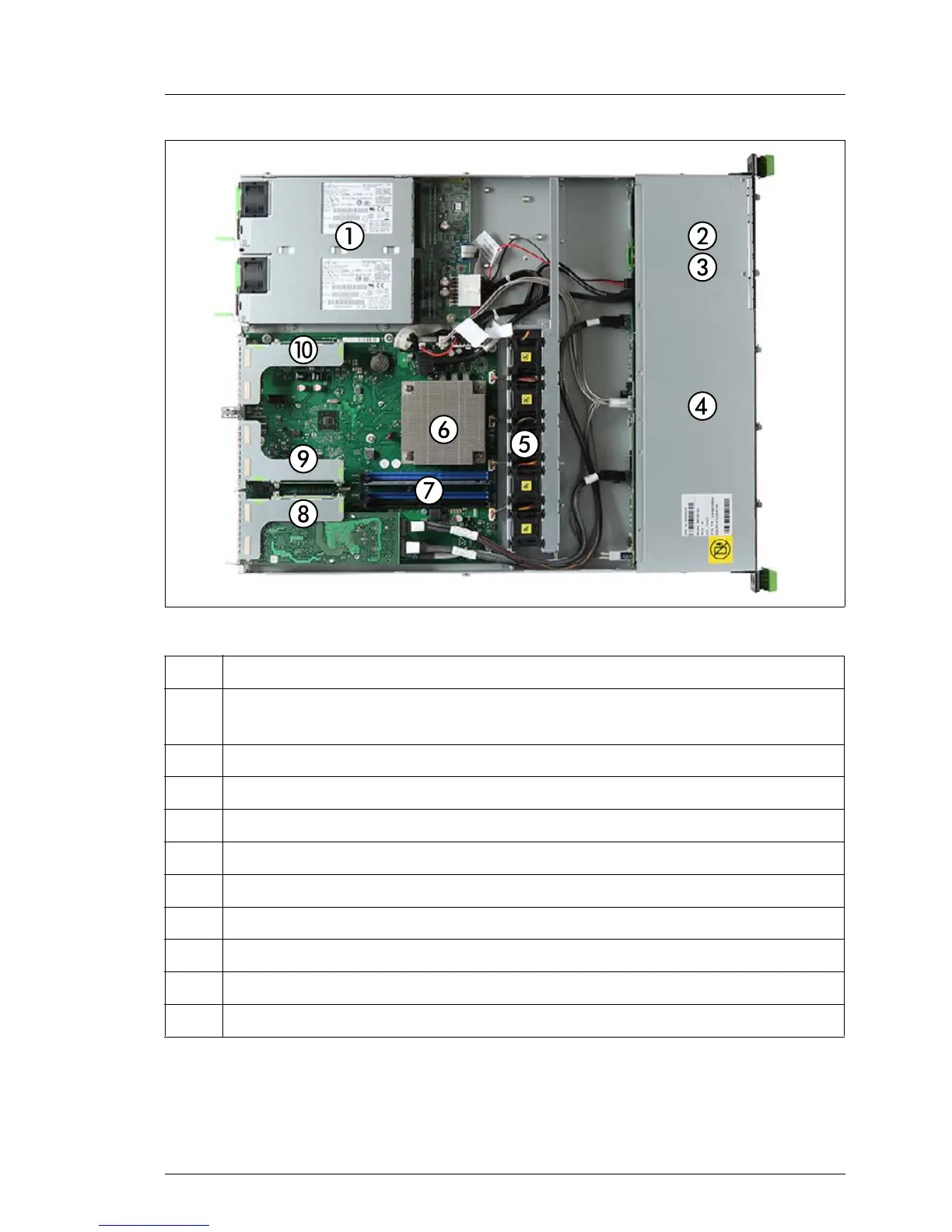

Figure 216: Interior (example: 2.5-inch HDDs and redundant power supply)
Pos. Component
1 Redundant power supply: up to 2 hot-plug power supply units / dummy
cover
2 Front panel module / front VGA (option) / dummy cover
4 Up to 8x 2.5-inch hard disk drives / dummy modules
3 ODD (option) / dummy cover
5 5x fan modules
6Processor
7 Main memory
8 Riser module 1
9 Riser module 2
10 Riser module 3

Fujitsu PRIMERGY RX100 S8 Specifications

General

CPU Family	Intel Xeon
Memory Type	DDR3
Memory Slots	4
Maximum Memory	32 GB
Network Interface	Gigabit Ethernet
Processor	Intel Xeon E3-1200 v2
Storage	SAS, SATA
RAID Support	RAID 0, 1, 10
Drive Bays	4 x 3.5" or 8 x 2.5"
