RX100 S8
Upgrade and Maintenance Manual
61
Basic hardware procedures

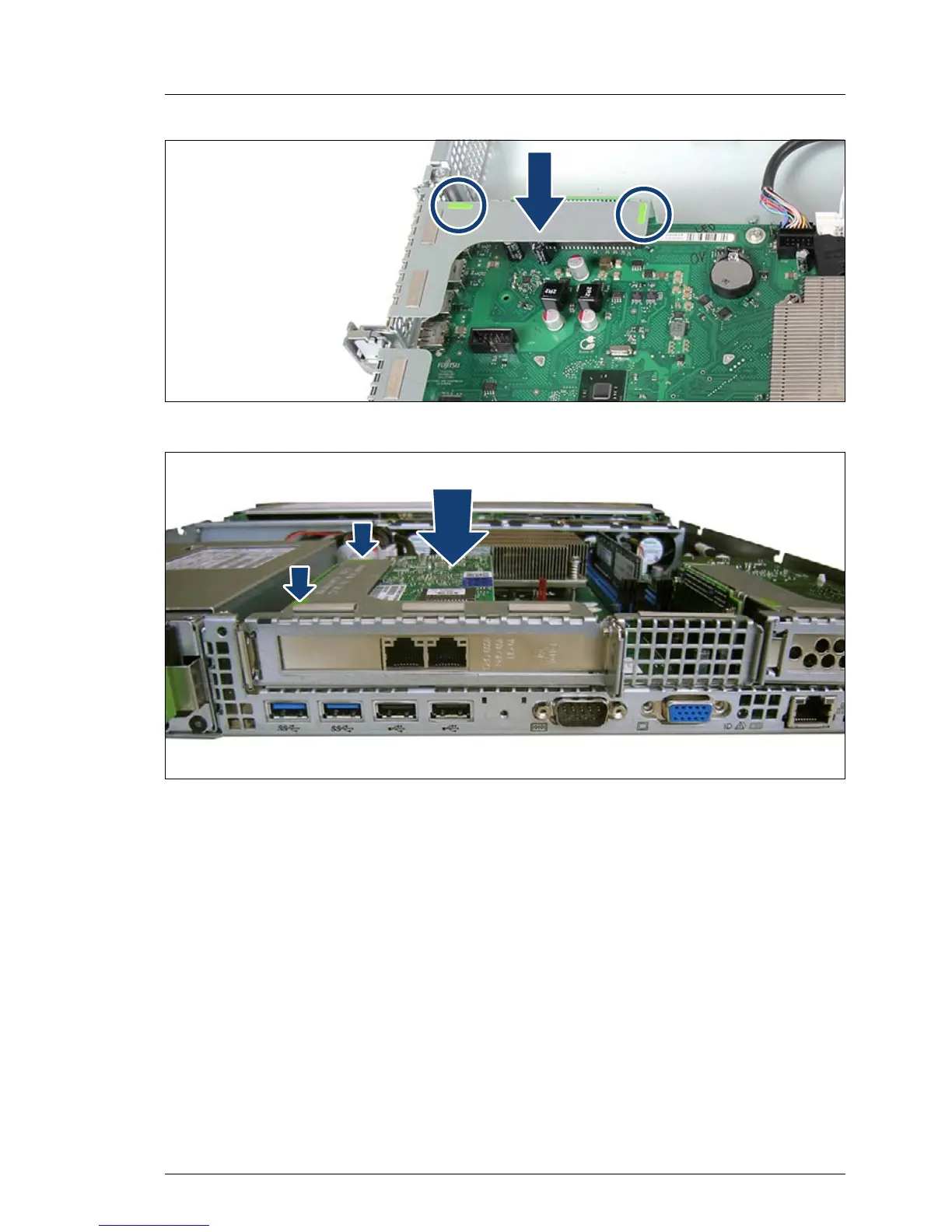

Figure 18: Installing the riser
module 3
Figure 19: Install
ing the full height
riser module
Ê
Insert the riser card into the system board slot and press down the green
touch points
(see circles).
Ê
If necessary
, c
onnect the cables to the other component
s.
60
62
