network 192.168.2.0 0.0.0.255
network 192.168.9.0 0.0.0.255
network 192.168.4.0 0.0.0.255
#
pim
c-bsr vlanif 100
c-rp vlanif 100 group-policy 2005 priority 0
static-rp 192.168.2.2
ssm-policy 2000
#
return
4.17.2 Example for Configuring SPT Switchover in PIM-SM
Domain
Networking Requirements
Receivers can receive the VOD information in multicast mode. The entire PIM network adopts
a single BSR administrative domain. By default, after receiving the first multicast data packet,
the RP and the DR on the receiver side perform the SPT switchover, finding the optimal path to
receive the multicast information from the multicast source. If the receiver requires that the SPT
switchover be performed after the traffic reaches the threshold, you need to configure the SPT
switchover function.
As shown in Figure 4-3, you need to configure the S9300s properly. In this way, HostA on the
leaf network then can receive multicast data from the RP (GE1/0/0 of S9300-A). When the
transmission rate of multicast packets reaches 1024 kbit/s, the SPT switchover is performed.
After the SPT switchover, the path through which HostA receive multicast packets is Source--
S9300-B--S9300-C--HostA.

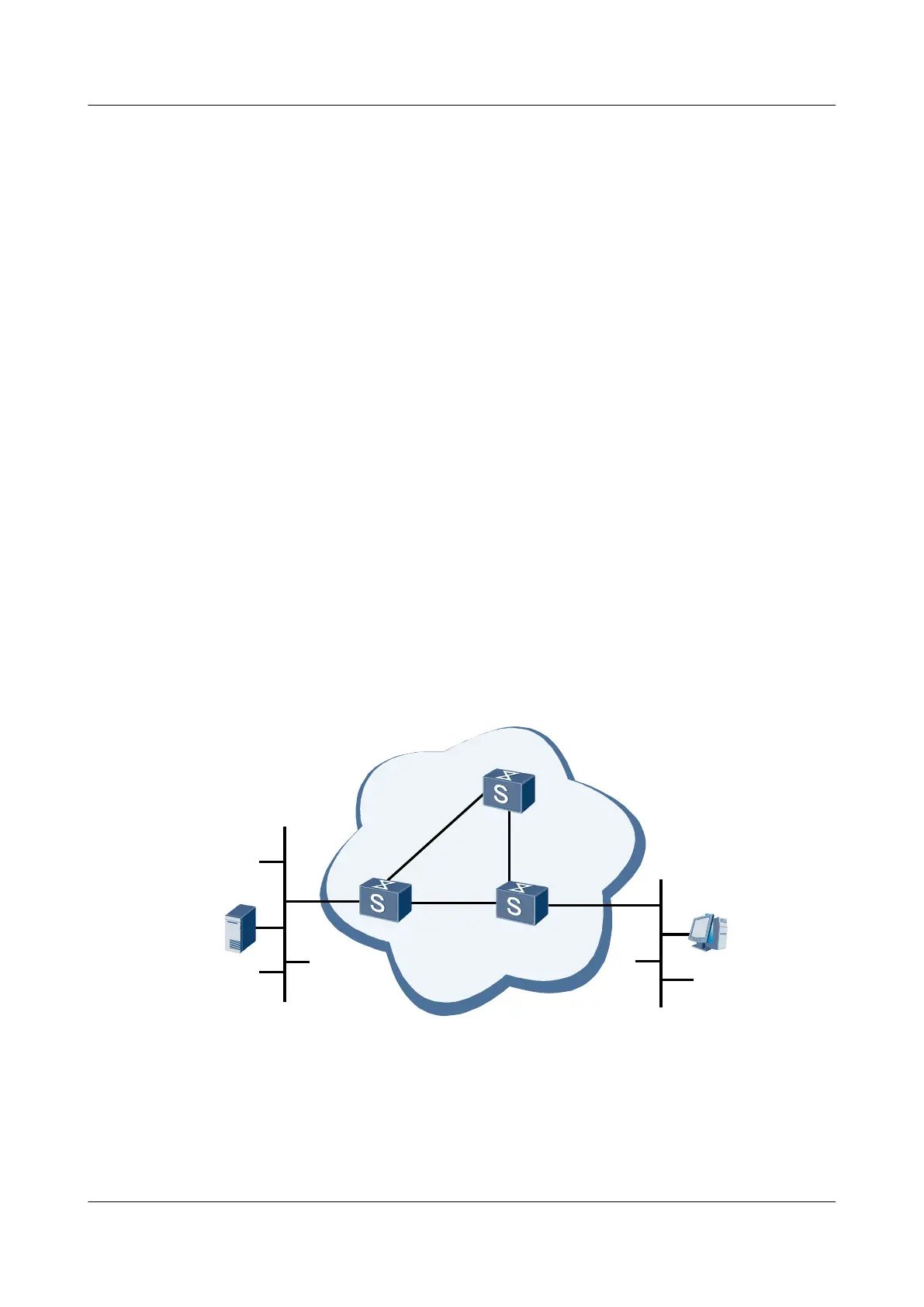

Figure 4-3 Networking diagram for performing the SPT switchover in PIM-SM domain
Ethernet
Source
Ethernet
S9300-C
PIM-SM
S9300-B
Leaf networks
Receiver
HostA
GE1/0/0
GE3/0/0
GE1/0/0
GE1/0/0
GE3/0/0
GE2/0/0
GE2/0/0
S9300-A
GE2/0/0
Switch
Physical interface VLANIF interface IP address
S9300-A GE 1/0/0 VLANIF 100 192.168.1.1/24
GE 2/0/0 VLANIF 200 192.168.3.1/24
S9300-B GE 1/0/0 VLANIF 300 192.168.2.1/24
GE 2/0/0 VLANIF 200 192.168.3.2/24
GE 3/0/0 VLANIF 101 10.110.5.1/24
Quidway S9300 Terabit Routing Switch
Configuration Guide - Multicast 4 PIM-SM Configuration
Issue 01 (2009-07-28) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4-63
