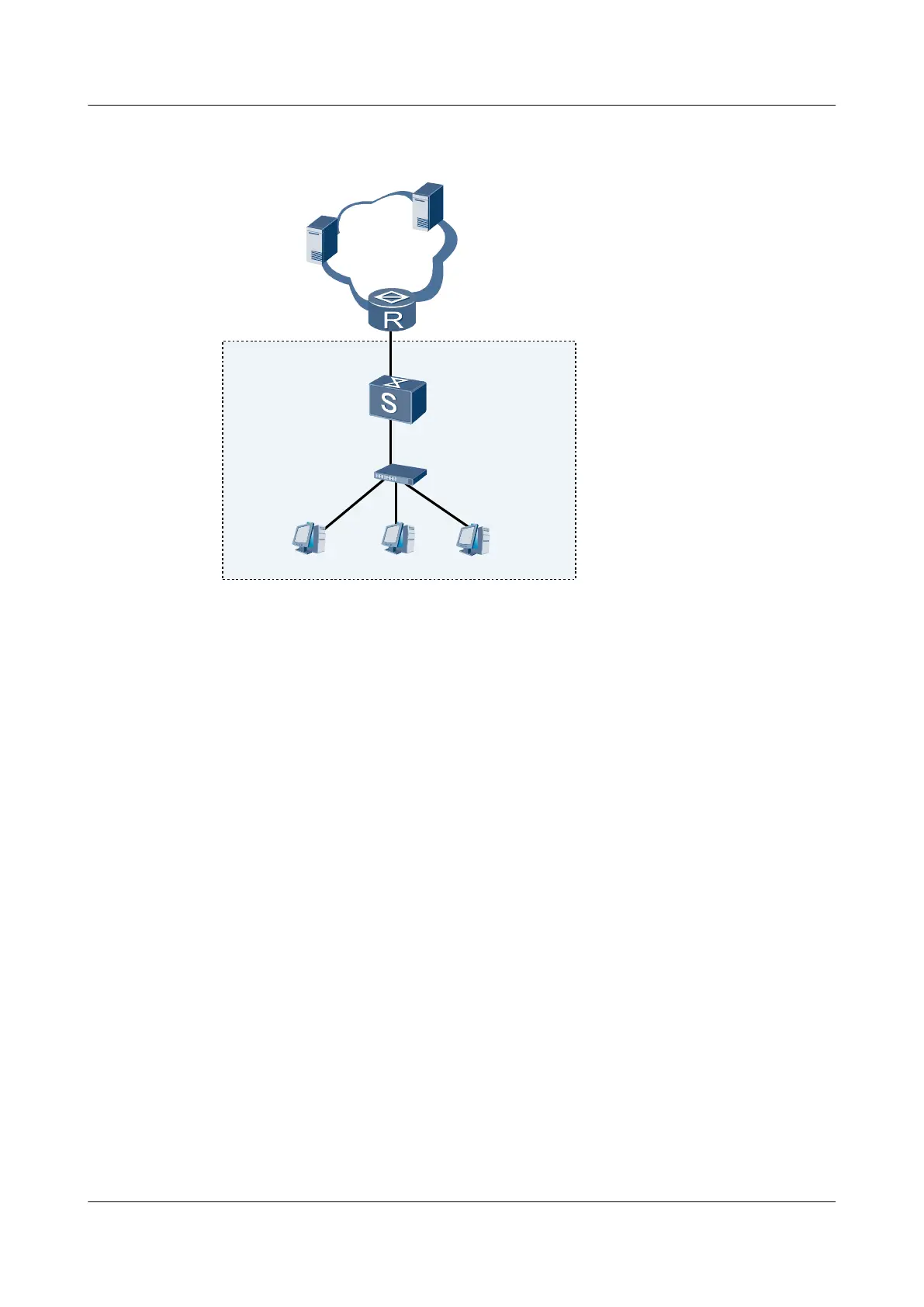

Figure 1-2 Networking diagram for configuring static Layer 2 multicast for a VLAN
VLAN3
Host3
Host4 Host5
GE1/0/1
S9300
GE3/0/1
Multicast source
DHCP server
IP/MPLS core
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a VLAN.
2. Add interfaces to the VLAN.
3. Add interfaces to the multicast group statically.
Data Preparation
To complete the configuration, you need the following data:
l ID of the VLAN
l Type and number of each interface
l Address of the multicast group
Procedure
Step 1 Create a VLAN.
# Create VLAN 3 on the S9300.
<S9300> system-view
[S9300] vlan 3
[S9300-vlan3] quit
