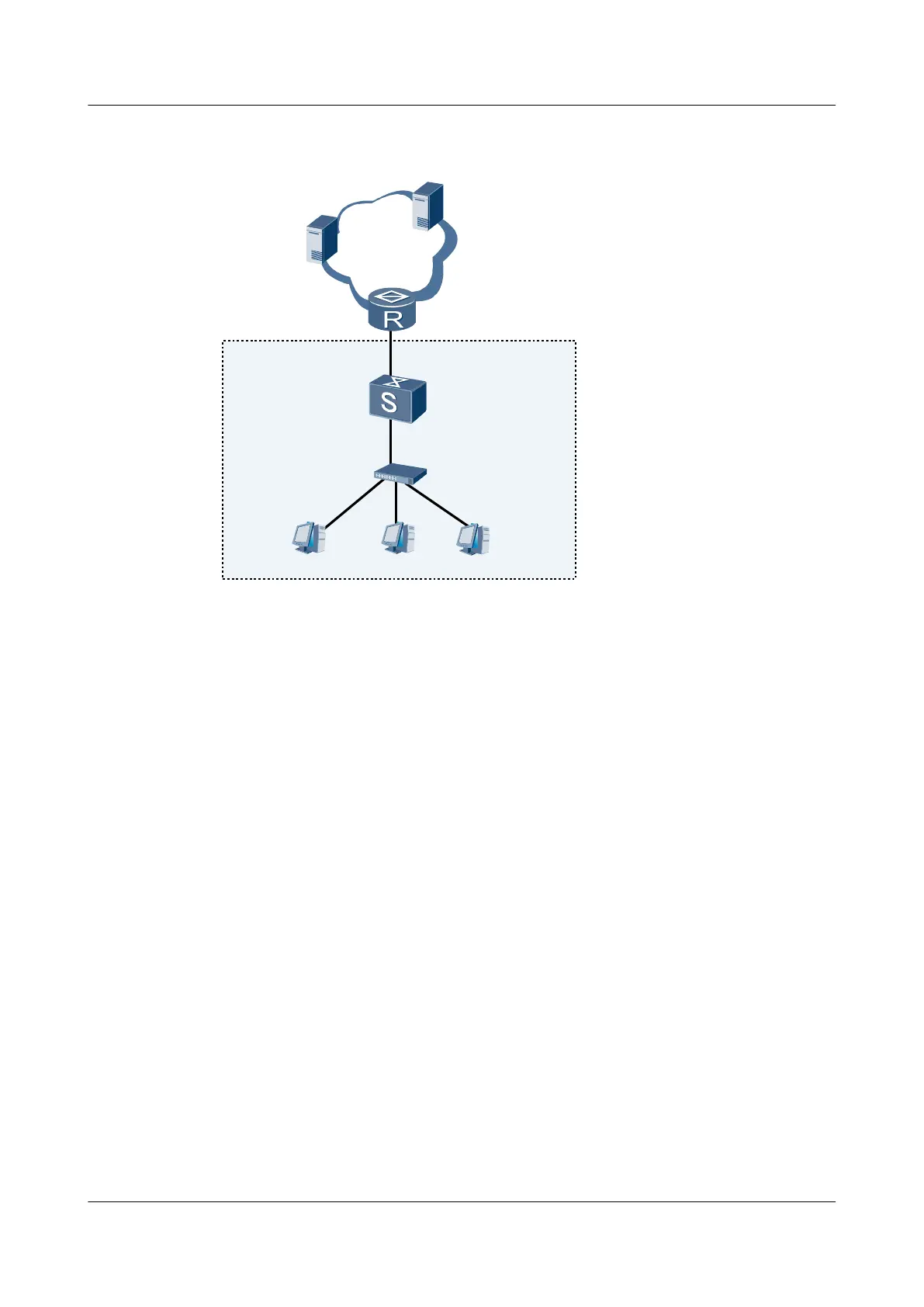

Figure 1-4 Networking diagram for configuring VLAN-based IGMP snooping
VLAN3
Host3
Host4 Host5
GE1/0/1
S9300
GE3/0/1
Multicast source
DHCP server
IP/MPLS core
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a VLAN and add interfaces to the VLAN.
2. Enable IGMP snooping globally and in a VLAN.
3. Configure a static router interface.
4. Configure static multicast groups 225.1.1.1, 225.1.1.2, and 225.1.1.3.
Data Preparation
To complete the configuration, you need the following data:
l ID of the VLAN that GE 1/0/1 and GE 3/0/1 belong to, that is, VLAN 3
l Static router interface GE 3/0/1
l Addresses of static multicast groups, 225.1.1.1, 225.1.1.2, 225.1.1.3
Procedure
Step 1 Create a VLAN and add interfaces to the VLAN.
<S9300> system-view
[S9300] vlan 3
[S9300-vlan3] quit
[S9300] interface gigabitethernet 3/0/1
[S9300-GigabitEthernet3/0/1] port hybrid tagged vlan 10
Quidway S9300 Terabit Routing Switch
Configuration Guide - Multicast 1 Layer 2 Multicast Configuration
Issue 01 (2009-07-28) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1-33
