1.8.2 Example for Configuring Multicast VLAN Replication
Networking Requirements
As shown in Figure 1-3, GE 3/0/1 of the S9300 is connected to a router, and is added to VLAN
3. GE 1/0/2 and GE 1/0/3 of the S9300 are connected to hosts, and are respectively added to
VLAN 100 and VLAN 200. It is required that the four hosts connected to the S9300 should
receive the multicast flow from the multicast groups 225.0.0.1 to 225.0.0.3. VLAN 3 is the
multicast VLAN; VLAN 100 and VLAN 200 are user VLANs.

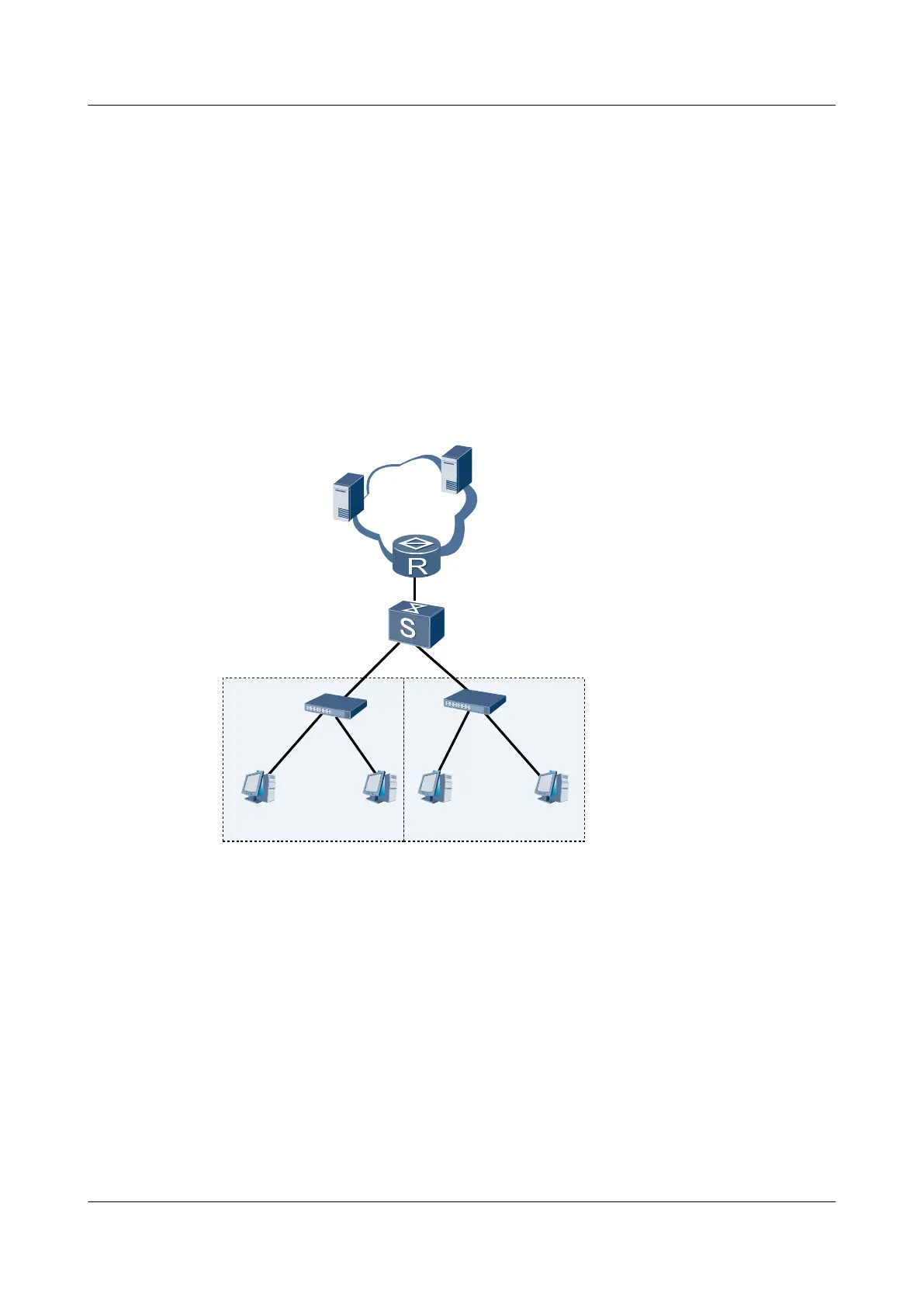

Figure 1-3 Networking diagram for configuring multicast VLAN replication on the S9300
GE1/0/3GE1/0/2
GE3/0/1
VLAN100
VLAN200
VLAN3
DHCP server
Multicast source
IP/MPLS core
S9300
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a multicast VLAN.
2. Create user VLANs.
3. Configure the mapping the multicast VLAN and the user VLANs.
4. Configure the VLAN that the interfaces of the S9300 belong to and static multicast entries.
Data Preparation
To complete the configuration, you need the following data:
