Huawei Quidway S9300

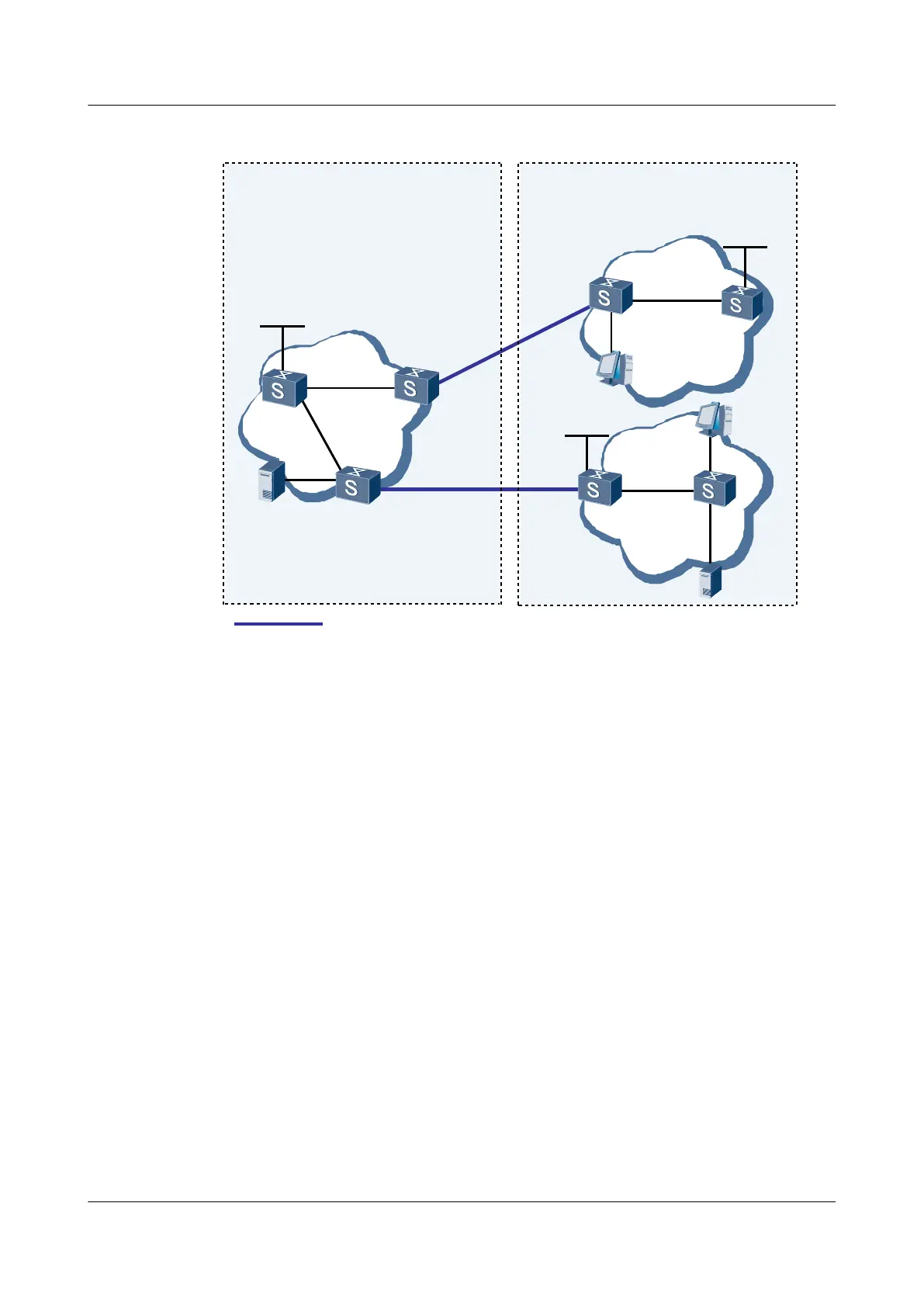

Figure 5-2 Networking diagram for configuring inter-AS multicast by using static RPF peers
AS100
AS200
PIM-SM1
S1
Loopback0
S9300-A
S9300-C
S9300-B
S9300-D
S9300-E
Loopback0
PIM-SM2
PIM-SM3
S9300-G
S2
Loopback0
BGP peers
GE1/0/0
GE2/0/0
S9300-F
GE2/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE1/0/0
Receiver
Receiver
1.1.1.1/32
2.2.2.2/32
3.3.3.3/32
GE2/0/0
GE3/0/0
GE2/0/0
GE2/0/0
GE3/0/0
GE1/0/0
GE1/0/0
GE3/0/0
GE1/0/0
Switch Interface VLANIF interface IP address
S9300-A GE 1/0/0 VLANIF 500 192.168.5.2/24
GE 2/0/0 VLANIF 400 192.168.4.2/24
GE 3/0/0 VLANIF 101 10.110.1.1/24
S9300-B GE 1/0/0 VLANIF 100 192.168.1.2/24
GE 2/0/0 VLANIF 200 192.168.2.2/24
S9300-C GE 1/0/0 VLANIF 100 192.168.1.1/24
GE 2/0/0 VLANIF 400 192.168.4.1/24
S9300-D GE 1/0/0 VLANIF 300 192.168.3.2/24
S9300-E GE 1/0/0 VLANIF 300 192.168.3.1/24
GE 2/0/0 VLANIF 200 192.168.2.1/24
GE 3/0/0 VLANIF 102 10.110.2.1/24
S9300-F GE 1/0/0 VLANIF 500 192.168.5.1/24
GE 2/0/0 VLANIF 600 192.168.6.1/24
S9300-G GE 1/0/0 VLANIF 103 10.110.3.1/24
GE 2/0/0 VLANIF 600 192.168.6.2/24
GE 3/0/0 VLANIF 104 10.110.4.1/24
Configuration Roadmap
Set up an MSDP peer on the RP in each PIM-SM domain. Establish the static RPF peer relation
between MSDP peers. In this way, the source information can be transmitted across domains
without changing unicast topology.
