Huawei Quidway S9300

Solution: Configure SSM mapping on S9300-D.

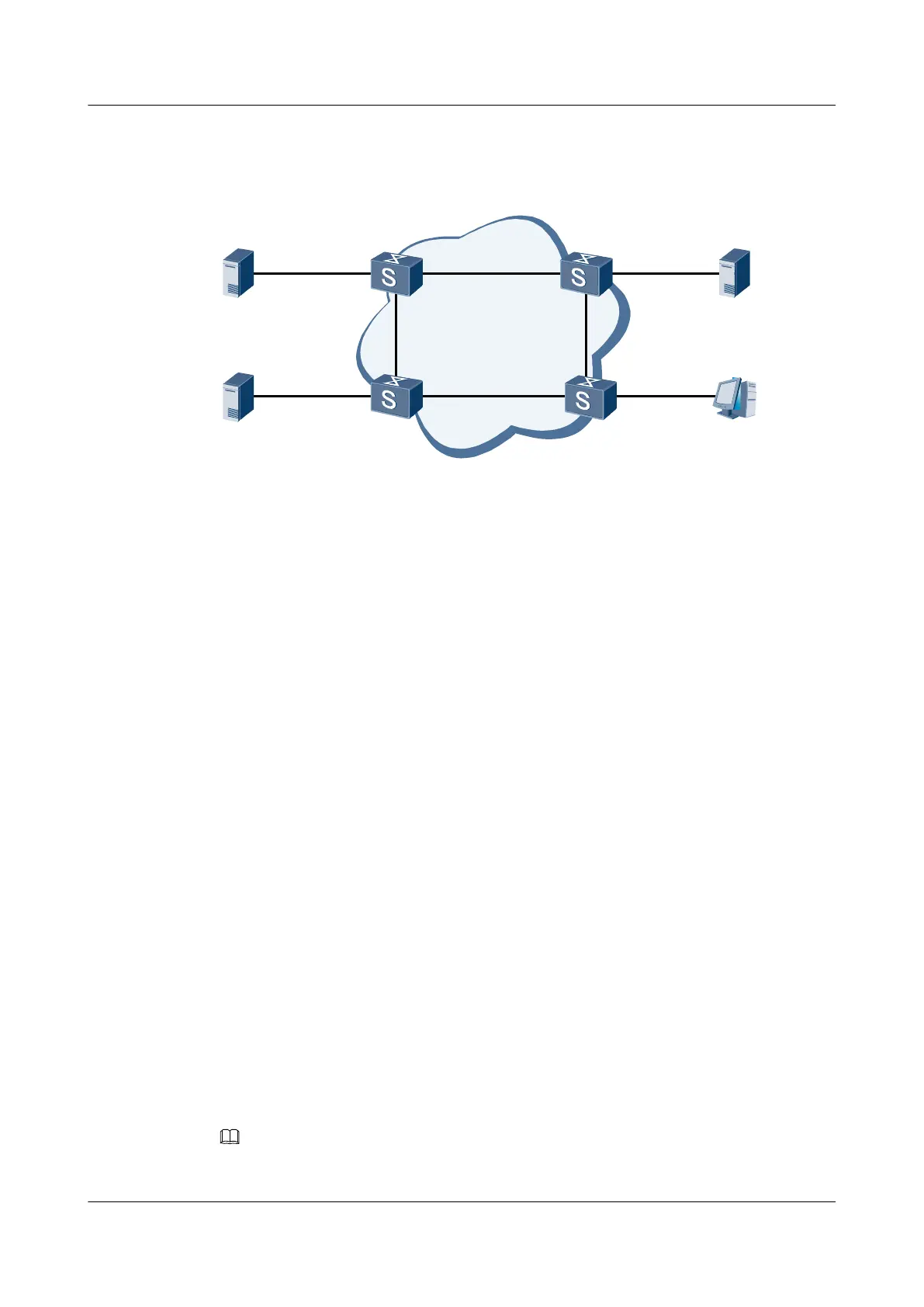

Figure 2-2 Networking of the SSM mapping configuration
GE1/0/0
S2
133.133.2.1/24
S1
133.133.1.1/24
Receiver
133.133.4.1/24
PIM-SM
S9300-B
S3
133.133.3.1/24
S9300-A
S9300-C
S9300-D
GE1/0/0
GE1/0/0
GE1/0/0
GE3/0/0GE3/0/0
GE3/0/0 GE3/0/0
GE2/0/0
GE2/0/0
GE2/0/0
GE2/0/0
Switch Physical interfaces VLANIF interface IP address
S9300-A GE 1/0/0 VLANIF 10 133.133.1.2/24
GE 2/0/0 VLANIF 20 192.168.1.1/24
GE 3/0/0 VLANIF 30 192.168.4.2/24
S9300-B GE 1/0/0 VLANIF 11 133.133.2.2/24
GE 2/0/0 VLANIF 20 192.168.1.2/24
GE 3/0/0 VLANIF 31 192.168.2.1/24
S9300-C GE 1/0/0 VLANIF 12 133.133.3.2/24
GE 2/0/0 VLANIF 21 192.168.3.1/24
GE 3/0/0 VLANIF 31 192.168.2.2/24
S9300-D GE 1/0/0 VLANIF 13 133.133.4.2/24
GE2/0/0 VLANIF 21 192.168.3.2/24
GE 3/0/0 VLANIF 30 192.168.4.1/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Enable SSM mapping on the interfaces of the S9300s connected to hosts.
2. Set the range of SSM group addresses on all the S9300s in the PIM-SM domain.
3. Configure the static SSM mapping rules on the S9300s where SSM mapping is enabled.
Data Preparation
To complete the configuration, you need the following data:
l Range of SSM multicast groups
l IP addresses of Source 1 and Source 3
NOTE
This configuration example describes only the commands used to configure SSM mapping.
