As shown in Figure 1-1, S9300-A is connected to the multicast source. S9300-A needs to
replicate the data flow from multicast VLAN 3 to user VLAN 100 and user VLAN 200.

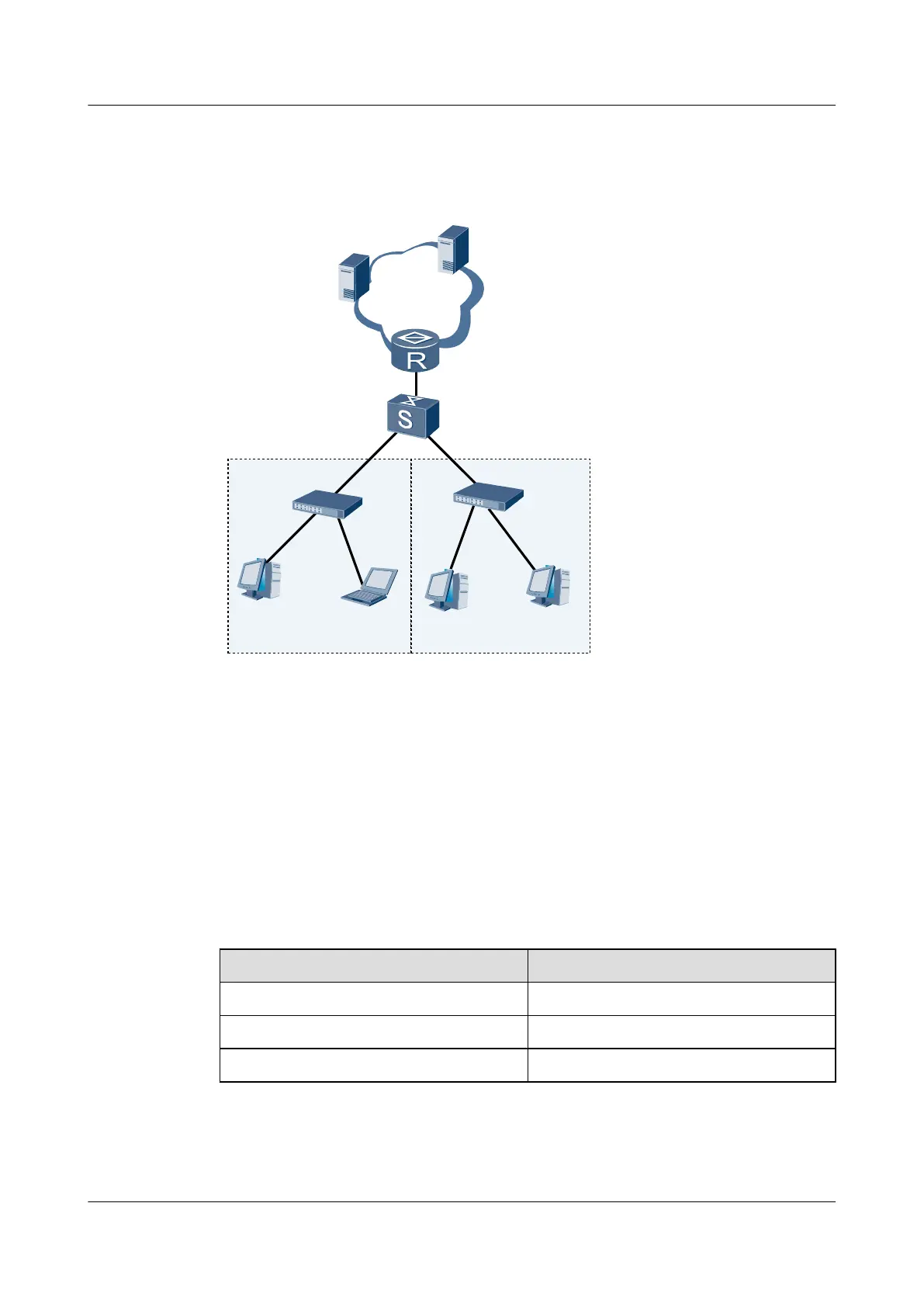

Figure 1-1 Networking diagram of multicast VLAN replication
S9300-A
VLAN100
VLAN200
VLAN3
DHCP server
Multicast source
IP/MPLS core
Pre-configuration Tasks
Before configuring multicast VLAN replication, complete the following tasks:
l Connecting interfaces and configuring the physical parameters of each interface to make
the physical layer in Up state
l Enabling IGMP snooping globally
Data Preparation
To configure multicast VLAN replication, you need the following data.
No.
Data
1 ID of the multicast VLAN
2 IDs of user VLANs
3 Type and number of the interface
1.5.2 Creating a Multicast VLAN
1 Layer 2 Multicast Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - Multicast
1-8 Huawei Proprietary and Confidential
