l Run the debugging pim assert [ advanced-acl-number | [ receive | send ] ]
*
command to
enable the assert debugging of PIM.
l Run the debugging pim join-prune [ advanced-acl-number | [ receive | send ] ]
*
command
to enable the join or prune debugging of PIM.
l Run the debugging pim state-refresh [ advanced-acl-number | [ receive | send ] ]
*
command to enable the State-Refresh debugging of PIM.
----End
3.13 Configuration Examples
This section provides a configuration example of PIM-DM.
3.13.1 Example for Configuring the PIM-DM Network
3.13.1 Example for Configuring the PIM-DM Network
Networking Requirements
On the experiment network shown in Figure 3-2, multicast is deployed. The unicast routes work
normally. The S9300s on the network need to be configured properly so that hosts can receive
the VOD information in multicast mode.

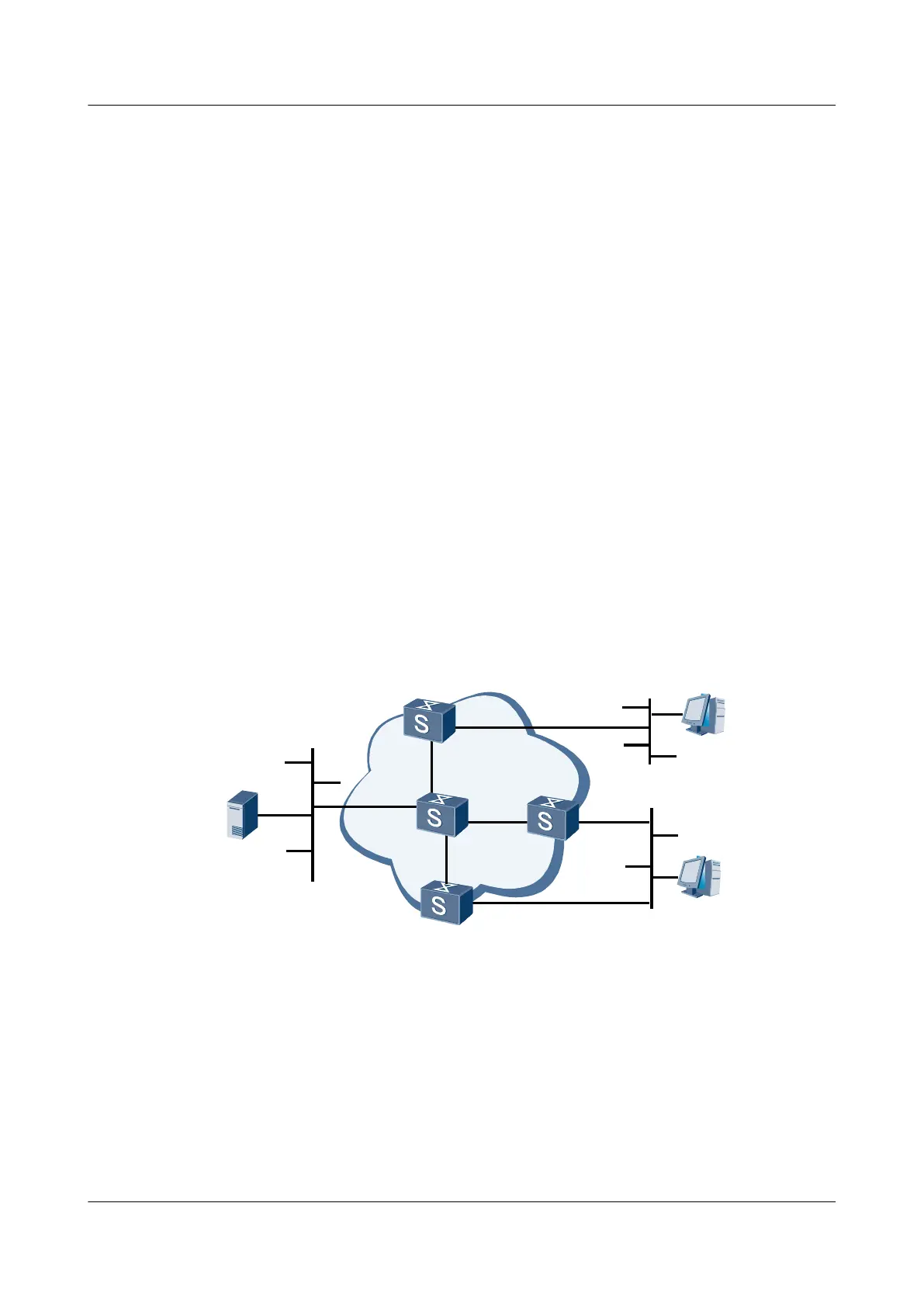

Figure 3-2 Networking diagram for configuring basic PIM-DM functions
Source
Ethernet
S9300-A
PIM-DM
Ethernet
Leaf network
Ethernet
Receiver
HostA
Receiver
HostB
N1
N2
GE2/0/0
S9300-D
S9300-C
S9300-B
GE2/0/0
GE2/0/0
GE4/0/0
GE1/0/0
GE3/0/0
GE1/0/0
GE1/0/0
GE1/0/0
GE2/0/0
Switch
Physical interface VLANIF interface IP address
S9300-A GE 1/0/0 VLANIF 100 192.168.1.1/24
GE 2/0/0 VLANIF 101 10.110.1.1/24
S9300-B GE 1/0/0 VLANIF 200 192.168.2.1/24
GE 2/0/0 VLANIF 102 10.110.2.1/24
S9300-C GE 1/0/0 VLANIF 300 192.168.3.1/24
GE 2/0/0 VLANIF 102 10.110.2.2/24
S9300-D GE 1/0/0 VLANIF 200 192.168.2.2/24
GE 2/0/0 VLANIF 300 192.168.3.2/24
GE 3/0/0 VLANIF 100 192.168.1.2/24
