WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-117
• Dwell drills with a dwell at the bottom. Tool motion is as follows:
1. Position to XY.
2. Rapid to R Plane.
3. Feed to Z Bottom.
4. Dwell for specified number of seconds or revolutions (FPM or FPR).
5. Rapid to R Plane.

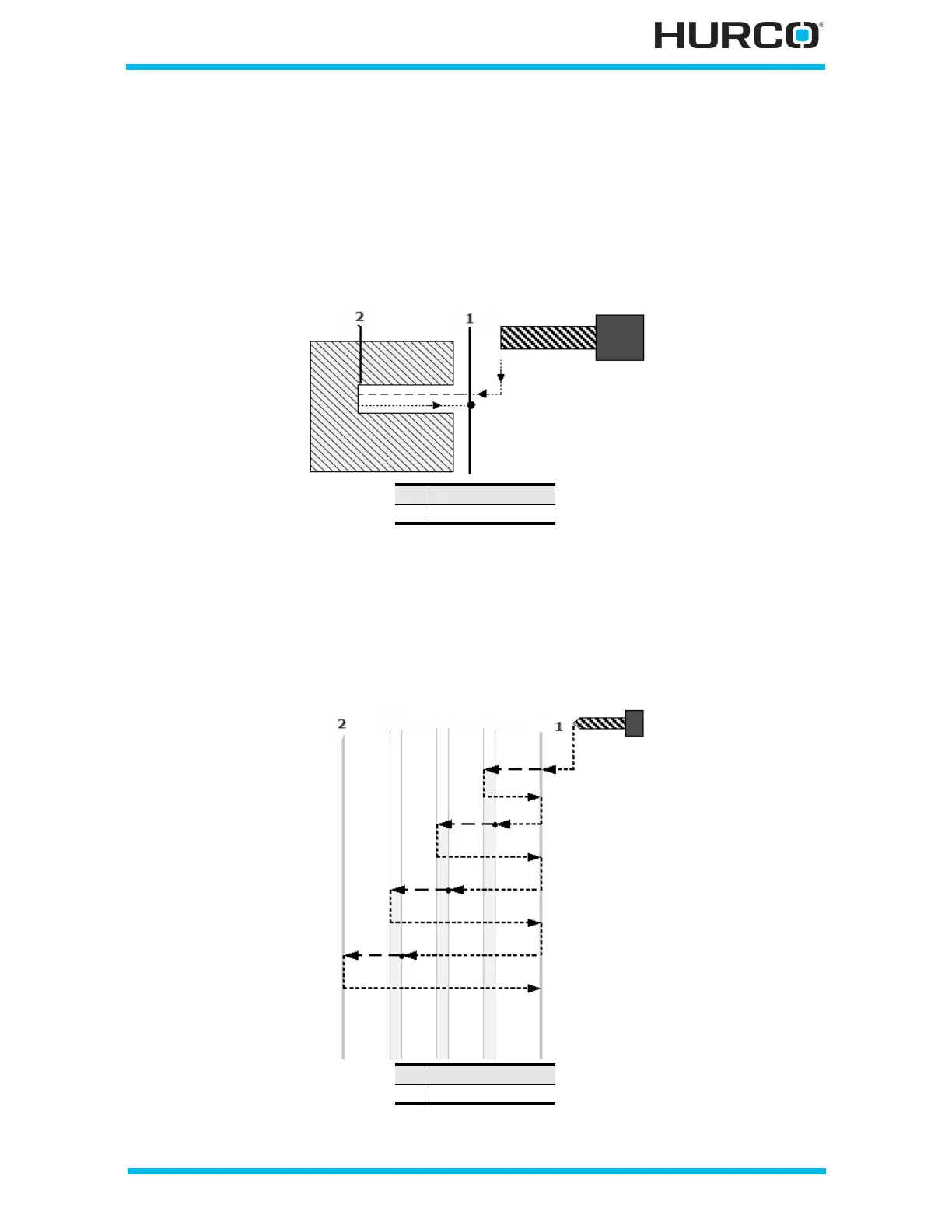

Figure 2–98. Dwell tool motion
• Peck Drilling feeds to a peck depth and retracts at Rapid to the Retract
dimension (R Plane).
The tool returns to the R Plane between each peck. Tool motion is as
follows:
Figure 2–99. Peck Drilling tool motion
1 R Plane
2 Z Bottom
1 R Plane
2 Z Bottom
