• Chip Breaker feeds to the peck depth defined in the Peck Depth field,
retracts at Rapid the distance set in the Peck Clearance field, then feeds
to the next peck depth. This is repeated until the programmed depth is
achieved. Tool motion is as follows:

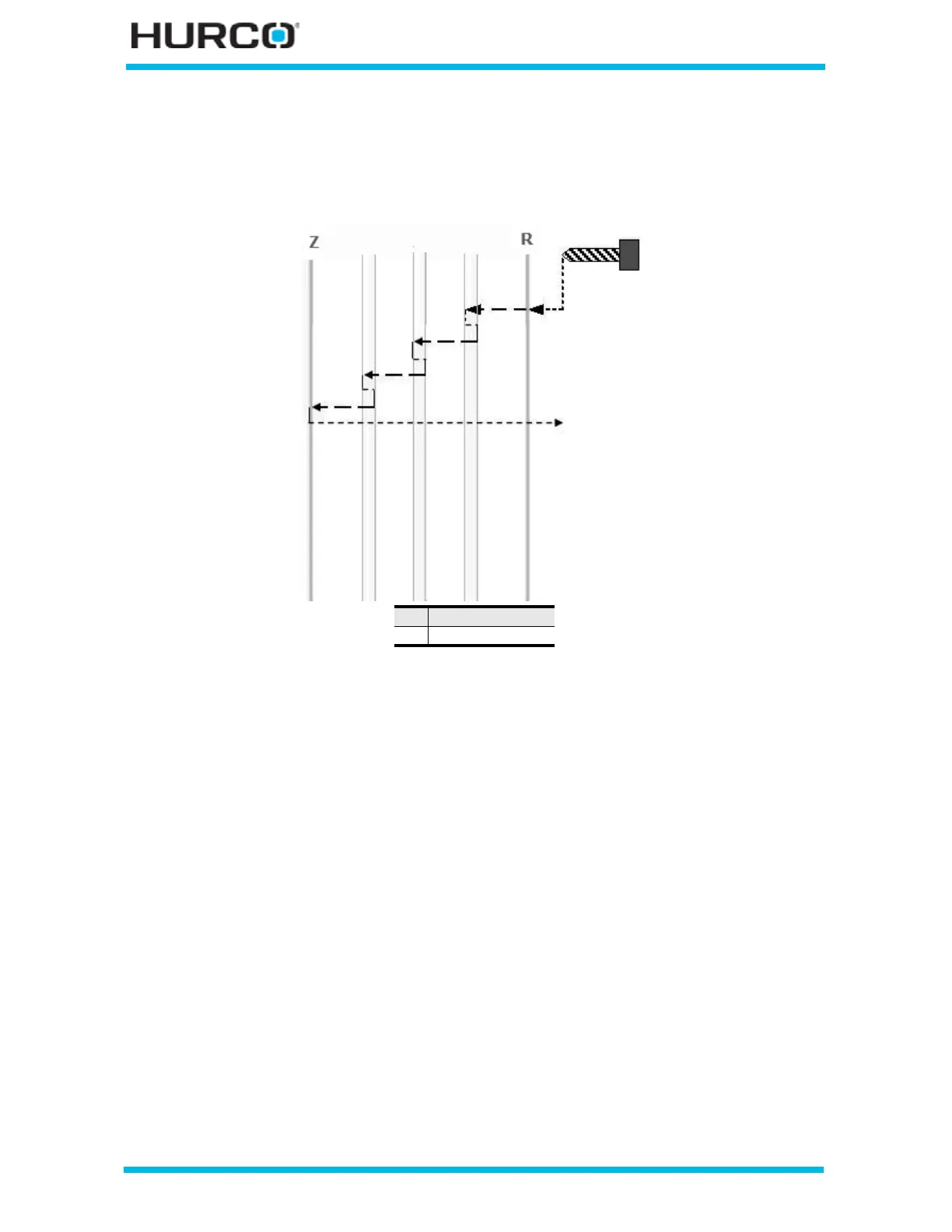

Figure 2–100. Chip Breaker tool motion
• Center Drill cycle creates a pilot hole. You can use a center drill or a
standard drilling hole to perform this operation.
• Decreasing Peck Drilling Depth (Decr Depth) cycle feeds to the
programmed First Peck Depth, then continues cutting a decreasing
amount to the final peck by the peck percent each pass until it reaches
the programmed final peck depth or Z Bottom.
• Decreasing Chip Breaker (Decr Chp Bkr) cycle feeds to the
programmed First Peck Depth, retracts at Rapid the distance set in the
Peck Clearance field, then feeds to the next peck depth, cutting a
decreasing amount to the final peck by the peck percent each pass until it
reaches the programmed final peck depth or Z Bottom.
R R Plane
Z Z Bottom
