WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-141
When Rectangular is selected in the COORDINATES field, these fields appear:

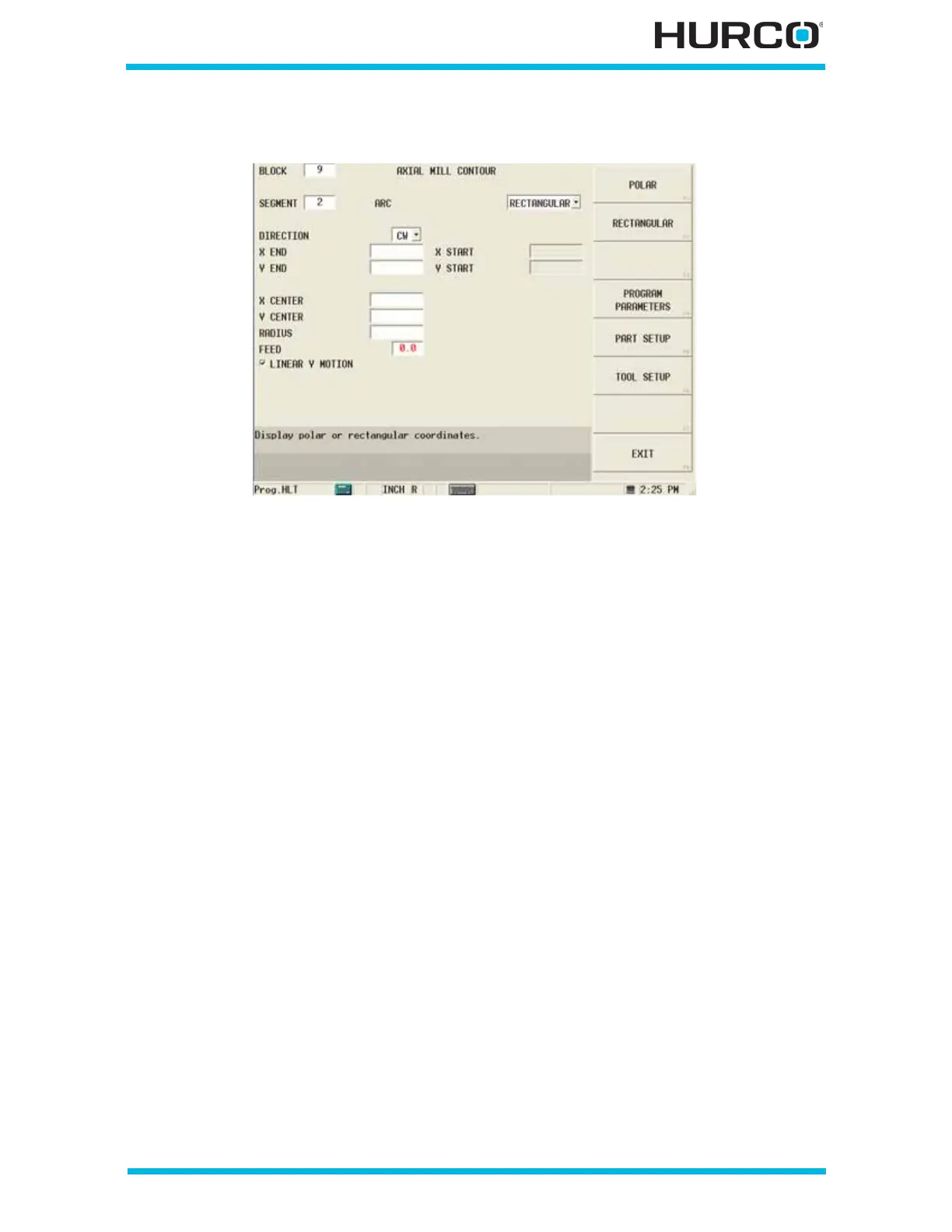

Figure 2–118. Live-Tooling Axial Mill Contour Arc Segment screen: Rectangular Coordi-
nates
• DIRECTION—defines the direction, clockwise or counterclockwise, of the arc
from the start point.
• X END—defines the X coordinate on an XY plane with origin at the center of
the face.
• Y END—defines the Y coordinate on an XY plane with origin at the center of
the face.
• X CENTER—defines the X center coordinate on an XY plane with origin at the
center of the face.
• Y CENTER—defines the Y center coordinate on an XY plane with origin at the
center of the face.
• X START—contains the X start point for the segment. This read-only field is
carried forward from the previous segment and can only be edited in that
screen.
• Y START—contains the Y start point for the segment. This read-only field is
carried forward from the previous segment and can only be edited in that
screen.
• RADIUS—defines the radius of the arc.
• FEED—contains the feed rate from the previous segment. This value can be
accepted or changed.
