WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-183
When Polar is selected in the COORDINATES field, these fields appear:

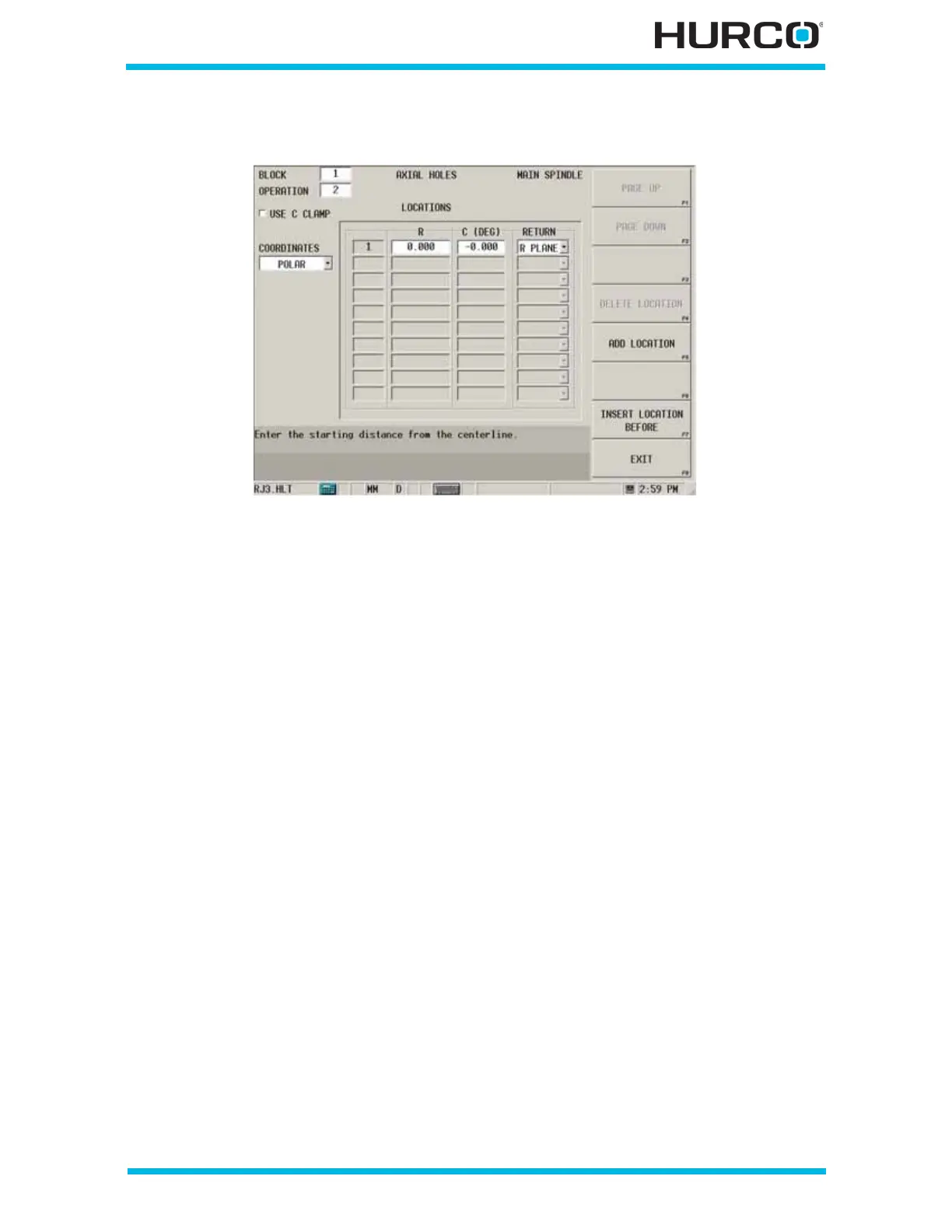

Figure 2–151. Live-Tooling Axial Locations screen: Polar Coordinates
• USE C CLAMP checkbox—engages the C Axis Clamp during the Hole
operation when this checkbox is selected.
• R—defines starting distance from the centerline.
• C (DEG)—defines the C offset value in degrees for the location, measured
counterclockwise from the home position.
• RETURN—identifies the level to which the tool should retract at the end of
the drill cycle. R Plane is the default.
• I PLANE—returns to the coordinate specified in the X/Z Start field.
• R PLANE—returns to the coordinate specified in the R Plane field.
