WinMax Lathe Conversational Part Programming v546CO Conversational Part Programming 2-55
• X BOTTOM (DIA) or (RAD)—identifies the part-relative coordinate for the
depth of the Groove. Change between Diameter and Radius by selecting the
D or R in the status bar. This dimension is shown as 3 in the following figure.
This field changes to Z BOTTOM when the Orientation is Face.

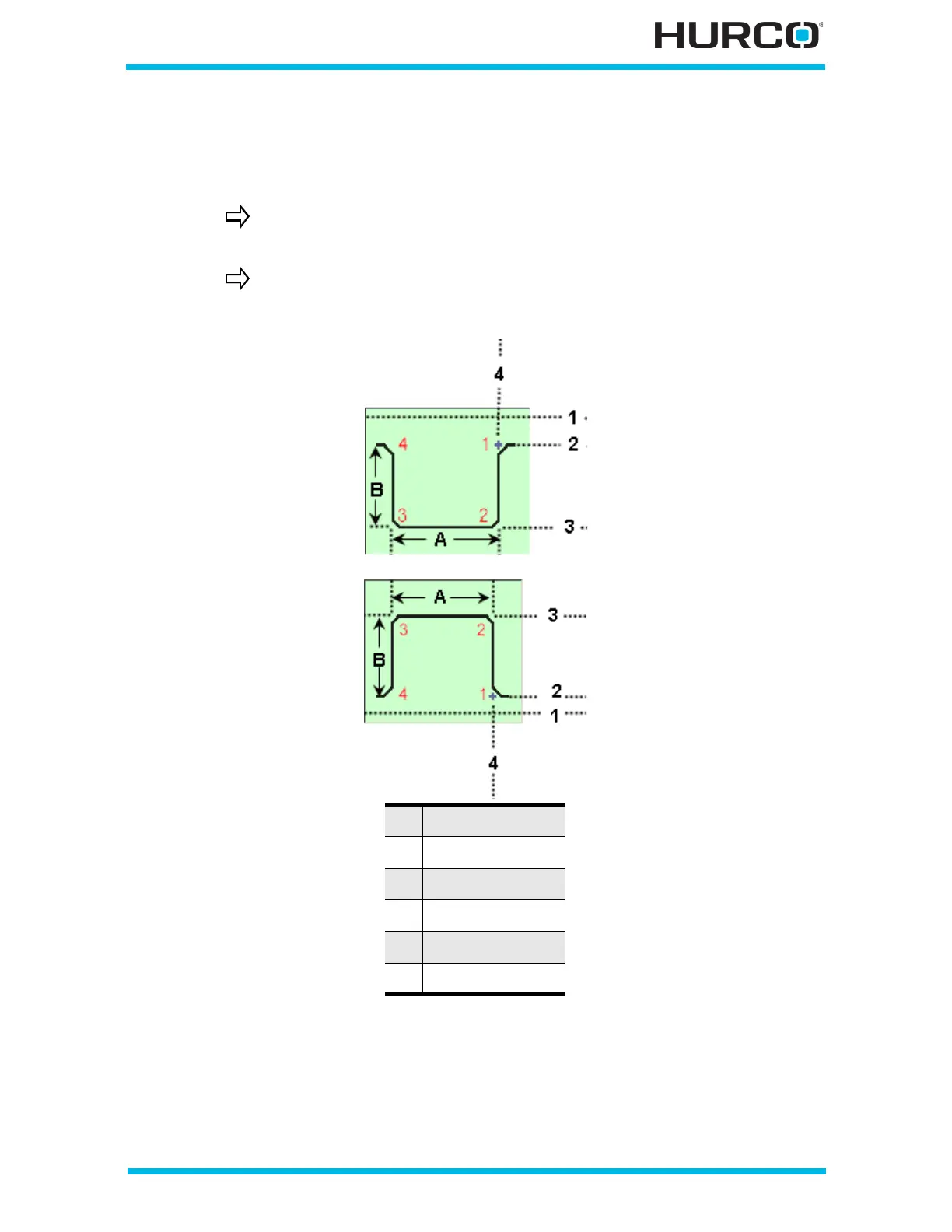

Figure 2–46. Groove Width and X Bottom dimensions (Outside and Inside Orientation)
The start point is indicated by a cross hair next to Corner 1 in the on-
screen graphic.
The depth of the groove is determined by subtracting X Bottom from
X Start. This dimension is shown as B in the following figure.
1 Part Zero X
2 X Start
3 X Bottom
4 Z Start
A Groove Width
B Groove Depth
