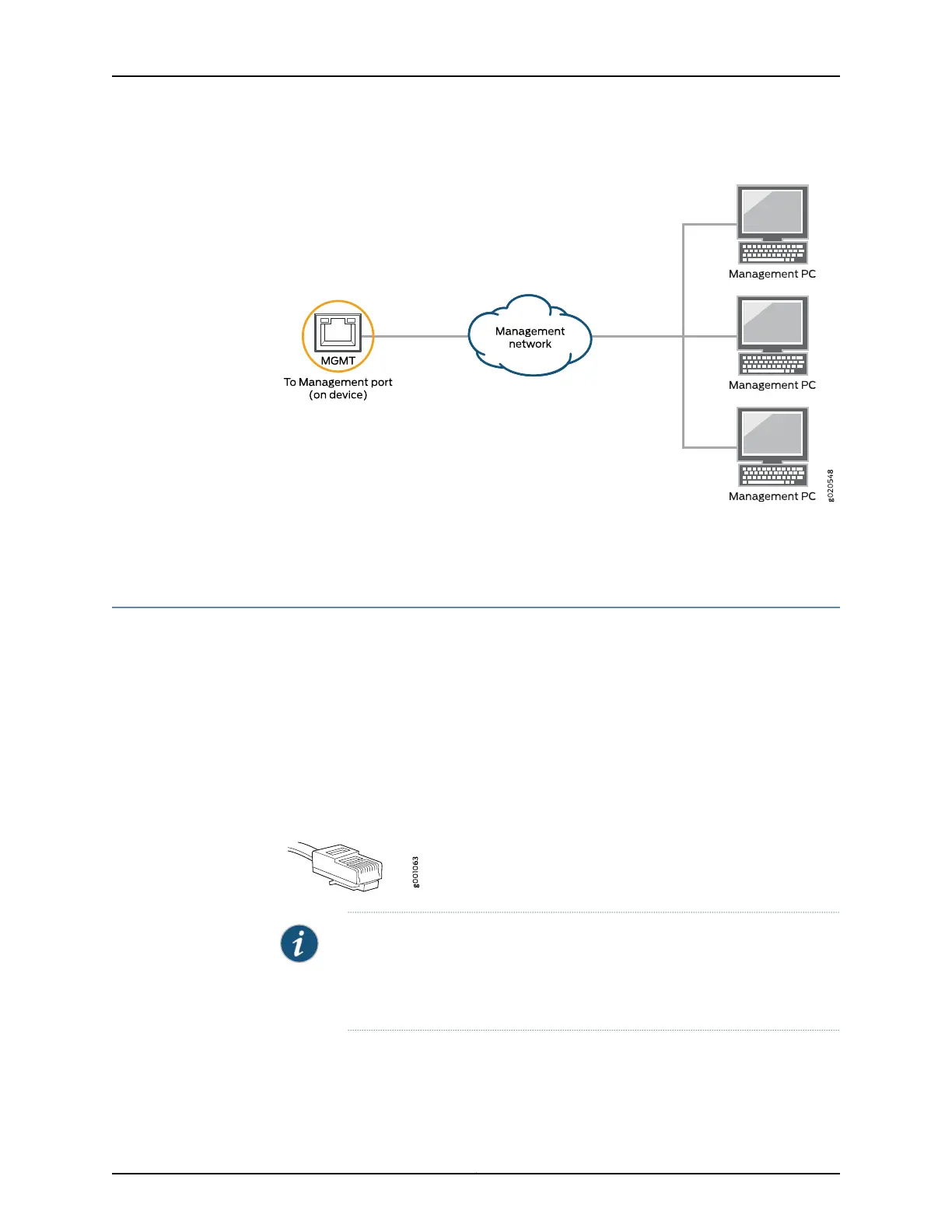

Figure 53: Connecting a Device to a Network for Out-of-Band Management
Related
Documentation
Connecting a Device to a Management Console by Using an RJ-45 Connector on page 194•
Connecting a Device to a Management Console by Using an RJ-45 Connector
You can configure and manage these devicesby using a dedicated management channel.
Each device has a console port to which you can connect an Ethernet cable with an RJ-45
connector. Use the console port to connect the device to the console server or
management console. The console port accepts a cable that has an RJ-45 connector.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. One
such cable and an RJ-45 to DB-9 serial port adapter are supplied with the device.
Figure 54 on page 194 shows the RJ-45 connector of the Ethernet cable.
Figure 54: RJ-45 Connector on an Ethernet Cable
NOTE: If your laptop or PC does not have a DB-9 male connector pin and you
want to connect your laptop or PC directly to the device, use a combination
of the RJ-45 to DB-9 female adapter supplied with the device and a USB to
DB-9 male adapter. You must provide the USB to DB-9 male adapter.
Copyright © 2017, Juniper Networks, Inc.194
EX4300 Switch Hardware Guide

Juniper EX4300 Specifications

General

Model	EX4300
Virtual Chassis	Yes, up to 10 members
Layer 3 Routing	Yes
10GBASE SFP+ Ports	4
Jumbo Frames	9216 bytes
MAC Address Table Size	32, 000
Operating System	Junos OS
Uplink Ports	4 x 10GBASE SFP+
Power Supply	AC or DC options
Operating Temperature	0°C to 45°C (32°F to 113°F)
Input Voltage	100-240V AC
Operating Relative Humidity	5 to 90% RH, non-condensing
Management Options	CLI, Web UI, Junos Space
Redundancy	Yes, power supply and fans
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Ports	24 or 48
