Juniper EX4300 Hardware Guide

To mount the switch on a wall:
1. Attach the wall-mount brackets to the sides of the chassis by using four of the
wall-mount bracket screws on each side (see the representation in
Figure 46 on page 175). Use the screwdriver to tighten the screws.

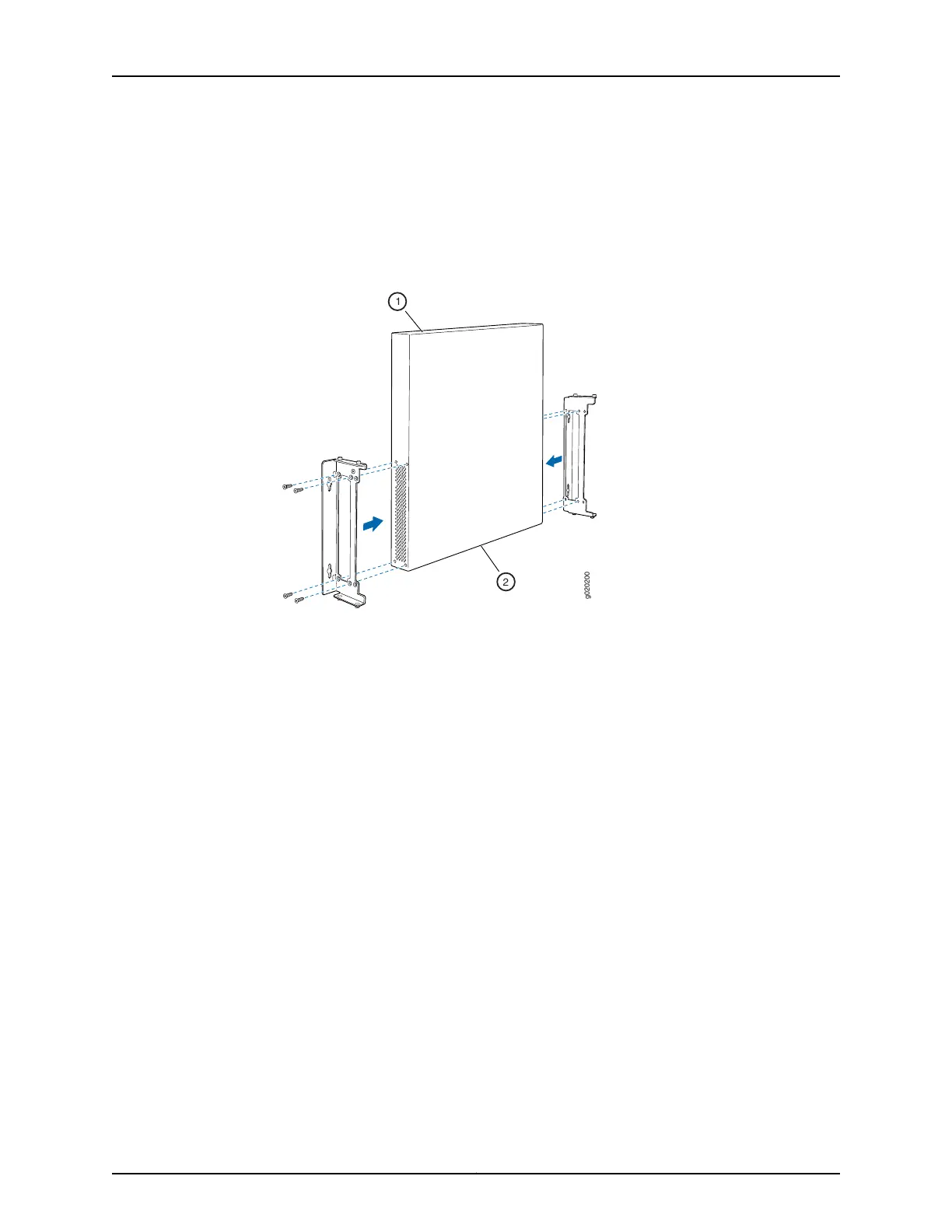

Figure 46: Attaching Wall-Mount Brackets to the Switch Chassis
g020200
1
2
2. If you are mounting two switches together, line the second switch on top of the first
and attach it to the mounting brackets by using two wall-mount bracket screws on
each side (see the representation in Figure 47 on page 176).
3. Insert the mounting screws in the wall. Insert the top pair of mounting screws
474.35 mm apart, and insert the second pair of mounting screws 151.81 mm directly
below the first set.
If the mounting screws are inserted in a wall board with no stud behind it, you must
use dry wall anchors rated to support 75 lb (34 kg). Insert the screws into wall studs
wherever possible to provide added support for the chassis.
Drive the screws only part way in, leaving about 1/4 in. (6 mm) distance between the
head of the screw and the wall. Use the screwdriver to drive the screws in.
4. Grasp each side of the switch or switches, lift the switch or switches, and hang the
brackets from the mounting screws (see the representation in Figure 47 on page 176).
175Copyright © 2017, Juniper Networks, Inc.
Chapter 11: Installing the Switch

Juniper EX4300 Specifications

General

Model	EX4300
Virtual Chassis	Yes, up to 10 members
Layer 3 Routing	Yes
10GBASE SFP+ Ports	4
Jumbo Frames	9216 bytes
MAC Address Table Size	32, 000
Operating System	Junos OS
Uplink Ports	4 x 10GBASE SFP+
Power Supply	AC or DC options
Operating Temperature	0°C to 45°C (32°F to 113°F)
Input Voltage	100-240V AC
Operating Relative Humidity	5 to 90% RH, non-condensing
Management Options	CLI, Web UI, Junos Space
Redundancy	Yes, power supply and fans
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Ports	24 or 48
