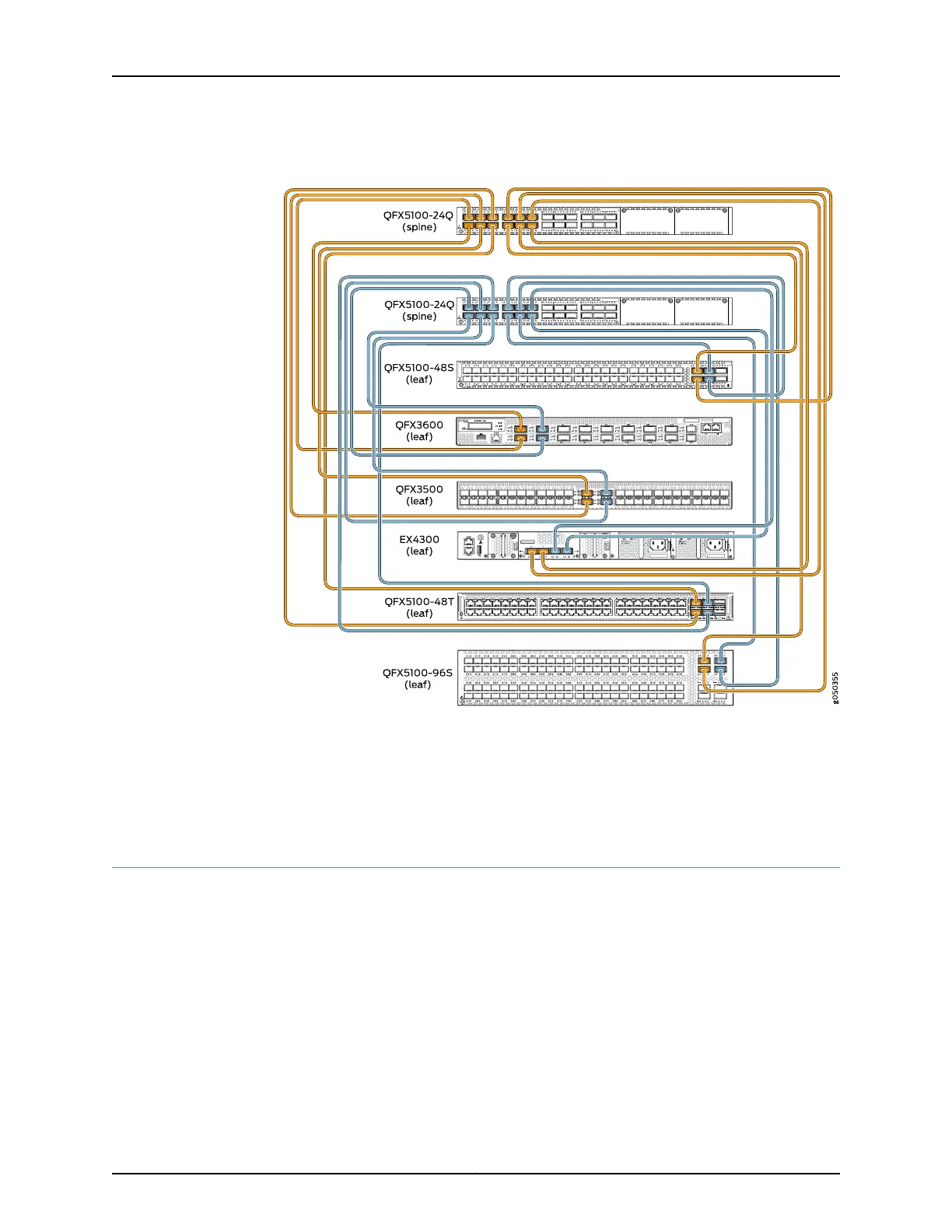

Figure 58: Mixed Mode VCF with an EX4300 Switch
Related
Documentation
Virtual Chassis Fabric Overview•
• Understanding Virtual Chassis Fabric Components
• Understanding EX4300 Virtual Chassis
Connecting QFX Series and EX Series Switches in a QFX Virtual Chassis
In a QFX Virtual Chassis, you can connect up to 10 standalone QFX5100, QFX3600,
QFX3500, and EX4300 switches into a QFX Series Virtual Chassis and manage the
interconnected switches as a single chassis. Unlike a Virtual Chassis Fabric (VCF), which
is cabled in a spine and leaf topology, the QFX Virtual Chassis is cabled in a ring topology.
For Virtual Chassis Fabric cabling examples, see Connecting a QFX5100 Device in a Virtual
Chassis Fabric. This topic describes how to cable QFX Series switches and EX4300
switches into a QFX Virtual Chassis.
•
Before You Start on page 200
•
Valid Configurations on page 200
•
Cabling QFX3500 Switches in a QFX Virtual Chassis on page 201
