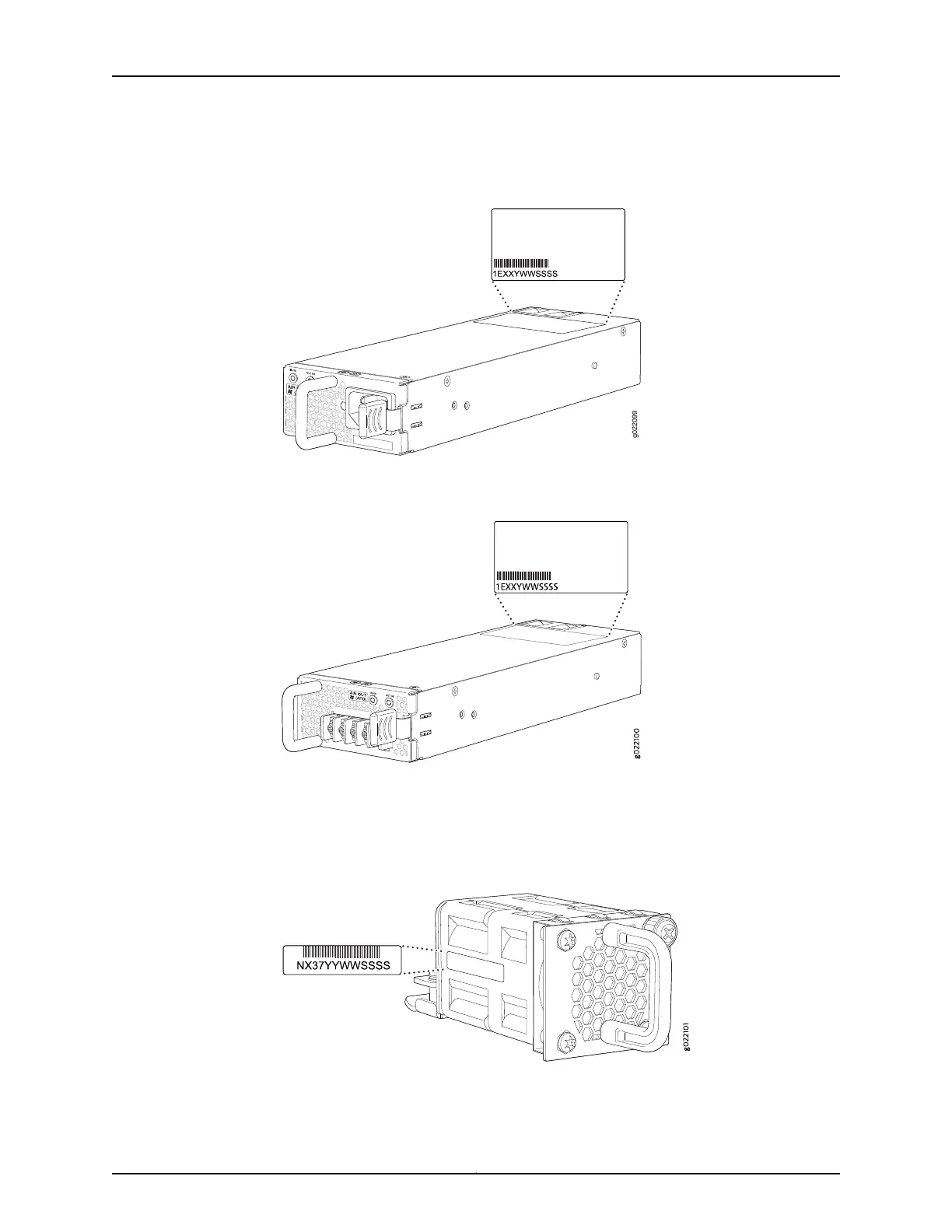

Figure 84: Location of the Serial Number ID Label on an AC Power Supply
Used in an EX4300 Switch
Figure 85: Location of the Serial Number ID Label on a DC Power Supply
Used in an EX4300 Switch
•
Fan module—The serial number ID label is on the front bottom lip of the fan module.
Figure 86 on page 260 shows the location of the serial number ID label. See “Removing
a Fan Module from an EX4300 Switch” on page 231.
Figure86: Location of the Serial Number ID Label on the Fan ModuleUsed
in an EX4300 Switch
Copyright © 2017, Juniper Networks, Inc.260
EX4300 Switch Hardware Guide
