Juniper EX4300 Hardware Guide

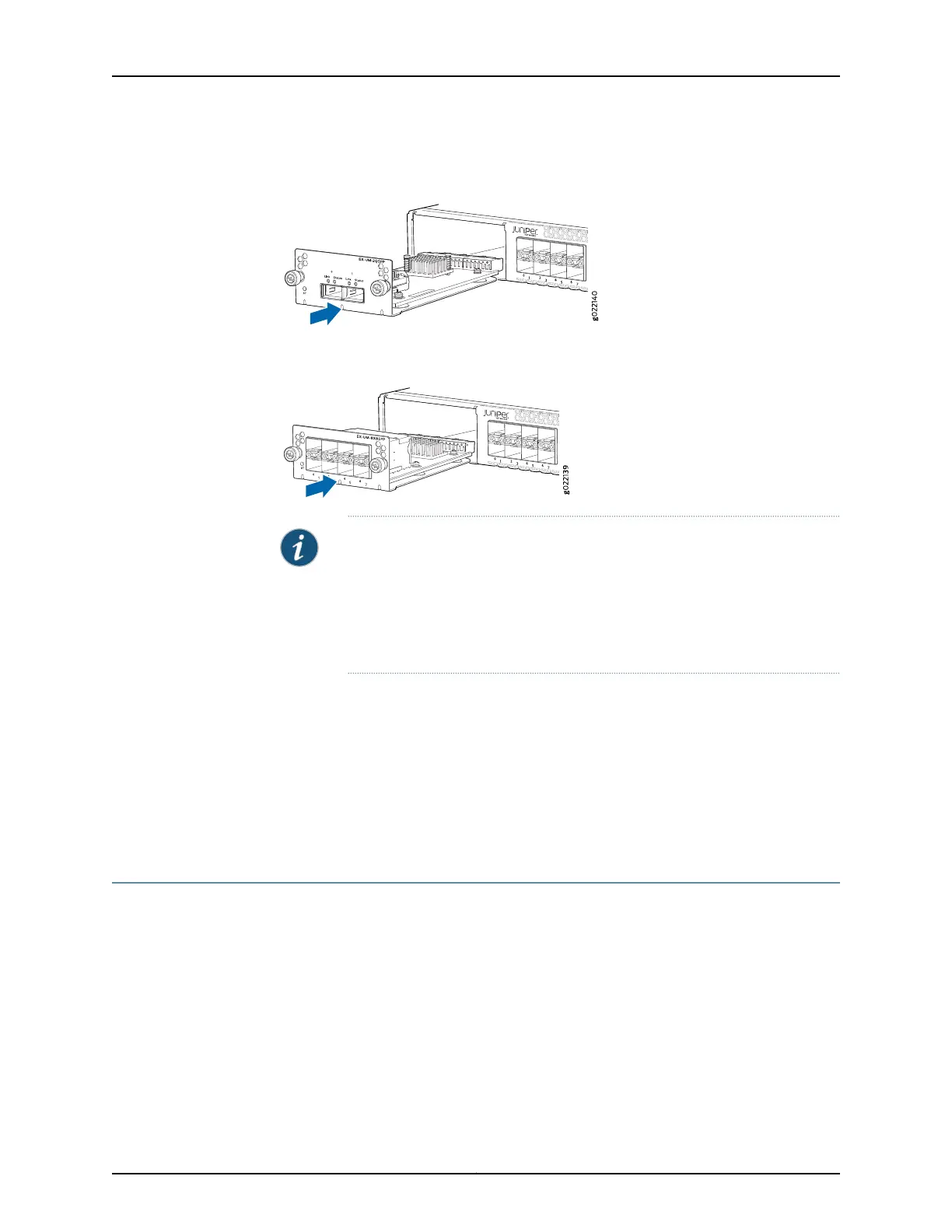

Figure 74: Installing a 2-Port QSFP+ Uplink Module in a 32-Port EX4300
Switch
Figure 75: Installing an 8-Port SFP+ Uplink Module in a 32-Port EX4300
Switch
NOTE: If you have a Juniper J-Care service contract, register any addition,
change, or upgrade of hardware components at
https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure
to do so can result in significant delays if you need replacement parts. This
note does not apply if you replace existing components with the same type
of component.
Related
Documentation
Removing an Uplink Module from an EX4300 Switch on page 243•
• Installing a Transceiver on page 247
• Installing and Removing EX4300 Switch Hardware Components on page 176
• Configuring Gigabit Ethernet Interfaces (CLI Procedure)
• EX4300 Switches Hardware Overview on page 3
Removing an Uplink Module from an EX4300 Switch
The uplink module in EX4300 switches is hot-removable and hot-insertable
field-replaceable unit (FRU): You can remove and replace it without powering off the
switch or disrupting switch functions.
Before you begin removing an uplink module from the switch:
•
Ensure that you have taken the necessary precautions to prevent electrostatic discharge
(ESD) damage (see “Prevention of Electrostatic Discharge Damage” on page 313).
243Copyright © 2017, Juniper Networks, Inc.
Chapter 17: Replacing Uplink Module

Juniper EX4300 Specifications

General

Model	EX4300
Virtual Chassis	Yes, up to 10 members
Layer 3 Routing	Yes
10GBASE SFP+ Ports	4
Jumbo Frames	9216 bytes
MAC Address Table Size	32, 000
Operating System	Junos OS
Uplink Ports	4 x 10GBASE SFP+
Power Supply	AC or DC options
Operating Temperature	0°C to 45°C (32°F to 113°F)
Input Voltage	100-240V AC
Operating Relative Humidity	5 to 90% RH, non-condensing
Management Options	CLI, Web UI, Junos Space
Redundancy	Yes, power supply and fans
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Ports	24 or 48
