Kyocera FS-C8600DN - Page 51

2MN/2N1
1-2-29
4. Remove two screws.
5. Unhook three hooks and then remove
the Left upper cover.

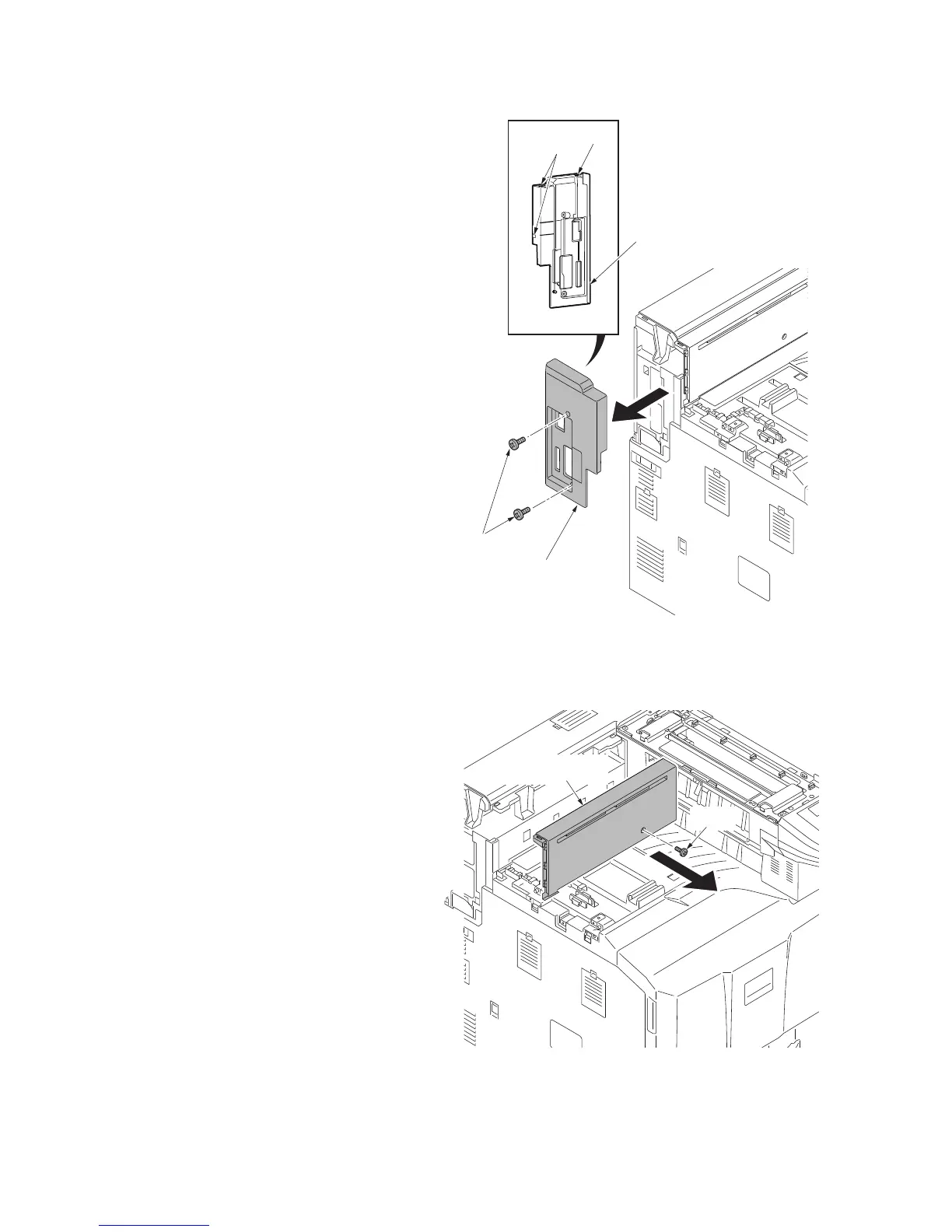

Figure 1-2-36
6. Remove screw and then remove the
rear tray cover.
Figure 1-2-37
Hook
Hooks
Left upper cover
Left upper cover
Screws
Rear tray cover
Screw
