2MN/2N1
1-2-30
7. Remove seven screws and then
remove the rear upper cover.

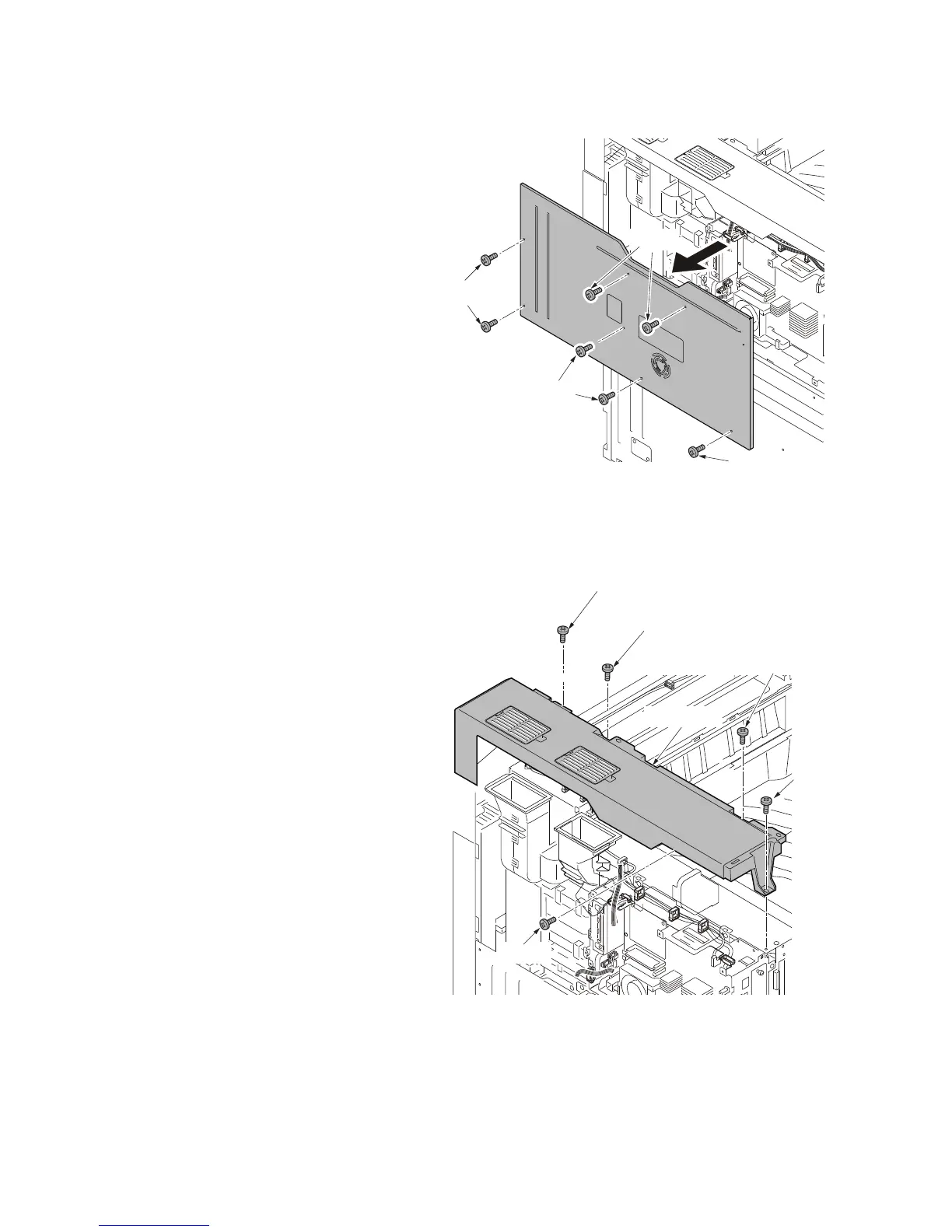

Figure 1-2-38
8. Remove five screws and then remove
the Top cover.
Figure 1-2-39
Screws
Screws
Screws
Screw
Top cover
Screw
Screw
Screw
Screw
Screw
