Model 831 Manual Overall Tab 5-21
Exceedances
For a detailed description of noise
events based on threshold
exceedances, see "Triggers Tab" on
page 4-11.

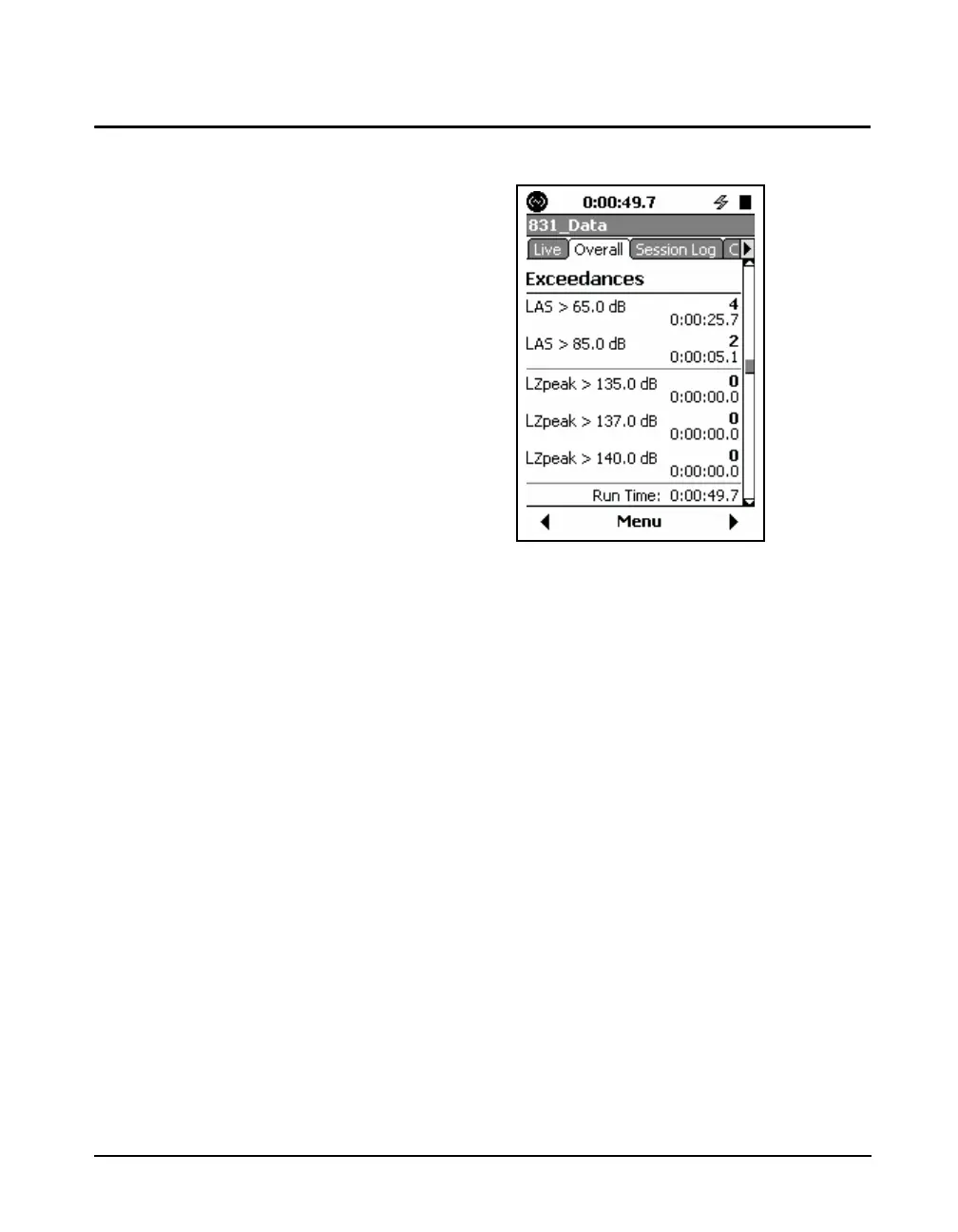

FIGURE 5-21 Overall Tab: Exceedances
The Exceedences page shows the number of exceedances
that have occurred during the measurement and the total
duration of exceedances. Exceedances are shown for two
threshold levels of the SPL detector and three for the peak
detector.
