14-14 Viewing and Analyzing Results Model 831 Manual
Harmonic Cursors
The number of harmonic cursors can be set from zero to
twenty-four in increments of four using the 8 and 2
keys. Depending on the frequency of the primary cursor, all
of the harmonic cursors may not be shown. For example,
with a frequency span of 20 kHz and a fundamental
frequency of 5 kHz only three harmonic cursors are within

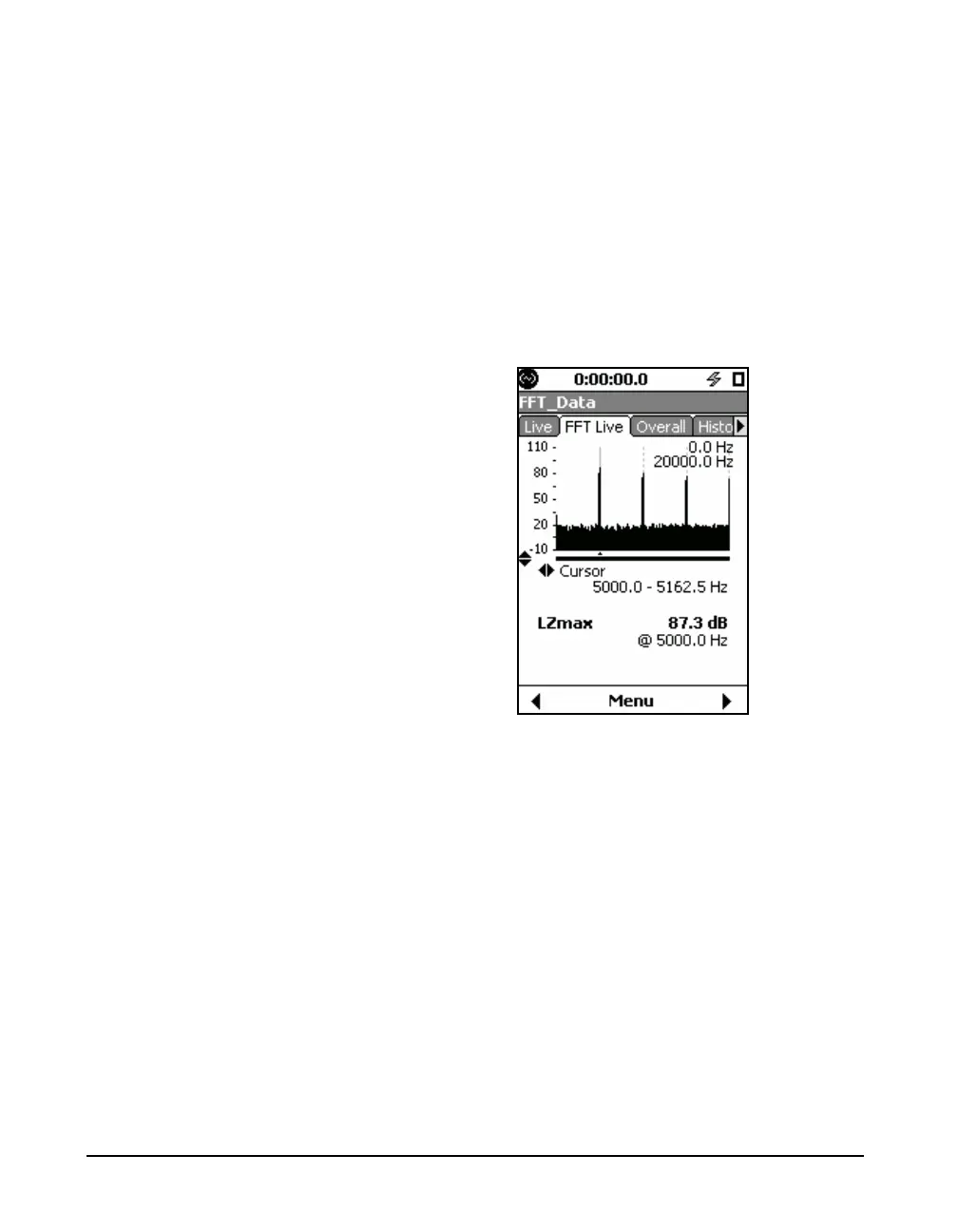

the frequency range and shown. FIGURE 14-14 illustrates
this example.
FIGURE 14-14 Harmonic Cursors
