20-16 Status Tab Model 831 Manual
Analog

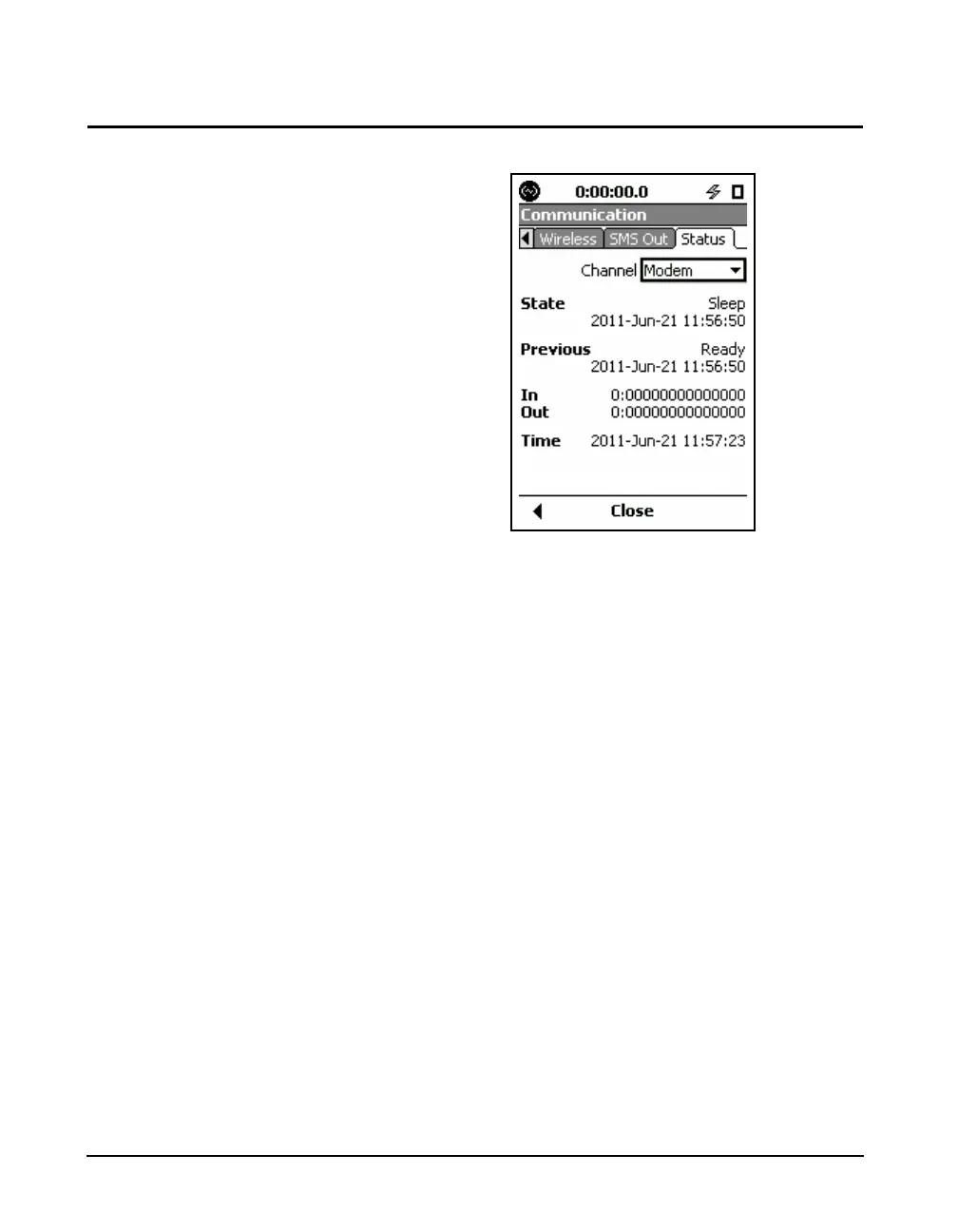

FIGURE 20-19 Status: Analog Modem
State
Note: A list of the most common
State values is presented in the
section “States” on page 20-19.
Displays the current state that the device is in along with a
time stamp signifying when the device entered that state. A
Ready state signifies that the device has been initialized and
is ready for use.
Previous
Shows the previous most recent state the device was in along
with the time stamp that the state was entered. This is useful
as it enable the use to more easily follow the progress of the
device as it moves through all possible states.
In
A representation of the last data packet received on this data
channel
Out
A representation of the last data packet sent on this data
channel
Time
Displays the current date and time of the unit
