5-6 Live Tab Model 831 Manual
Cursor
Use the 4 and 6 keys to move the cursor left and right,
respectively.
1/3 Octave Band Analyzer (Optional)
The 1/3 Octave Band Analyzer
display appears only when the
instrument is loaded with the
optional 831-OB3 firmware.

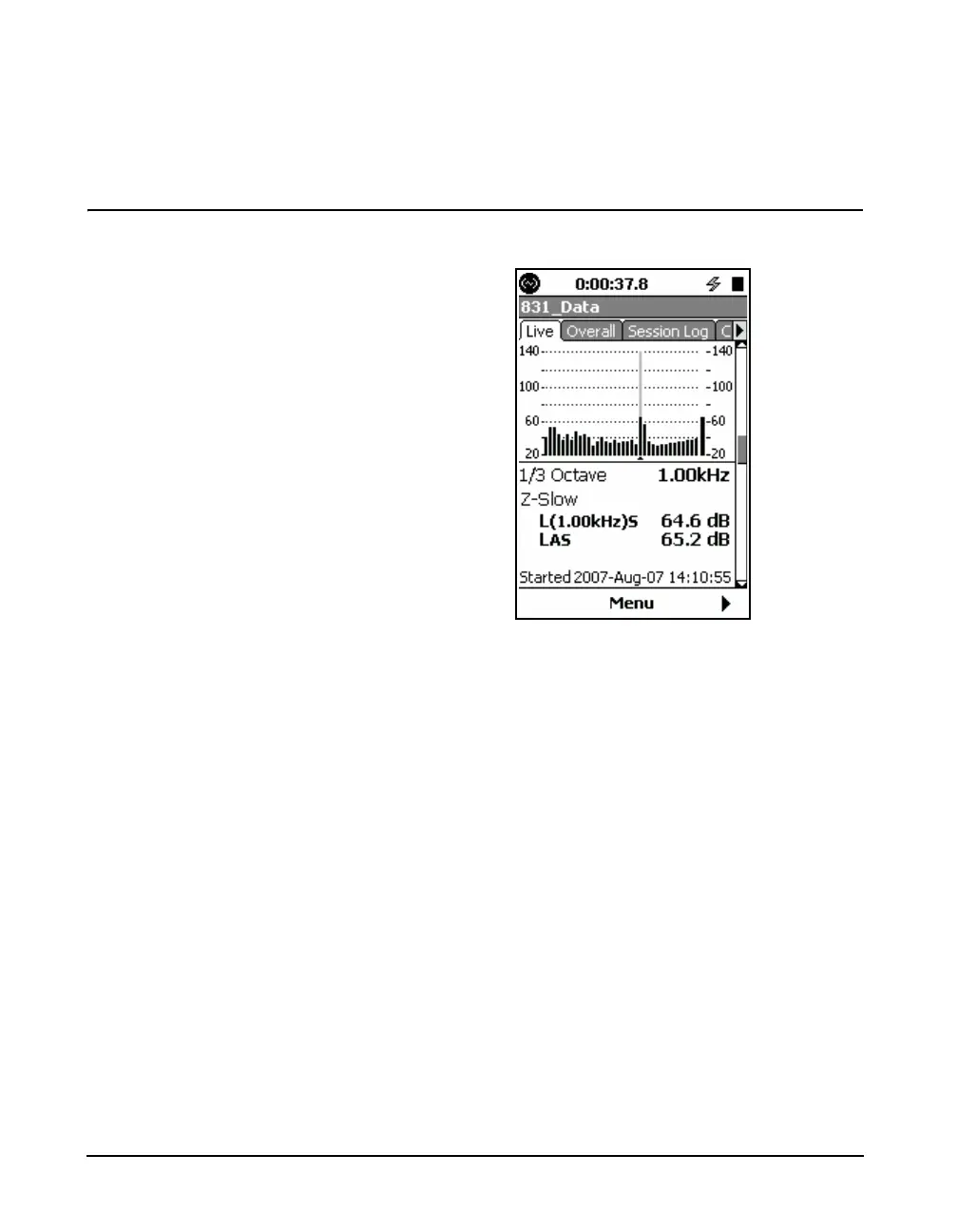

FIGURE 5-6 Live Tab: 1/3 Octave Spectrum
Note that the graph scaling can be
modified as described in section
"Adjust Graph Scale" on page 5-29
and the display normalized to
another spectrum, as described in
section "View Spectrum Normalized"
on page 5-30.
The 1/3 Octave page is similar to FIGURE 5-5. The graph
and data are presented for 1/3 octave bands.
