5-14 Overall Tab Model 831 Manual
Overall Large Digit Sound Level

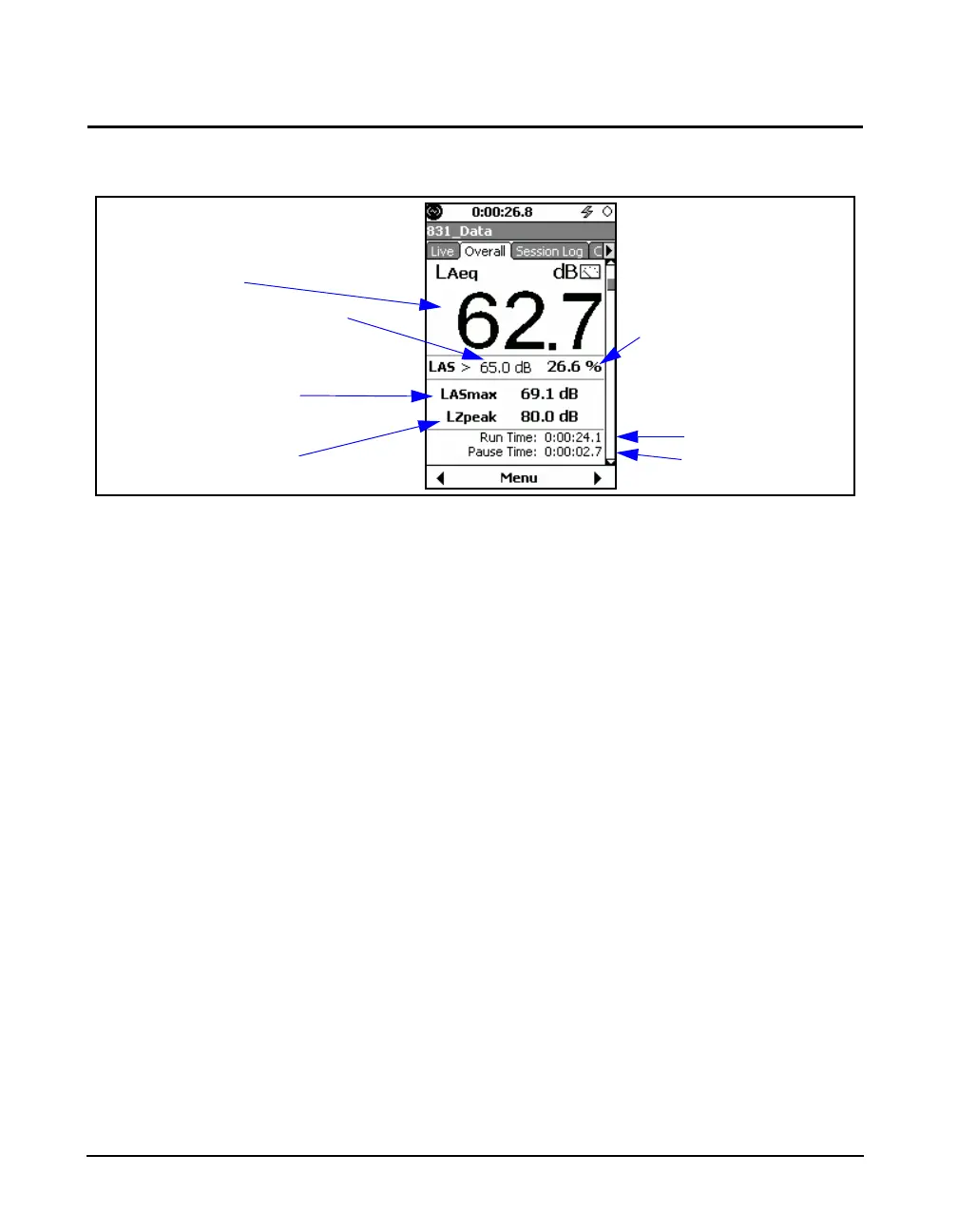

FIGURE 5-14 Overall Tab: Large Digit Display
The graph scaling can be modified
as described in section "Adjust
Graph Scale" on page 5-29.
This page presents a data-compressed profile of the sound
level for the run time of the measurement. The large digit
display is updated along with the calculation of the average
sound level approximately four times per second. The
process is continuous throughout the run time. The Pause
Time indicator shows the amount of time the current
measurement was paused.
Leq using Frequency
Weighting and Detector
from Setup
SPL1 Trigger Level
Maximum Level using
Frequency Weighting and
Detector from Setup
Percent Of Measurement
Time Above SPL1 Trigger
Level
Run Time
Peak Level using Frequency
Weighting from Setup
Pause Time
