17 Function library
17.1 Function blocks | L_DFRFG_1
1353
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
The acceleration calculated from the acceleration/deceleration time (C01076/1
) is a maximum
acceleration that will not be reached if the input speed is reduced and the FB has to reach its target
with a too high offset.

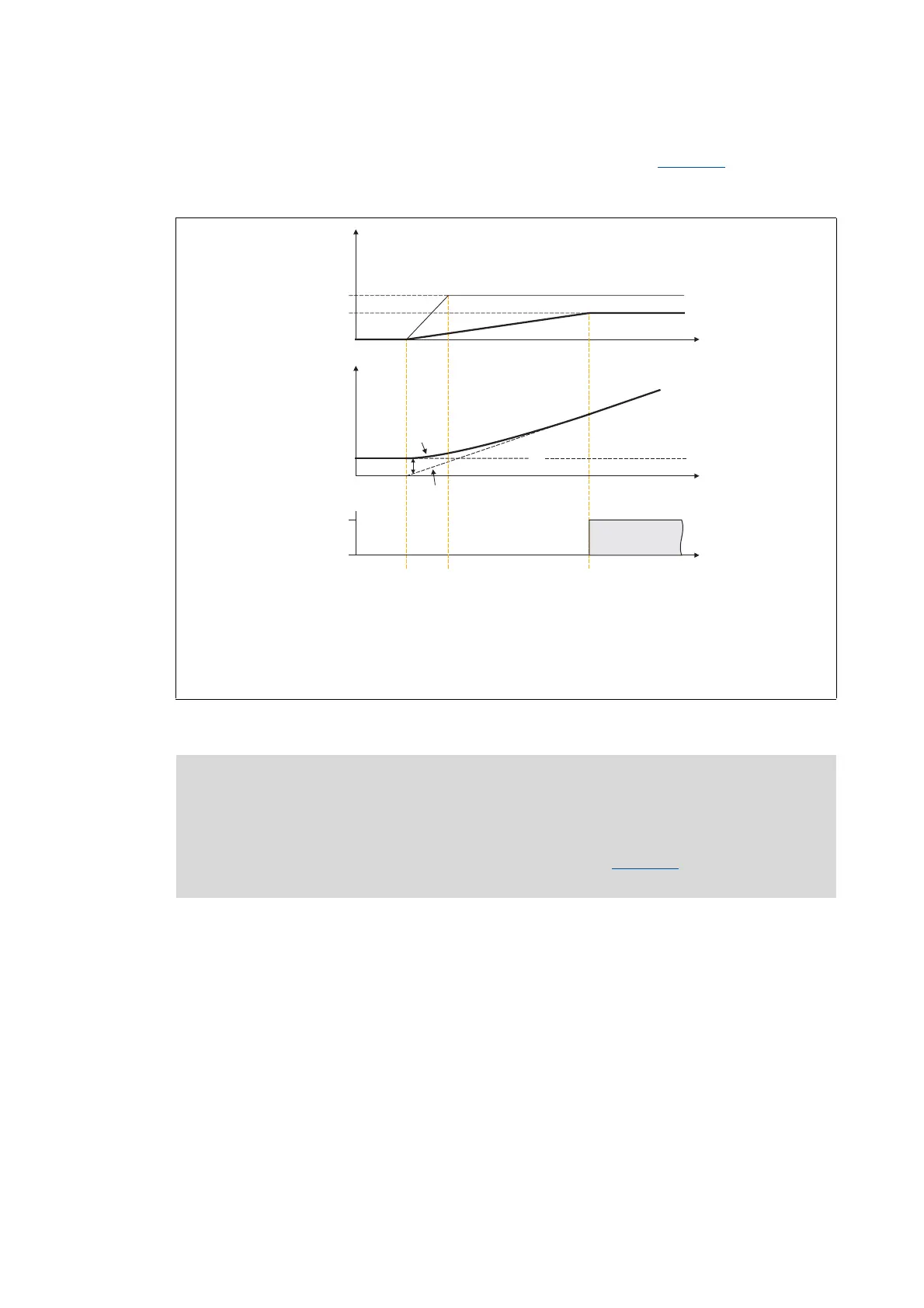

[17-34] Example 2: With offset selection and reduced input speed
 Difference between setpoint angle and actual angle (ϕ
DIFF
)
 Offset [inc]
 Reduced input speed
t
0
= touch probe event
t
1
= reaching synchronicity at original input speed
t
2
= synchronicity reached
j
t
TRUE
FALSE
bSync
t
v
t
j
SET
j
ACT

t
0
t
2

t
1
nIn_v

 Note!
With a very low input speed, the acceleration can also get negative which causes the
slave drive to change its direction of rotation.
In order to prevent a change of the direction of rotation, C01069/1
serves to select a
permanent direction of rotation.
