17.1 Function blocks | L_DFSET_1
1363
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

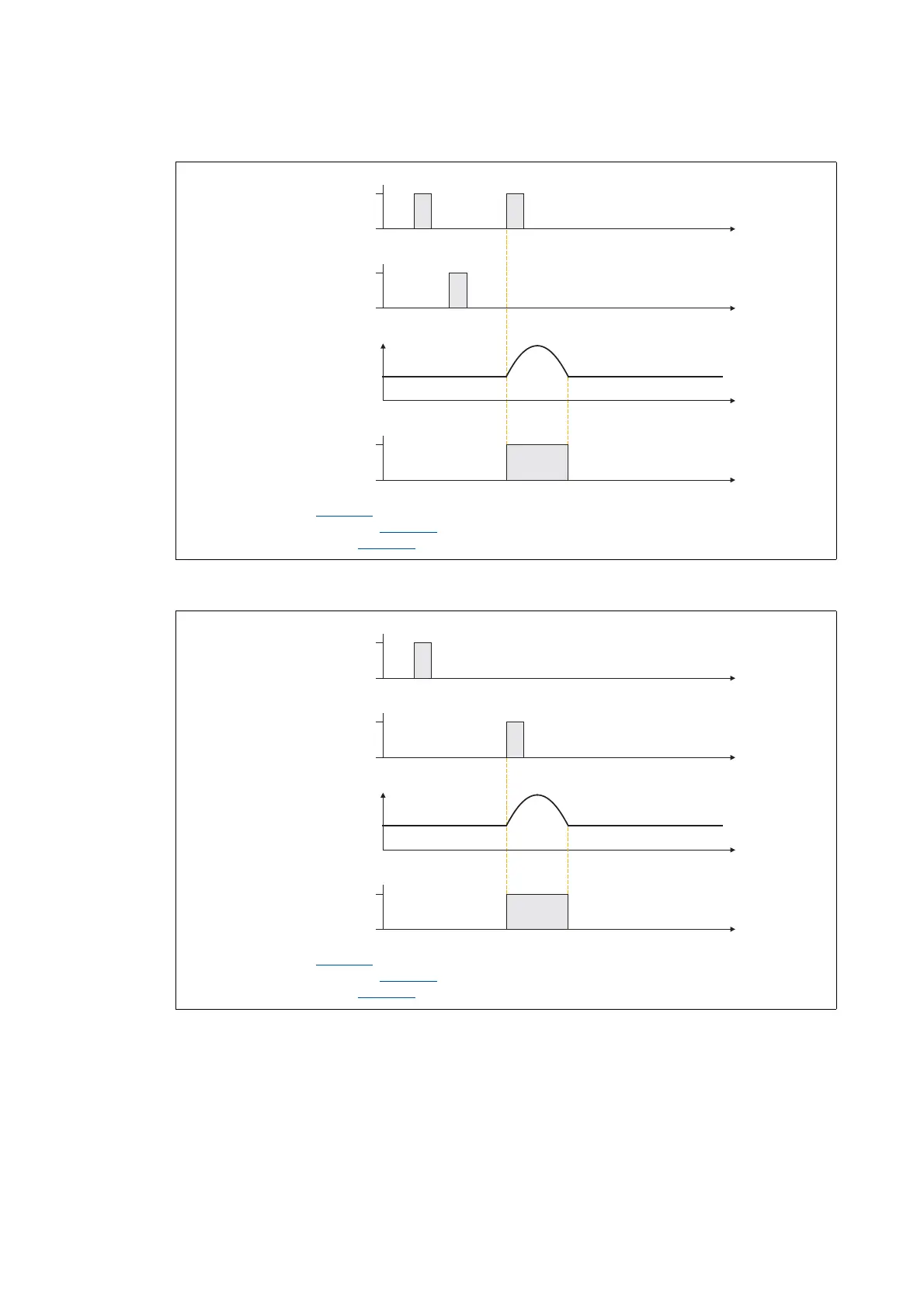

[17-37] Synchronisation process in the modes 1, 2, 10, 11, 12
[17-38] Synchronisation process in mode 13
Synchronisation mode (C01075/1) = 1, 2, 10, 11, 12
Divisor for actual value zero pulse (C01074/1
) = 0 or 1
Divisor for setpoint zero pulse (C01074/2
) = 0 or 1
TRUE
FALSE
bAck
t
v
t
t
TRUE
FALSE
bSetTPReceived
t
TRUE
FALSE
bActTPReceived
Synchronisation mode (C01075/1) = 13
Divisor for actual value zero pulse (C01074/1
) = 0 or 1
Divisor for setpoint zero pulse (C01074/2
) = 0 or 1
TRUE
FALSE
bAck
t
v
t
t
TRUE
FALSE
bSetTPReceived
t
TRUE
FALSE
bActTPReceived
