5 Motor control (MCTRL)
5.11 Encoder/feedback system
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

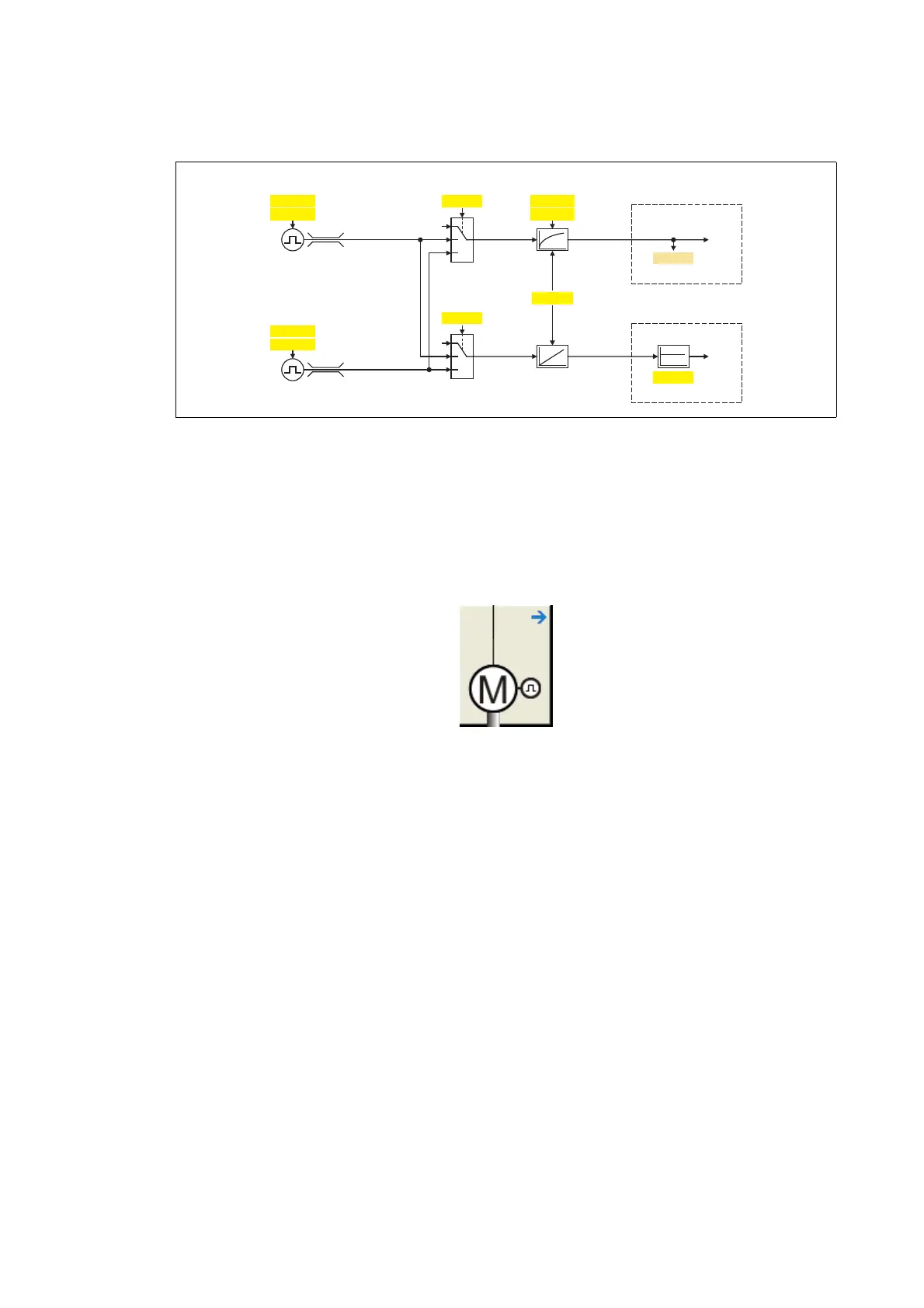

[5-29] Signal flow - encoder interface
 How to get to the parameterisation dialog of the encoder/feedback system:
1. »Engineer« Go to the Project view and select the 8400 HighLine inverter.
2. Select the Application parameters tab from the Workspace.
3. Go to the Overview dialog level and click the following button:
4. Go to the Overview  Motor data dialog level and click the Encoder/Feedback system...
button.
1
0
2
C00495
FreqIn12
C00497/1
C00497/2
1
0
2
C00490
FreqIn67
C00051
C00254
C00420/1
C00425/1
C00420/2
C00425/2
200 kHz
10 kHz
C00496
Speed encoder
selection
Encoder filter time
FreqIn12
FreqIn67
Encoder number of incr.
Actual speed value
Speed controller/
slip regulator
Position encoder
selection
Position controller
Kp position controller
Encoder sampling time
Encoder number of incr.
Encoder sampling time
Encoder evaluation procedure
